HELIOS SERIES
WIDE BODYWRAP

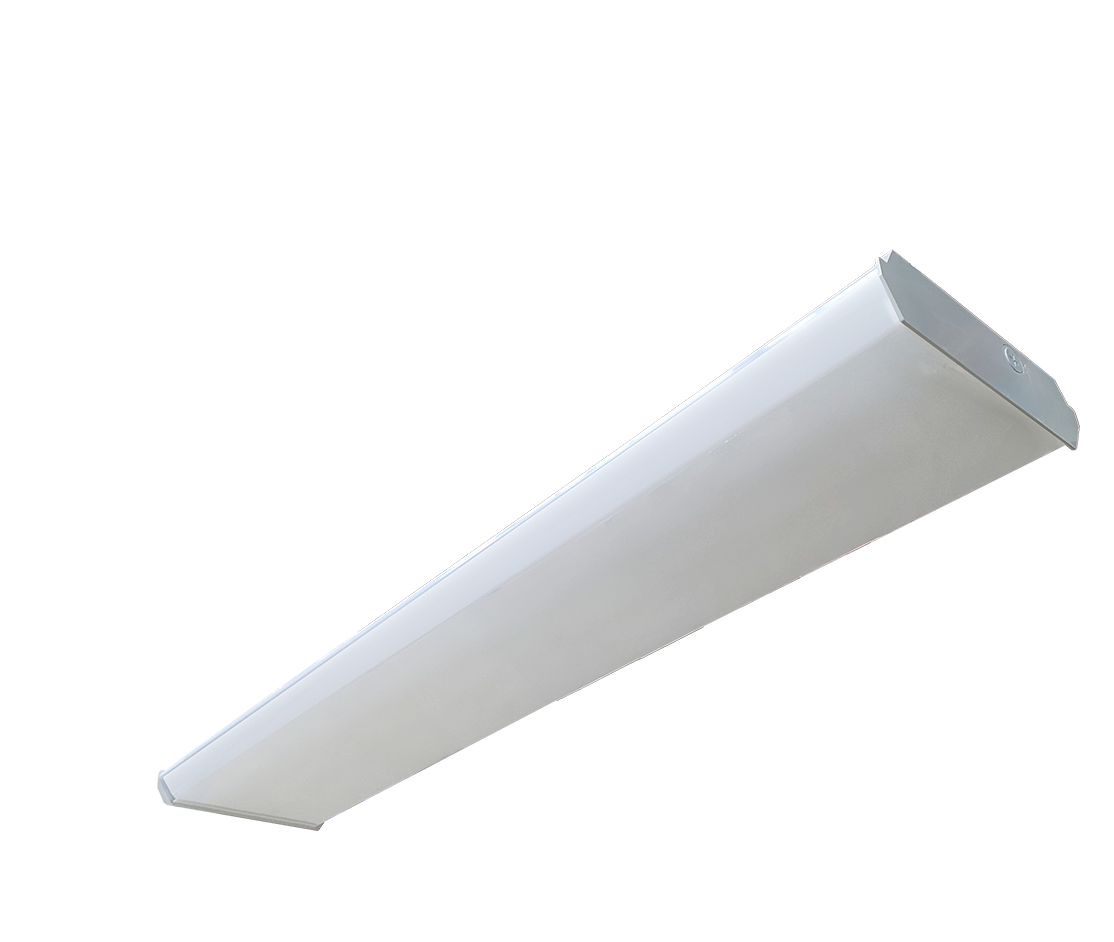

The Helios Series Wide Body LED Wraparound fixture is designed to provide the widest distribution of light across a space while easily covering up existing blemishes on the ceiling left behind by the older fixtures they’re replacing.

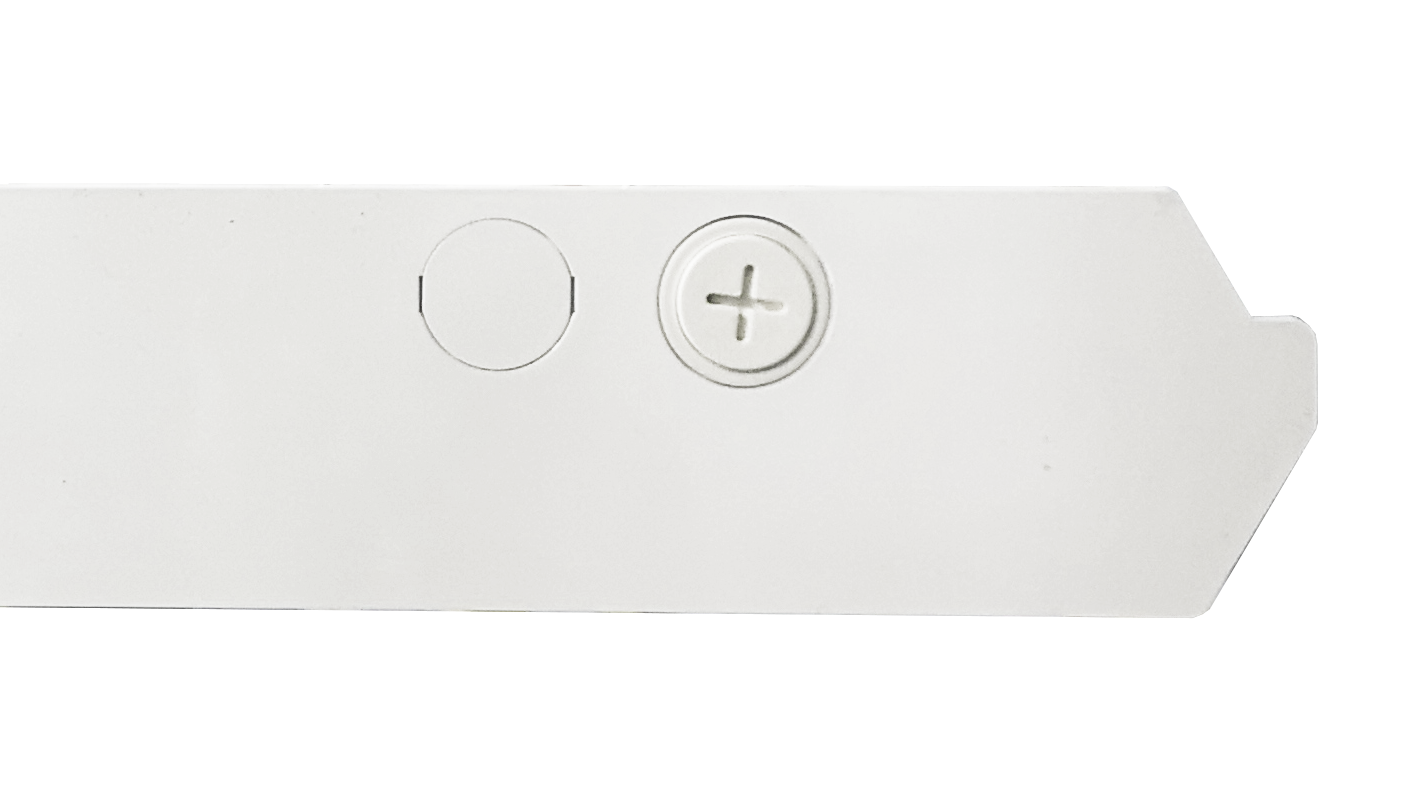

PREMIUM FRICTION-FIT re-installable 3/4” knockouts, ready to accommodate your connections.

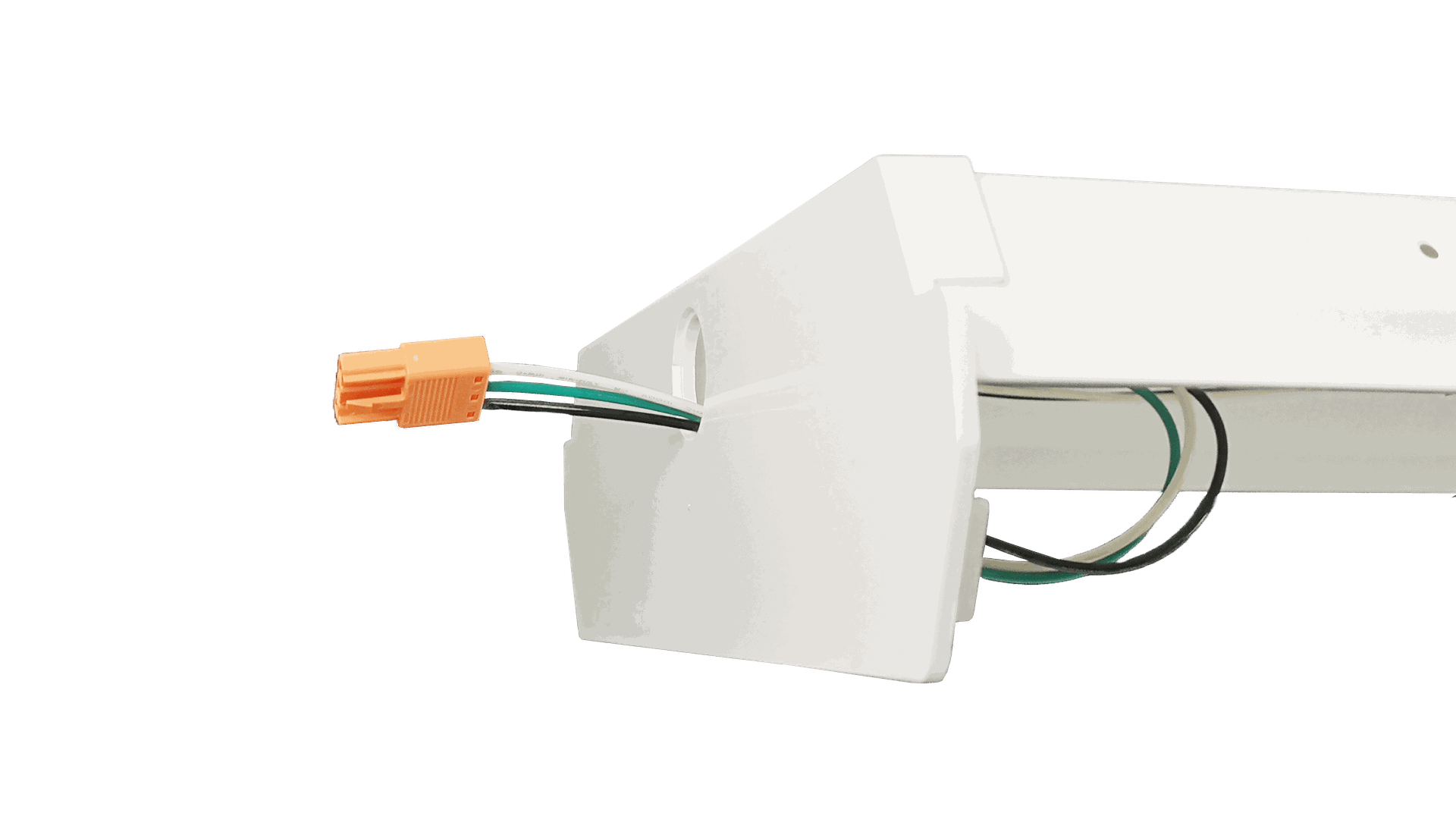

DUAL-SIDED QUICK-CONNECTS for tandem row-mount installations, limited only to the ampacity of your circuit.

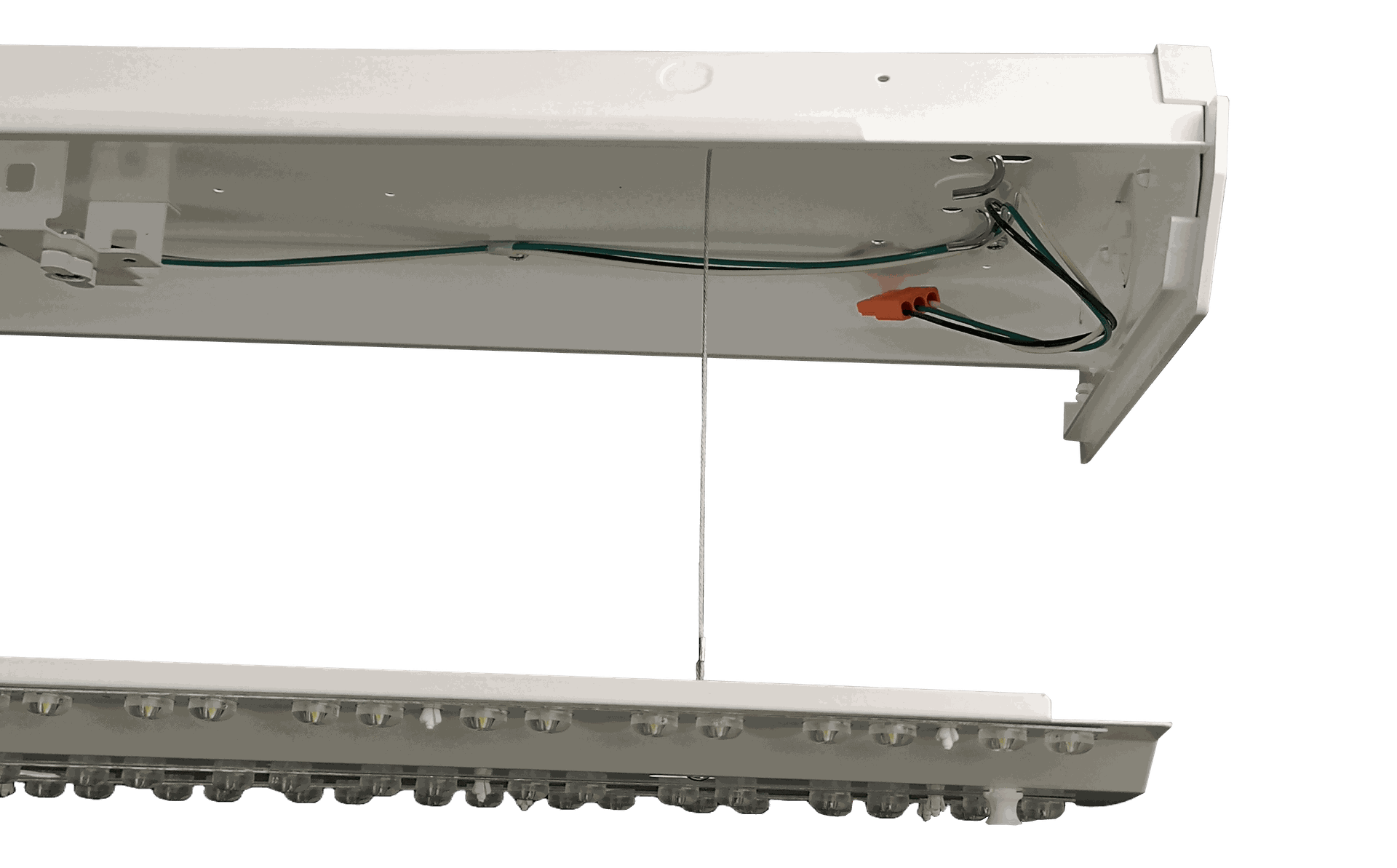

Retention cable holds the light engine in place, ENABLING QUICK AND EASY CONNECTIONS. No need for a second pair of hands!

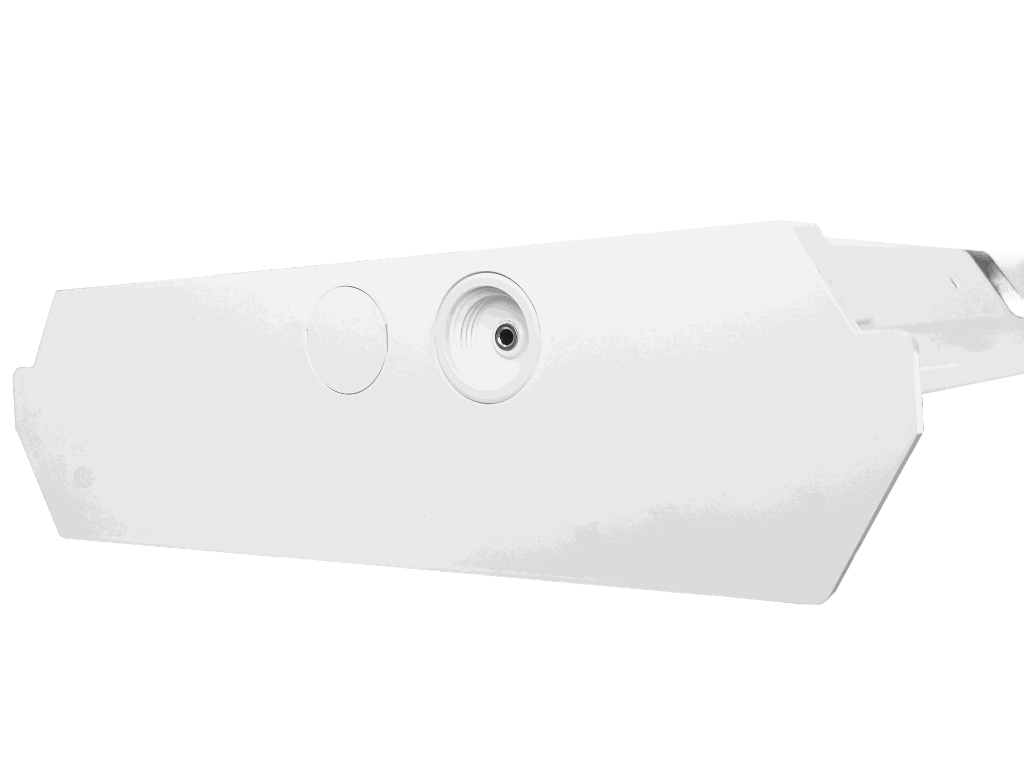

End-Mount 3.5mm jack socket built-in, making it FUTURE-PROOF READY for wireless sensors used in Bluetooth® Networked Lighting Control (NLC) systems.
PROGRAMMABLE BEHIND-THE-LENS Microwave Sensor model available
(Order# R38022).

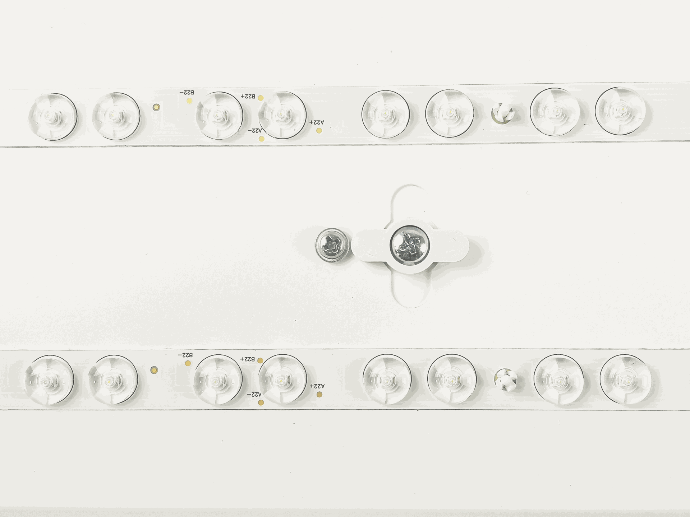

Details Matter: Easy tabs securing the light engine can be turned for FUMBLE-FREE ACCESS to the wiring compartment.

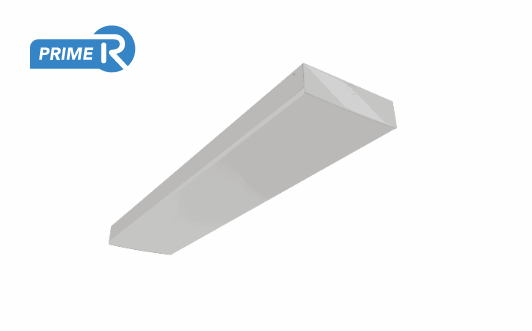

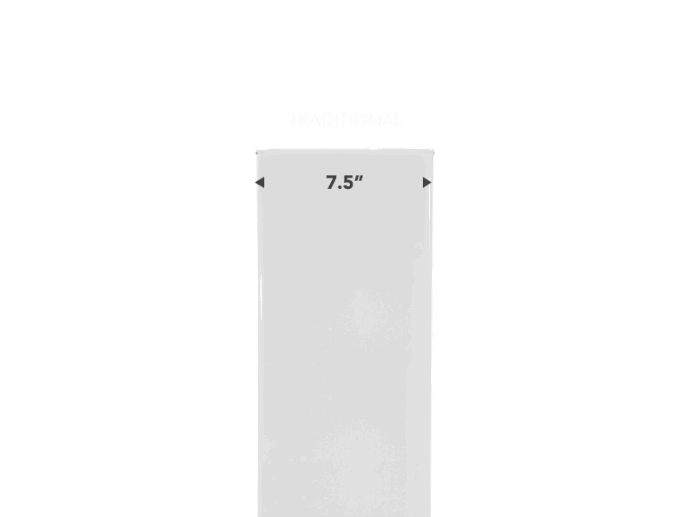

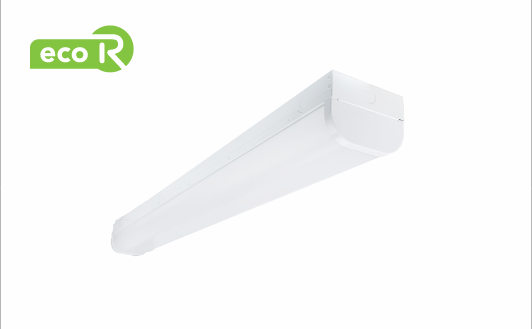

TRADITIONAL
7.5" Wide
4.0 ft length
Multi Power
22 / 28 / 34 / 44W
Voltage
120-347V
Efficacy
Up to 130 lm/W
Multi CCT
3000 / 4000 / 5000K
Sensor Option
Built in Microwave sensor
EXPLORE PRODUCT

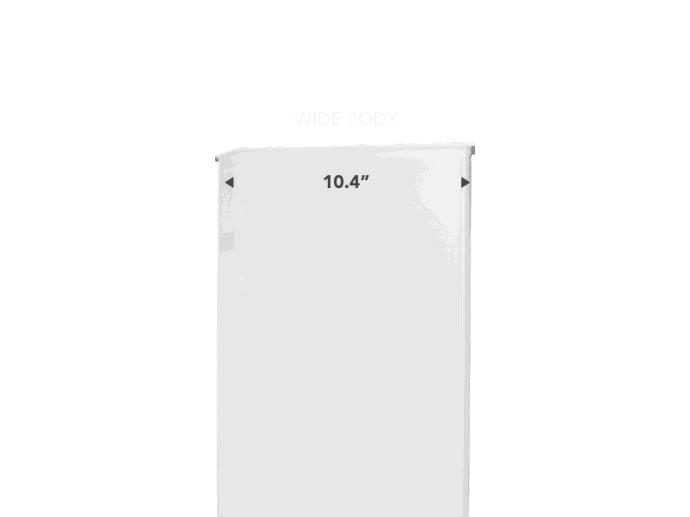

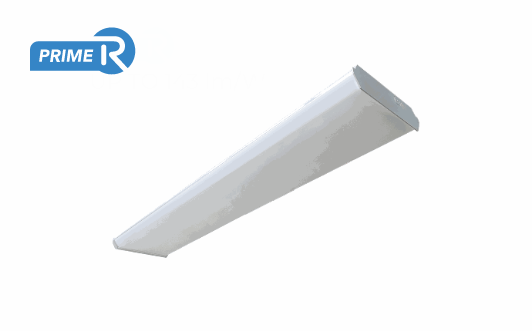

WIDE BODY
10.4" Wide
4.0 ft length
Multi Power
30 / 40 / 50 / 60W
Voltage
120-347V
Efficacy
Up to 143 lm/W
Multi CCT
3000 / 4000 / 5000K
Sensor Option
Built in Microwave sensor
EXPLORE PRODUCT

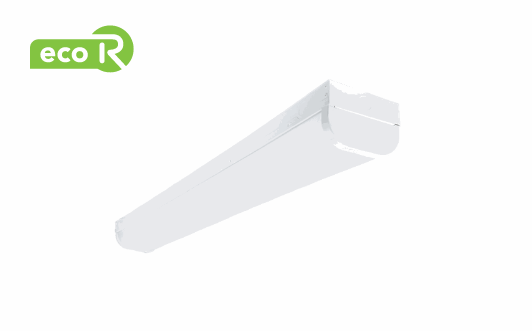

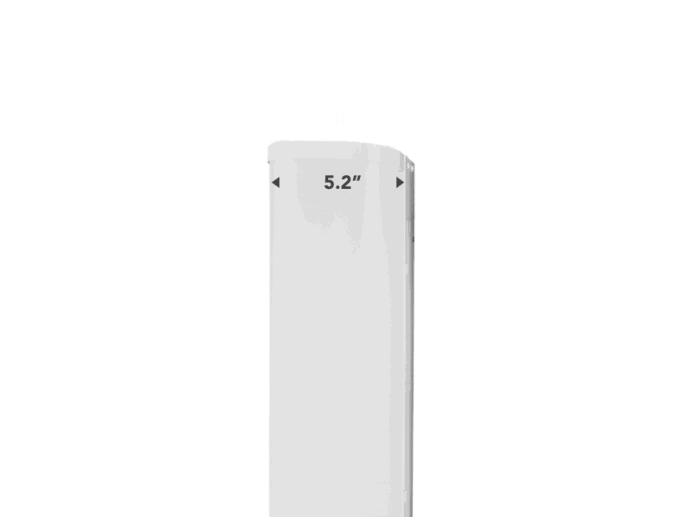

SLIM
5.2" Wide
4.0 ft length
Multi Power
30 / 40 / 50W
Voltage
120-347V
Efficacy
Up to 148 lm/W
Multi CCT
3000 / 4000 / 5000K
Sensor Option
Built in Microwave sensor
EXPLORE PRODUCT
SLIM
5.2" Wide
2.0 ft Wrap (around fixture *)
Wattage Options
15W, 20W, 25W
Voltage Range
120-347V AC
Efficiency
≥ 130 lm/W
Color Temperatures
3000K, 4000K, 5000K
* Built in sensor option available
EXPLORE PRODUCT
WIDE BODY
10.4" Wide
4.0 ft Wrap (around fixture *)
Wattage Options
30W, 40W, 50W, 60W
Voltage Range
120-347V AC
Efficiency
≥ 143 lm/W
Color Temperatures
3000K, 4000K, 5000K
* Remote Required for sensor settings
EXPLORE PRODUCT
TRADITIONAL
7.5" Wide
2.0 ft Wrap (around fixture *)
Wattage Options
12W, 15W, 18W, 22W
Voltage Range
120-347V AC
Efficiency
≥ 135 lm/W
Color Temperatures
3000K, 4000K, 5000K
* Built in sensor option available
EXPLORE PRODUCT

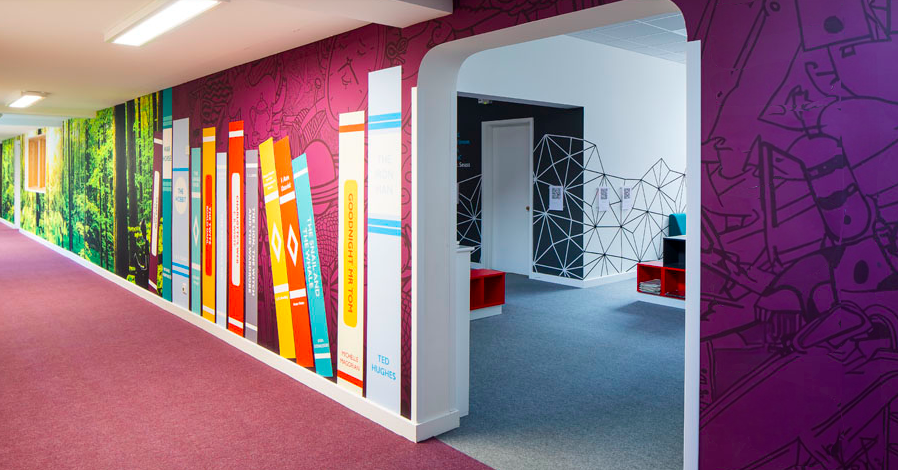

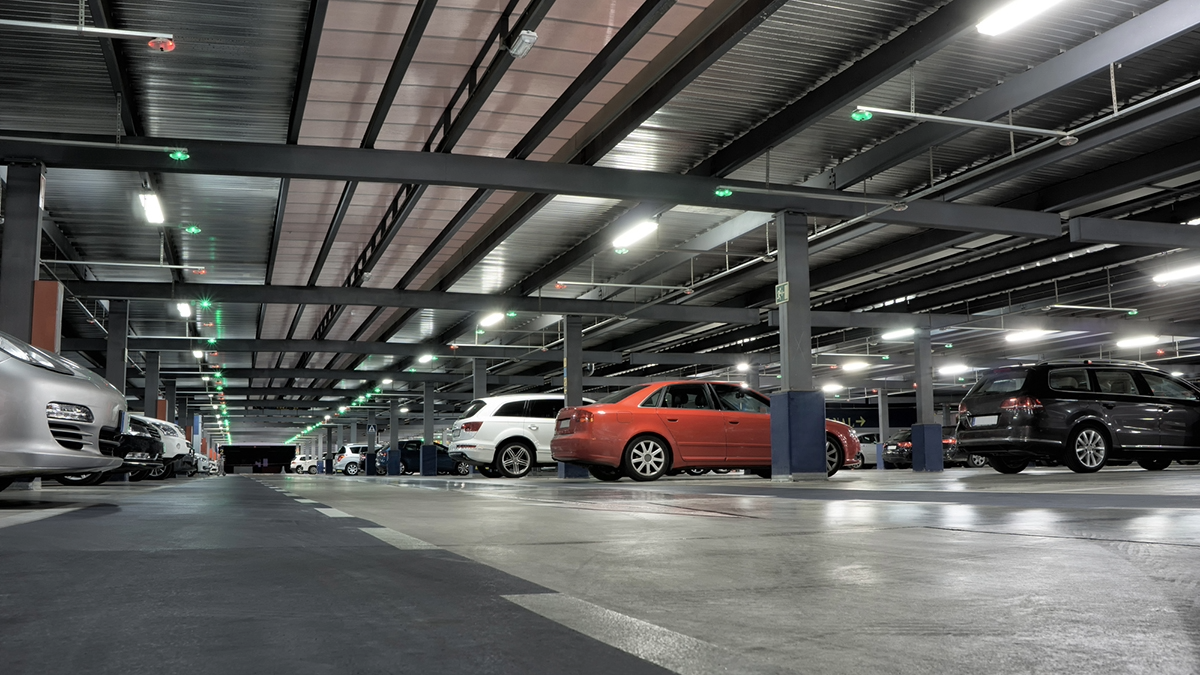

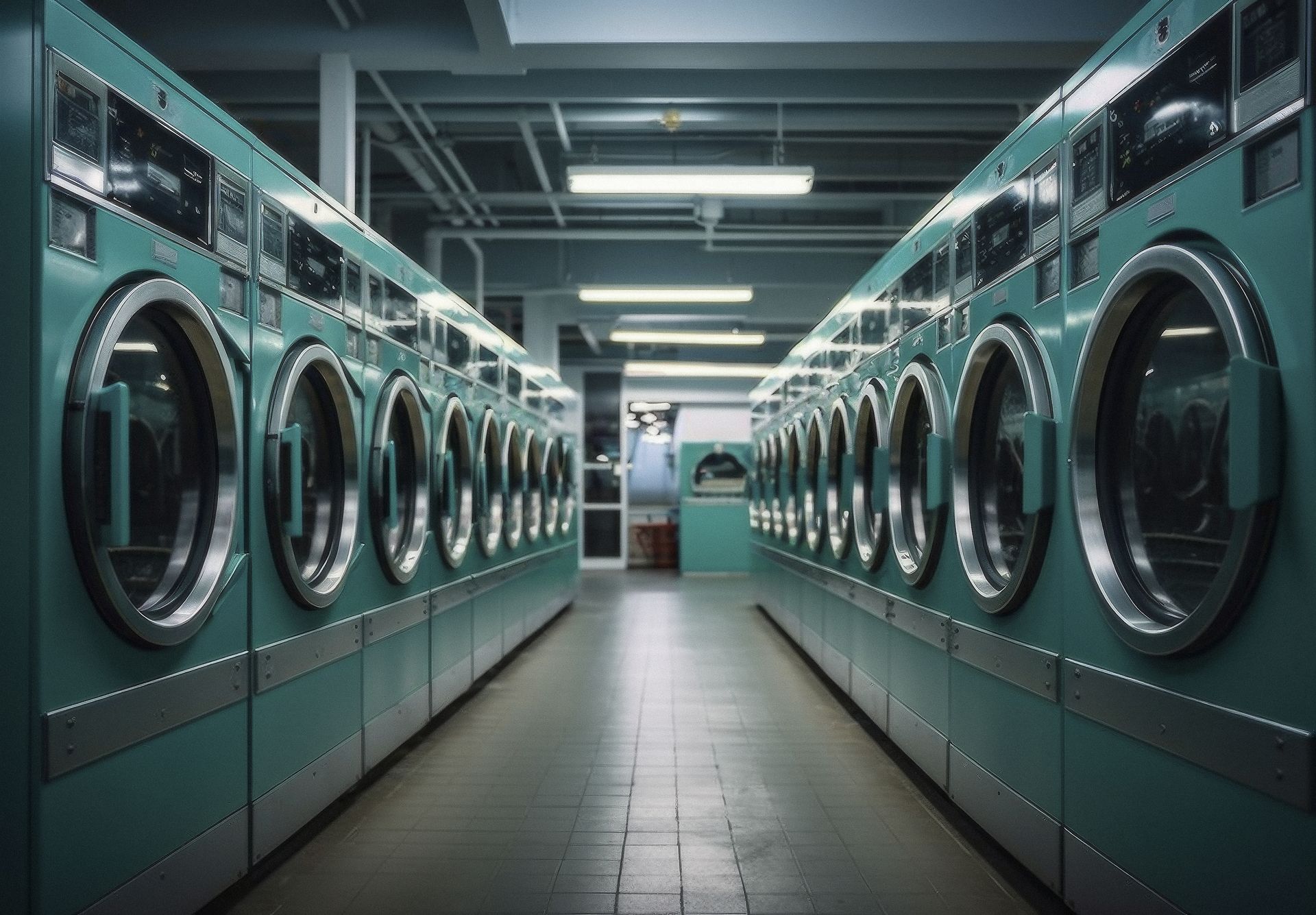

The HELIOS WIDE BODY Wraparound pays homage to the original design intent of this luminaire, ensuring uniform illumination with minimal glare in spaces with low ceilings such as parking garages, laundry mats, stairwells, schools, corridors, and apartment hallways.
Trusted to Be Always On.™
