BRILLANCE SERIES
SLIM PROFILE
RECESSED POT LIGHTS
Explore our entire collection of Slim Profile Recessed Pot Lights to create a modern look for any commercial or multi-family residential space.
LOW PROFILE
WITH STYLE
Transform any commercial or multi-family residential space with the Brilliance Series range of LED Slim Pot Lights. Designed with a sleek, low-profile look, in multiple form factors, these modern fixtures fit seamlessly into any ceiling—even in tight spaces where traditional lighting won’t.
Transform any commercial or multi-family residential space with the Brilliance Series range of LED Slim Pot Lights. Designed with a sleek, low-profile look, in multiple form factors, these modern fixtures fit seamlessly into any ceiling—even in tight spaces where traditional lighting won’t.
KEY FEATURES
Low-profile design with integrated driver to fit ceilings with limited clearance
High efficacy, Energy Star rated performance
5 CCT Selectable built-in (27/30/35/40/5000K) >90 CRI (Square, Baffle, and Magnetic styles)
TRIAC Dimming for wider wall dimmer compatibility
IC-rated and Air-Tight ready and may be in direct contact with insulation
120V (277-347V drivers available for Round, Square, and Baffle models
4” octagon j-box or recessed housing installation (Slim Magnetic Trim model)
KEY FEATURES
Low-profile design with integrated driver to fit ceilings with limited clearance
High efficacy, Energy Star rated performance
5 CCT Selectable built-in (27/30/35/40/5000K) >90 CRI (Square, Baffle, and Magnetic styles)
TRIAC Dimming for wider wall dimmer compatiblity
IC-rated and Air-Tight ready and may be in direct contact with insulation
120V (277-347V drivers available for Round, Square, and Baffle models
4” octagon j-box or recessed housing installation (Slim Magnetic Trim model)
EVERY DESIGN & FUNCTION
AVAILABLE IN FOUR DISTINCT STYLES WITH OPTIONS IN VARIOUS TRIM FINISHES AND SIZES, THE BRILLIANCE SERIES OFFERS MAXIMUM FLEXIBILITY FOR CREATING THE PERFECT AMBIANCE. WHETHER IT'S THE CLASSIC ROUND LOOK, THE MODERN SQUARE DESIGN, THE GLARE-REDUCING BAFFLE, OR THE CUSTOMIZABLE MAGNETIC TRIM, OUR WIDE RANGE OF OPTIONS LETS YOU CHOOSE YOUR STYLE.
EVERY DESIGN & FUNCTION
AVAILABLE IN FOUR DISTINCT STYLES WITH OPTIONS IN VARIOUS TRIM FINISHES AND SIZES, THE BRILLIANCE SERIES OFFERS MAXIMUM FLEXIBILITY FOR CREATING THE PERFECT AMBIANCE. WHETHER IT'S THE CLASSIC ROUND LOOK, THE MODERN SQUARE DESIGN, THE GLARE-REDUCING BAFFLE, OR THE CUSTOMIZABLE MAGNETIC TRIM, OUR WIDE RANGE OF OPTIONS LETS YOU CHOOSE YOUR STYLE.
ROUND SLIM
Offers a classic, timeless design that blends seamlessly into any ceiling, providing even light distribution that is ideal for both general and ambient lighting environments.

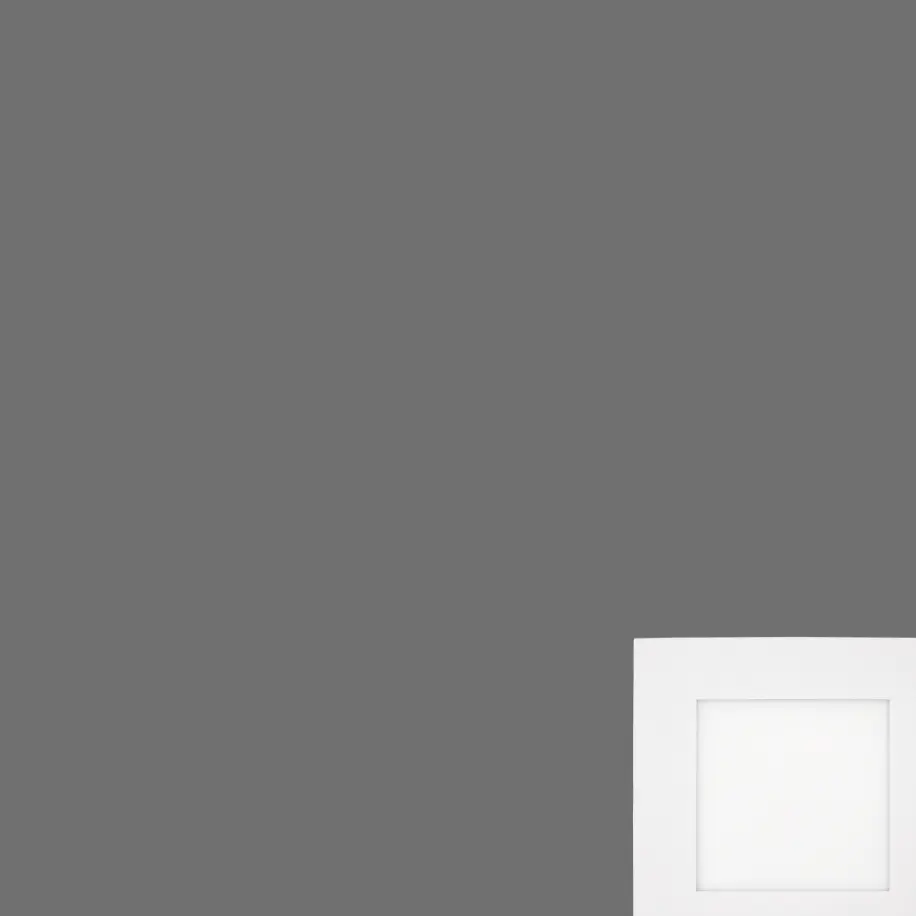

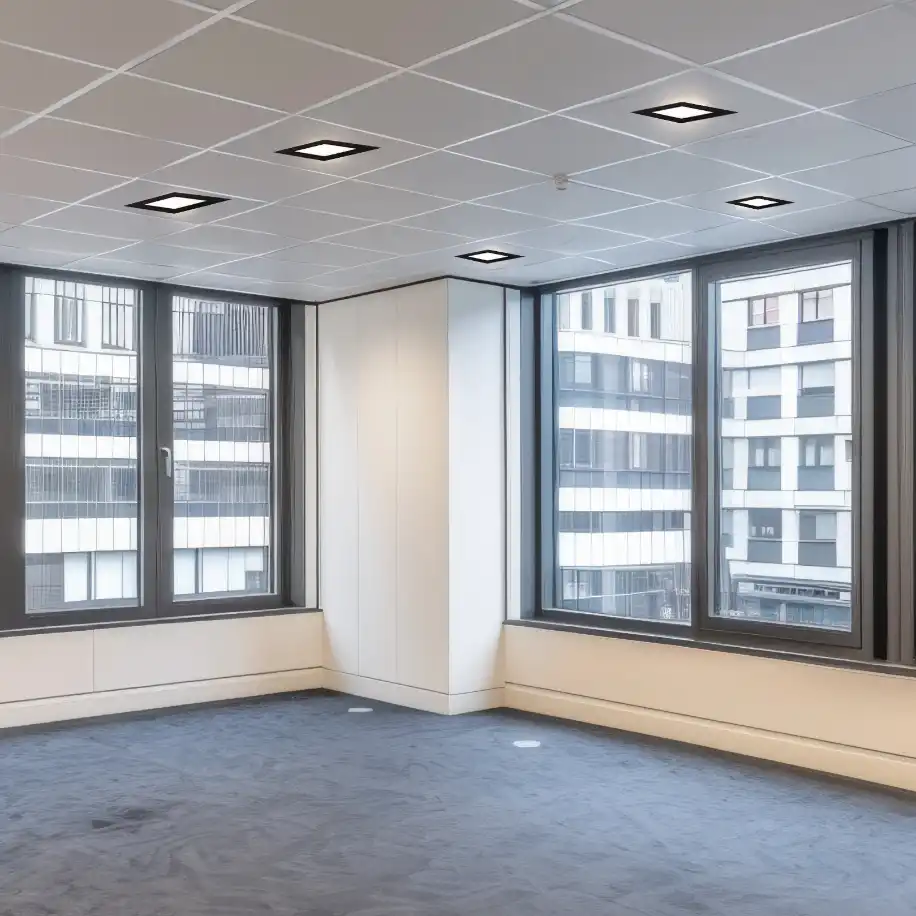

SQUARE SLIM
Brings a modern, geometric aesthetic that adds a distinctive, architectural touch to any space. Their sharp lines create a striking contrast to traditional round fixtures, making them a perfect complement to other square or rectangular elements.

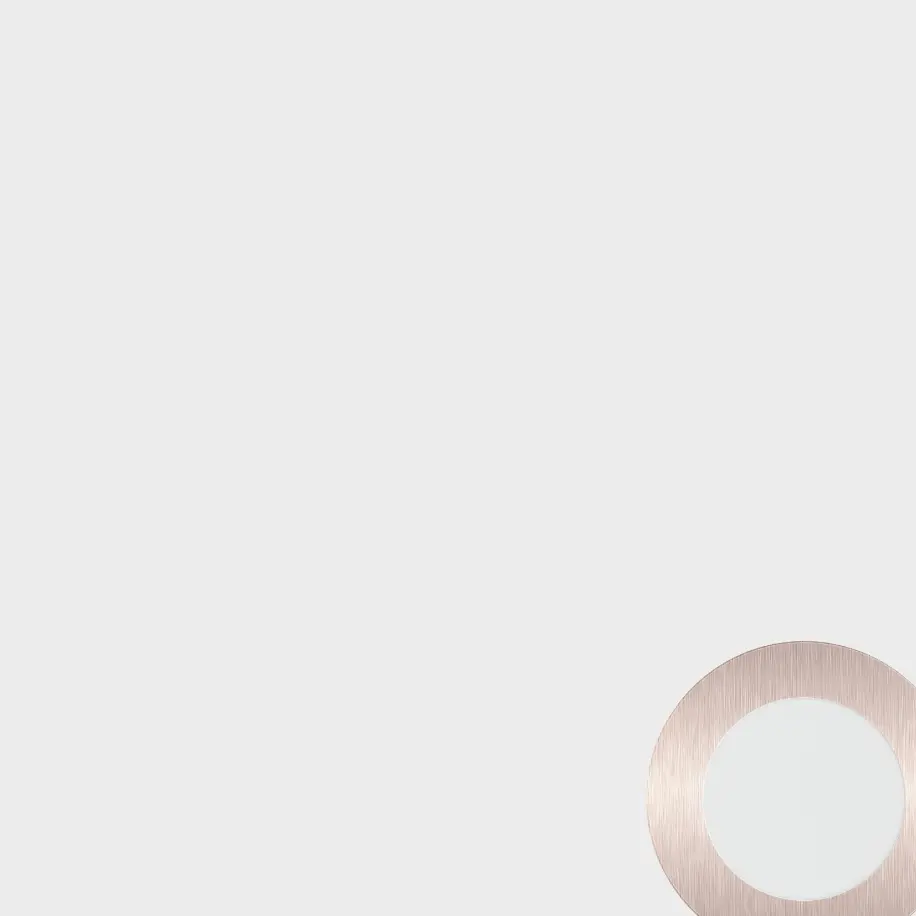

ROUND MAGNETIC TRIM
Introduces a sleek, modern design with customizable trims that allow for easy updates to match changing interior styles without replacing the fixture.
BAFFLE STYLE
Designed with ridges or grooves that reduce glare and soften the light, making them ideal for areas where comfortable, gentle lighting is key. They also provide focused, precise illumination, perfect for task lighting or accenting specific areas.
SLIM PROFILE; ROBUST DESIGN
Order #
Model Number
Diameter
Wattage
Voltage
CCT
Lumens
CRI
Finish
3.0”
4.0”
4.0”
6.0”
8.0”
6W
12W
12W
12W
22W
120V
120V
120V
120V
120V
30 / 40 / 5000K
27 / 30 / 35 / 40 / 5000K
27 / 30 / 35 / 40 / 5000K
27 / 30 / 35 / 40 / 5000K
30 / 40 / 5000K
>80
>80
>80
>80
>80
400 lm
800 lm
800 lm
1,100 lm
1,640 lm
White White Black
White White

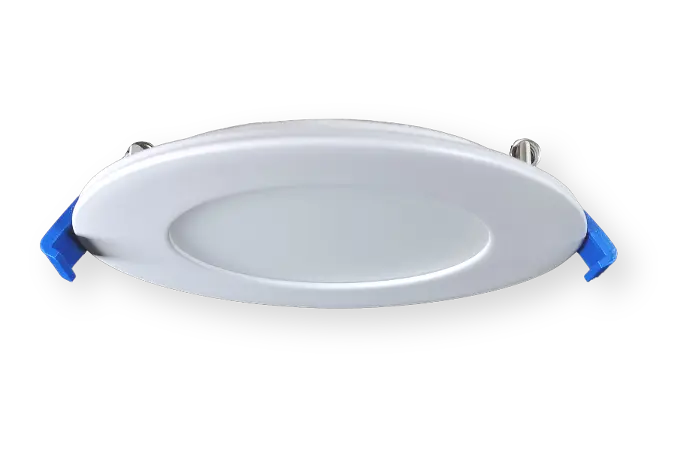

LED SLIM POT LIGHT
The most popular Round Slim: a low-profile, easy-to-install pot light that delivers exceptional brightness while maintaining a sleek, modern look. Perfect for tight spaces, it is easy to install and offers optimum energy efficiency.
Order #
Model Number
Diameter
Wattage
Voltage
CCT
Lumens
CRI
Finish
4.0”
4.0”
12W
12W
120V
120V
27 / 30 / 35 / 40 / 5000K
27 / 30 / 35 / 40 / 5000K
>90
>90
800 lm
800 lm
White Black

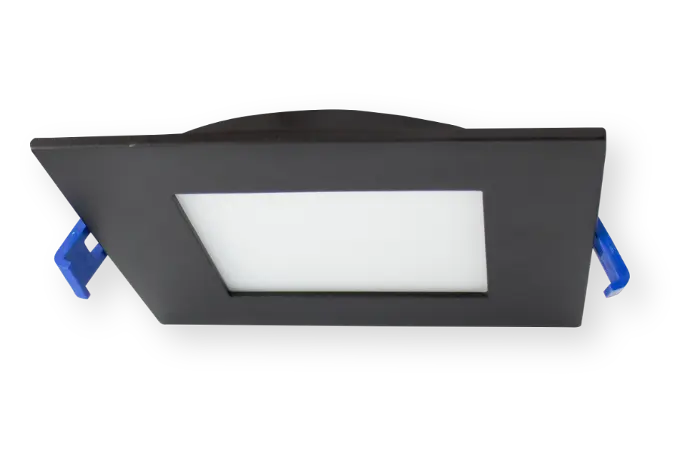

SQUARE SLIM POT LIGHT
The popular Slim made Square: engineered with a clean, modern square shape, this low-profile fixture fits seamlessly into spaces, making it desirable choice for today’s interior designers.
Order #
Model Number
Diameter
Wattage
Voltage
CCT
Lumens
CRI
Finish
4.0”
8W
120V
27 / 30 / 35 / 40 / 5000K
>90
650 lm
White

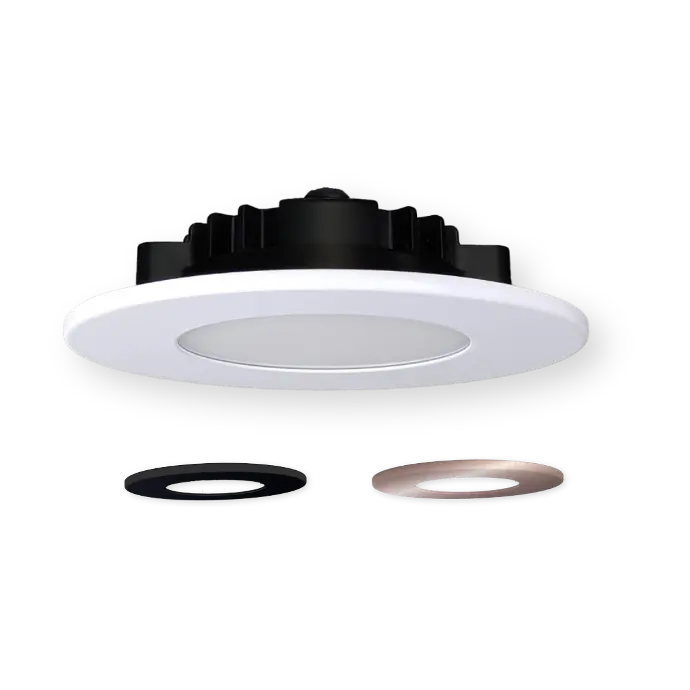

SLIM MAGNETIC TRIM
With a swappable magnetic trim design, this modern take on the Round Slim is the perfect solution for enhancing the look of a space. Simply choose a Black or Brushed Nickel trim that is designed to quickly and securely snap on and off, and your clients can effortlessly choose the trim color to complement their décor.
Order #
Model Number
Diameter
Wattage
Voltage
CCT
Lumens
CRI
Finish
4.0”
4.0”
12W
12W
120V
120V
27 / 30 / 35 / 40 / 5000K
27 / 30 / 35 / 40 / 5000K
>90
>90
800 lm
800 lm
White Black

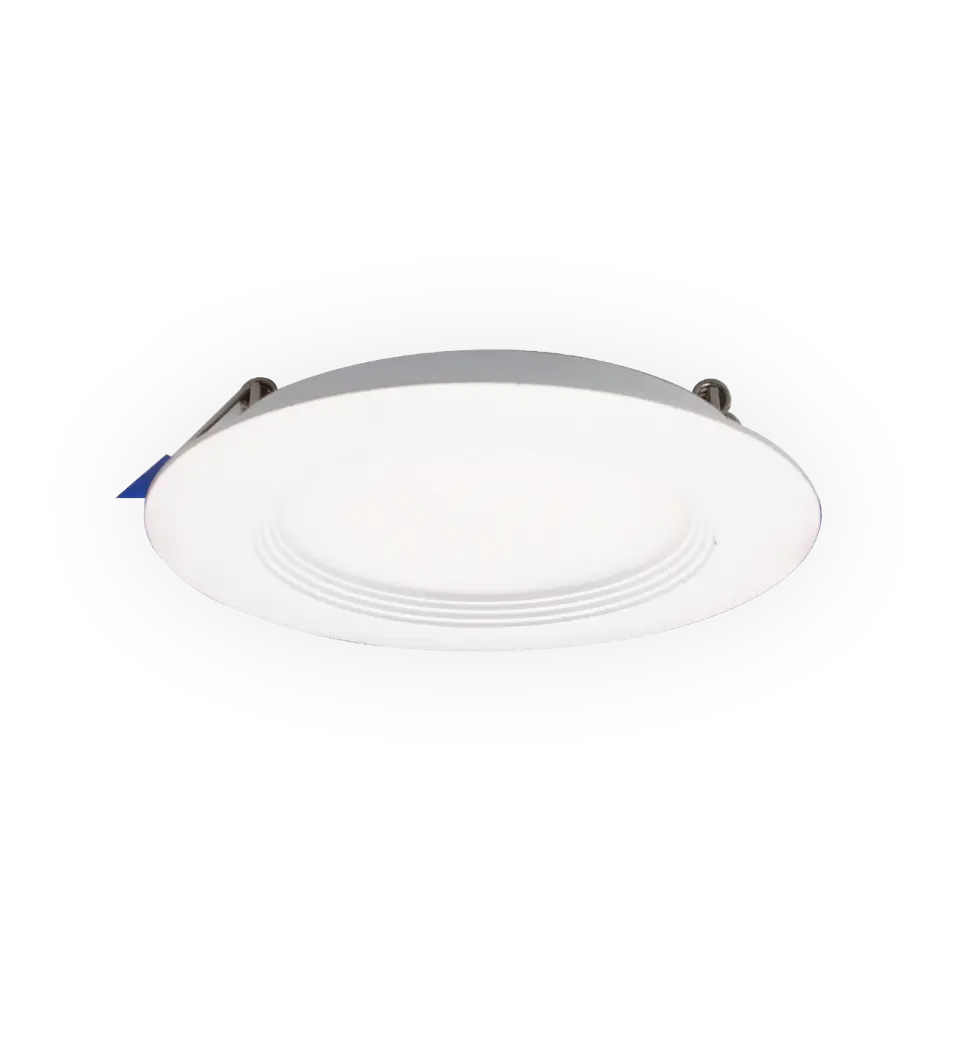

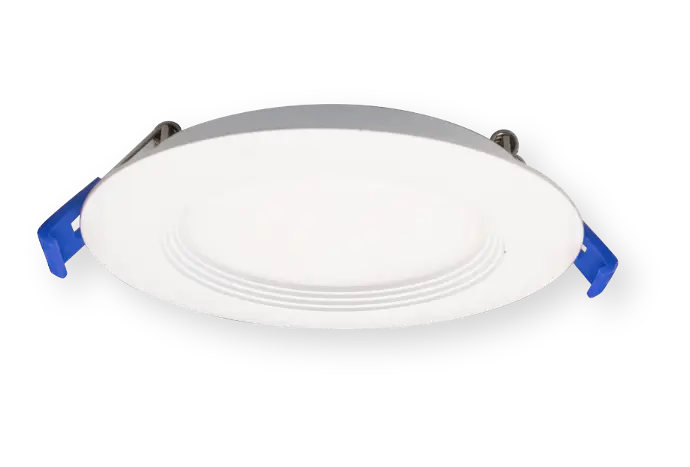

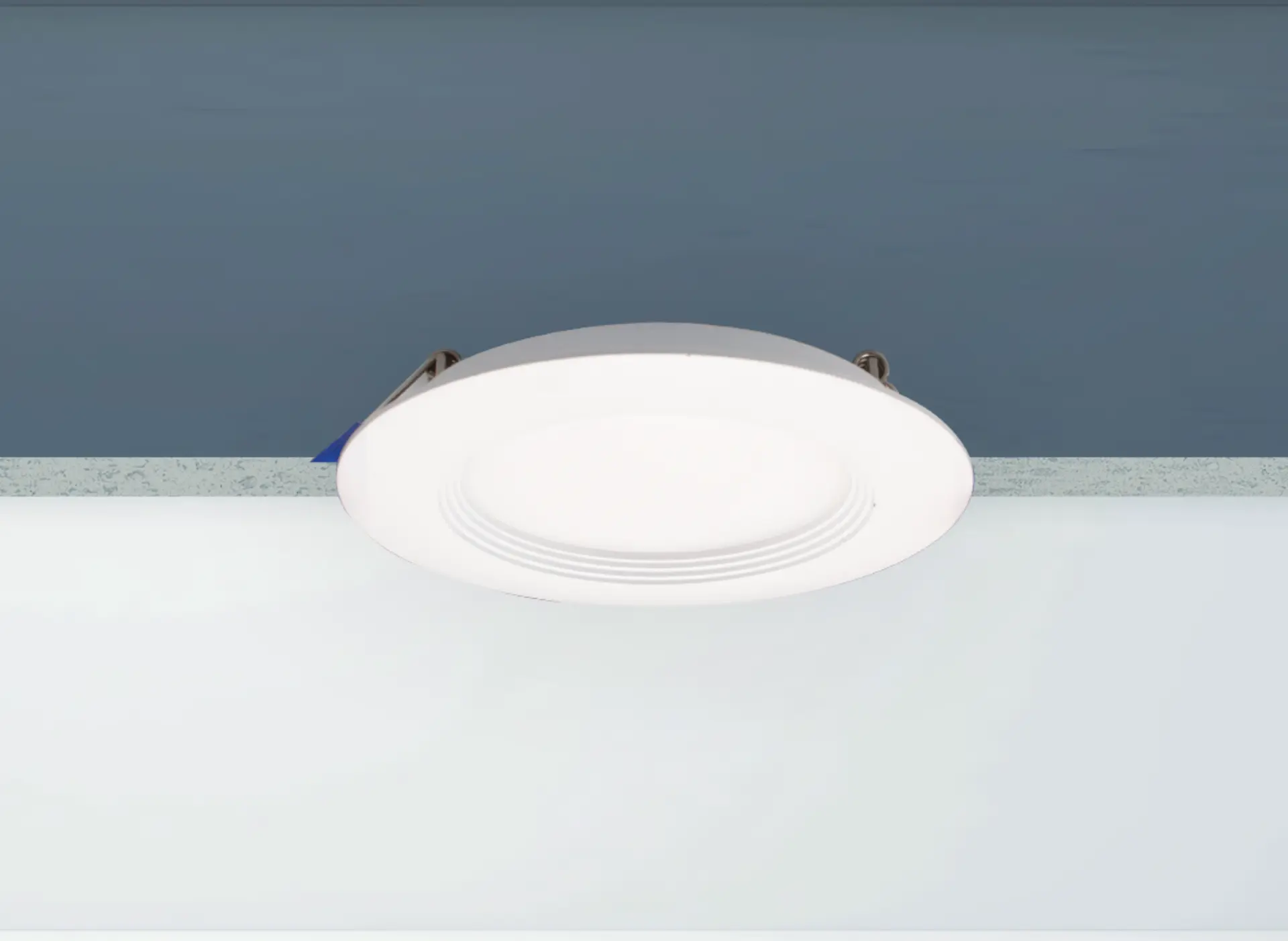

SLIM BAFFLE STYLE
Its grooved baffle trim reduces glare by directing light downward, the Slim Baffle style pot light is perfect for spaces where minimizing brightness and reflection is a priority.
ACCESSORIES
ACCESSORIES
ACCESSORIES COMPATIBILITY LIST
Order #
Model Number
Description
Round
Square
Magnetic
Baffle

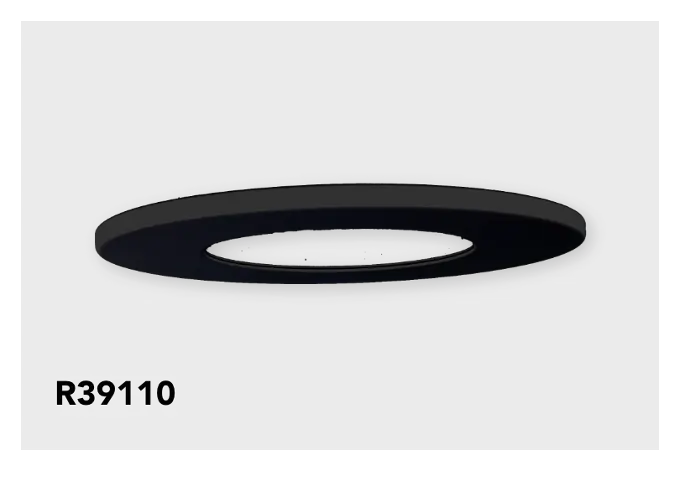

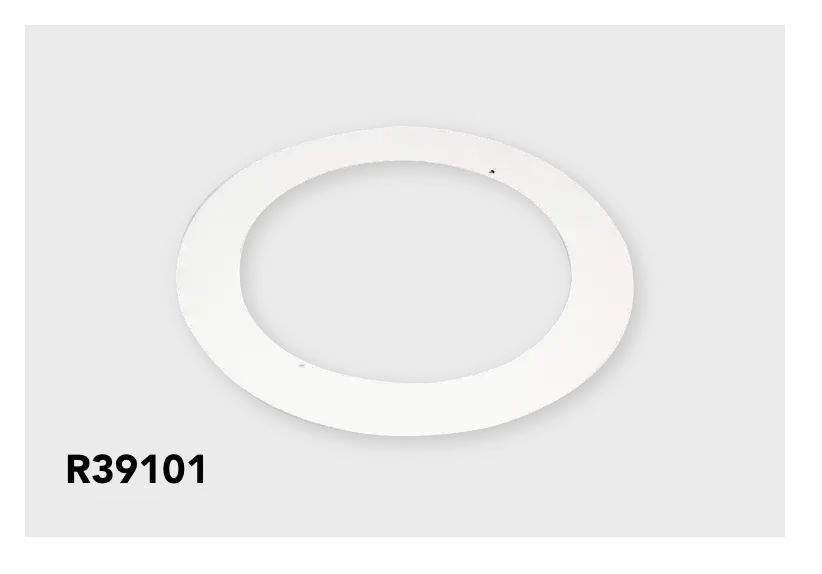

4” Goof ring
6” Goof ring
8” Goof ring

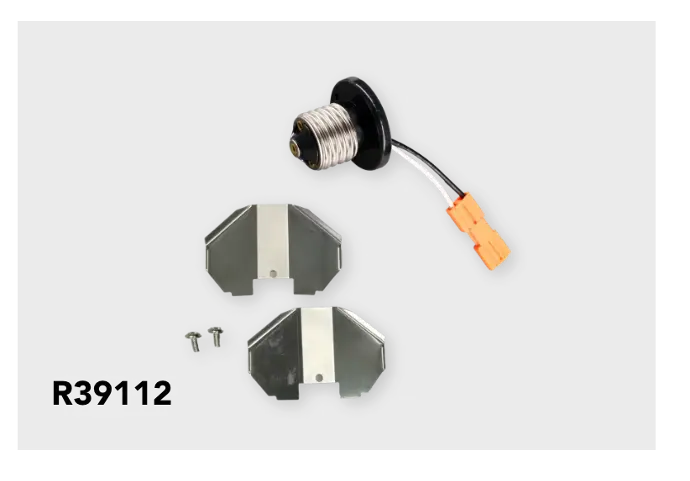

Butterfly Clips & Recessed Housing Retrofit Kit
AC277-347V driver for slim 4”& 6” panel, non-dimmable
AC277-347V driver for slim 8” panel, non-dimmable

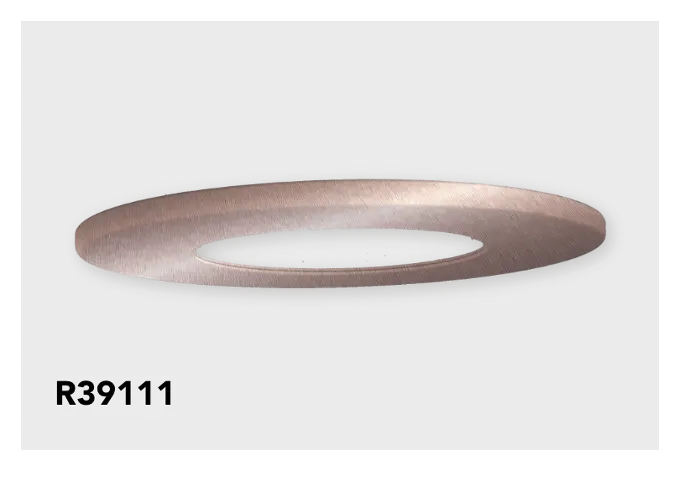

Black Magnetic Trim for 4" Magnetic Pot light
Bronze Magnetic Trim for 4" Magnetic Pot light
4” Mounting Plate Without clip

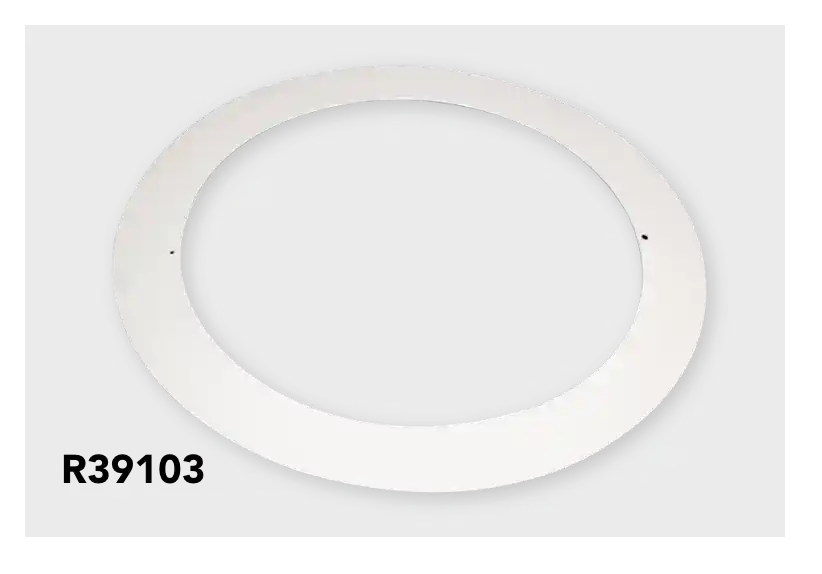

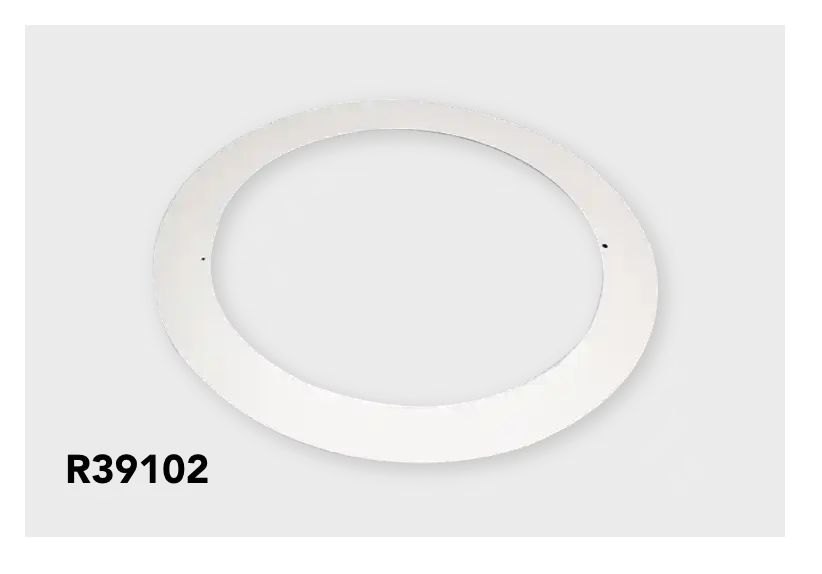

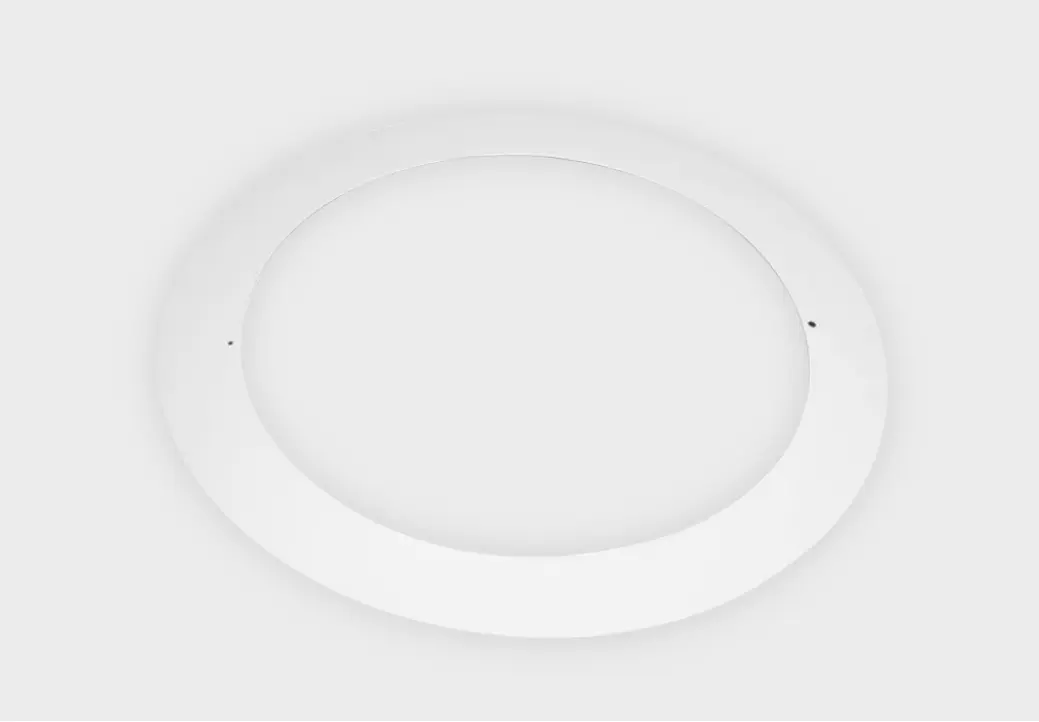

GOOFS RINGS SAVE THE DAY
Also known as a “trim ring” or “oversize trim plate”, a Goof Ring is a cover used to hide imperfections or gaps around the recessed light. Most common uses? When the hole cut for the pot light is too large, uneven, or damaged, and its trim doesn’t fully cover the opening.

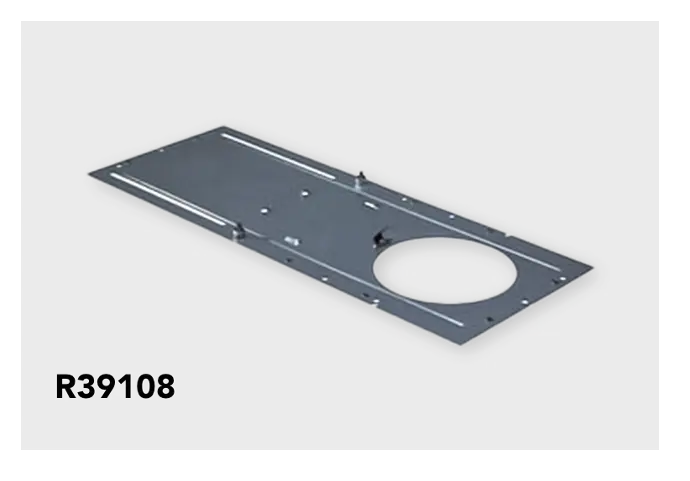

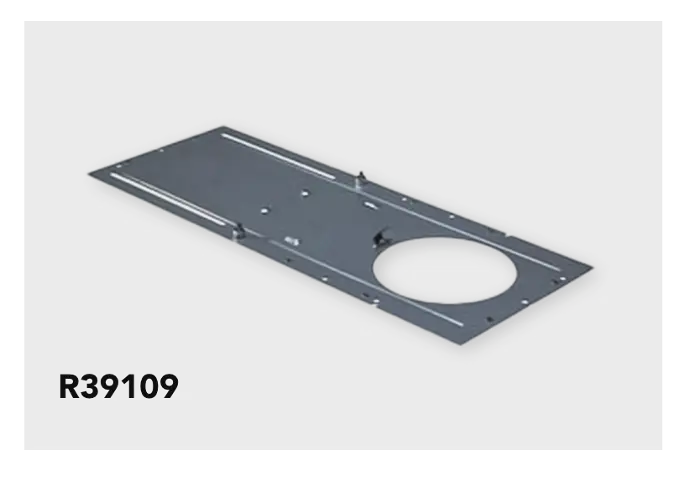

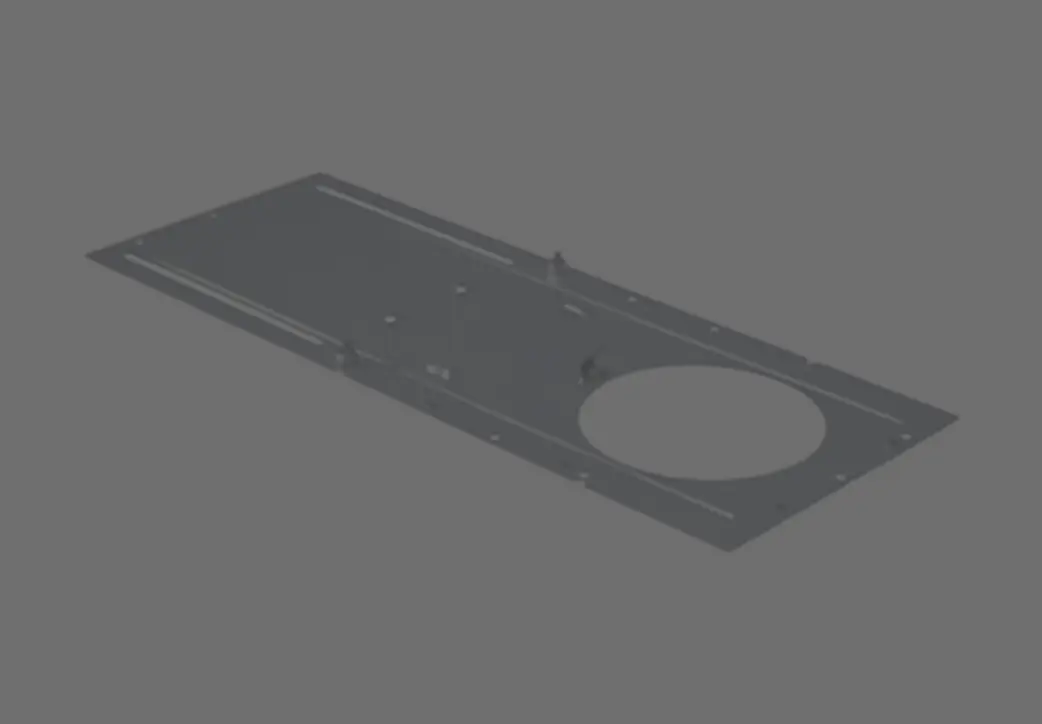

MOUNTING PLATES
Mounting Plates serve as the support structure that attaches to the ceiling joists or other structural elements, providing a stable base for the potlight to be installed. A must-have if you want to ensure the light is aligned and held securely in place.

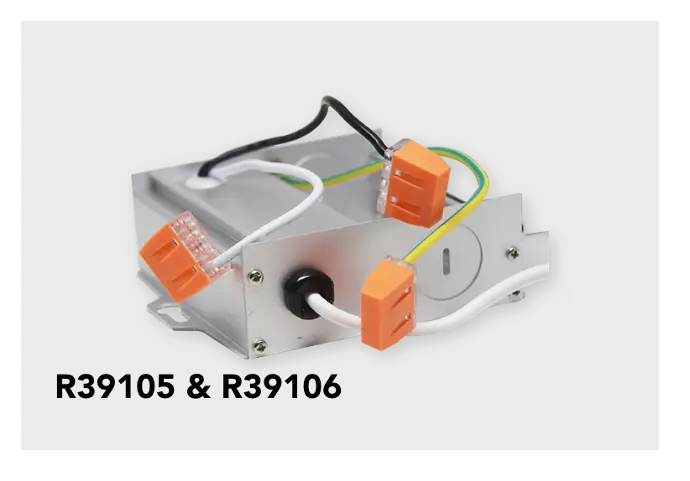

EXTERNAL 277-347 DRIVERS
If your building voltage is not 120V, an optional 277-347V driver is available to accommodate higher voltage applications for the Brilliance Series Pot Lights.
