ARRAY SERIES
ARCHITECTURAL
STRIP SYSTEM
GENERATION 2
UNLEASH YOUR LINEAR CONCEPT
ILLUMINATE STRUCTURES LIKE NEVER BEFORE WITH THE ARRAY SERIES ARCHITECTURAL DIRECT/INDIRECT LINEAR STRIP SYSTEM. THIS CONFIGURABLE LINEAR STRIP SYSTEM OFFERS THE FREEDOM TO CRAFT BOTH SMOOTH, FLUID CURVES AND PRECISE ANGULAR BENDS.
WHETHER A DESIGNER SEEKS THE ORGANIC GRACE OF NATURAL FORMS OR THE GEOMETRIC PRECISION OF MODERN DESIGN, THE ARRAY SERIES ADAPTS SEAMLESSLY TO THEIR VISION, RESULTING IN A INNOVATIVE DESIGN OF LIGHT.
UNLEASH YOUR LINEAR CONCEPT
ILLUMINATE STRUCTURES LIKE NEVER BEFORE WITH THE ARRAY SERIES ARCHITECTURAL DIRECT/INDIRECT LINEAR STRIP SYSTEM. THIS CONFIGURABLE LINEAR STRIP SYSTEM OFFERS THE FREEDOM TO CRAFT BOTH SMOOTH, FLUID CURVES AND PRECISE ANGULAR BENDS.
WHETHER A DESIGNER SEEKS THE ORGANIC GRACE OF NATURAL FORMS OR THE GEOMETRIC PRECISION OF MODERN DESIGN, THE ARRAY SERIES ADAPTS SEAMLESSLY TO THEIR VISION, RESULTING IN A INNOVATIVE DESIGN OF LIGHT.
LAUNCH YOUR CREATIVE APPROACH
Used individually in a linear design, imagined as a circular or round beam of light, or constructed to provide an impression of geometric strength, there is no limit to turning you architectural canvas into illuminated fuel for the senses.
LAUNCH YOUR CREATIVE APPROACH
Used individually in a linear design, imagined as a circular or round beam of light, or constructed to provide an impression of geometric strength, there is no limit to turning you architectural canvas into illuminated fuel for the senses.
CURVED ORGANIC BEAUTY
Effortlessly create seamless, flowing forms that emulate the gentle arcs of a cloud or the circular contour of golden rings. The smooth lines of curved shapes impart a sense of a movement and harmony, making them perfect for adding a sophisticated, illuminated flair to your environment.
INTENTIONALLY LINEAR
Position individual linear luminaires in an intentional asymmetrical design to provide a dynamic sense of motion and energy, or arrange them in parallel mirror patterns to modify spatial perception to create the illusion of infinite space.
SHARP STRIKING BRILLIANCE
Effortlessly create seamless, flowing forms that emulate the gentle arcs of a cloud or the circular contour of golden rings. The smooth lines of curved shapes impart a sense of a movement and harmony, making them perfect for adding a sophisticated, illuminated flair to your environment.
CURVED ORGANIC BEAUTY
Effortlessly create seamless, flowing forms that emulate the gentle arcs of a cloud or the circular contour of golden rings. The smooth lines of curved shapes impart a sense of a movement and harmony, making them perfect for adding a sophisticated, illuminated flair to your environment.
INTENTIONALLY LINEAR
Position individual linear luminaires in an intentional asymmetrical design to provide a dynamic sense of motion and energy, or arrange them in parallel mirror patterns to modify spatial perception to create the illusion of infinite space.
SHARP STRIKING BRILLIANCE
Effortlessly create seamless, flowing forms that emulate the gentle arcs of a cloud or the circular contour of golden rings. The smooth lines of curved shapes impart a sense of a movement and harmony, making them perfect for adding a sophisticated, illuminated flair to your environment.
A NEW GENERATION
ARCHITECTURAL STRIP SYSTEM
Put your creative concepts on overdrive with our new generation of Architectural Strips by utilizing angular and curved connectors, upper luminous modules, and a variety of mounting kits to create a fully seamless, luminous design that elevates the ambiance of any space.
KEY FEATURES
Up to 1,620 lm/ft
Four field-selectable CCTs
(30/35/40/5000K)
Direct/Indirect (70%/30%) option
>90 CRI
Wide range of layout configurations using luminous connectors
Fully luminous corners and transition pieces
Suspension, Recessed, and Wall Mount installation options
2 FT ARCHITECTURAL STRIPS
Model Number
RENO-TLSN2-DV-MCCT-MW-WH-G2
RENO-TLSN2-DV-MCCT-MW-BK-G2
Order #
R33211
R33214
Watts
30W / 40W / 50W
30W / 40W / 50W
Voltage
120-347V
120-347V
Efficiency
130 lm/W
130 lm/W
CRI
>80
>80
CCT
30 / 35 / 40 / 5000K
30 / 35 / 40 / 5000K
Finish
White
Black
4 FT ARCHITECTURAL STRIPS
Order #
R33212
R33215
Model Number
RENO-TLSN4-DV-MCCT-MW-WH-G2
RENO-TLSN4-DV-MCCT-MW-BK-G2
Watts
30W / 40W / 50W
30W / 40W / 50W
Voltage
120-347V
120-347V
Efficiency
130 lm/W
130 lm/W
CRI
>80
>80
CCT
30 / 35 / 40 / 5000K
30 / 35 / 40 / 5000K
Finish
White
Black
8 FT ARCHITECTURAL STRIPS
Order #
R33213
R33216
Model Number
RENO-TLSN8-DV-MCCT-MW-WH-G2
RENO-TLSN8-DV-MCCT-MW-BK-G2
Watts
30W / 40W / 50W
30W / 40W / 50W
Voltage
120-347V
120-347V
Efficiency
130 lm/W
130 lm/W
CRI
>80
>80
CCT
30 / 35 / 40 / 5000K
30 / 35 / 40 / 5000K
Finish
White
Black
A NEW GENERATION
ARCHITECTURAL STRIP SYSTEM
Put your creative concepts on overdrive with our new generation of Architectural Strips by utilizing angular and curved connectors, upper luminous modules, and a variety of mounting kits to create a fully seamless, luminous design that elevates the ambiance of any space.
KEY FEATURES
Up to 1,620 lm/ft
Four field-selectable CCTs
(30/35/40/5000K)
Direct/Indirect (70%/30%) option
>90 CRI
Wide range of layout configurations using luminous connectors
Fully luminous corners and transition pieces
Suspension, Recessed, and Wall Mount installation options
GENERATION 2 UPGRADED FEATURES
LOWER UGR
RATING
HIGH-EFFICIENCY
LEDS
IMPROVED INTERFACE FOR INSTALLATION
ROBUST SPLICING
INTERFACES
MULTIPLE CCT
AVAILABLE
A new Prismatic Diffuser provides a lower Unified Glare Rating (22), reducing the risk of glare while improving uniformity.
Improved LED beads increases efficacy to 130 lm/W (from 115 lm/W) qualifying for a wider range of energy incentives.
An improved interface makes it easier to connect, and provides a more robust overall structure.
A new quick connect splicing interface ensures electrical continuity and secure physical connections when joining each strip together.
Added 3500K, allowing users to select from four CCTs directly in the field.
GENERATION 2
UPGRADED FEATURES
LOWER UGR RATING
HIGH-EFFICIENCY LEDS
IMPROVED INTERFACE FOR INSTALLATION
ROBUST SPLICING INTERFACES
MULTIPLE CCT AVAILABLE
A new Prismatic Diffuser provides a lower Unified Glare Rating (22), reducing the risk of glare while improving uniformity.
Improved LED beads increases efficacy to 130 lm/W (from 115 lm/W) qualifying for a wider range of energy incentives.
An improved interface makes it easier to connect, and provides a more robust overall structure.
A new quick connect splicing interface ensures electrical continuity and secure physical connections when joining each strip together.
Added 3500K, allowing users to select from four CCTs directly in the field.

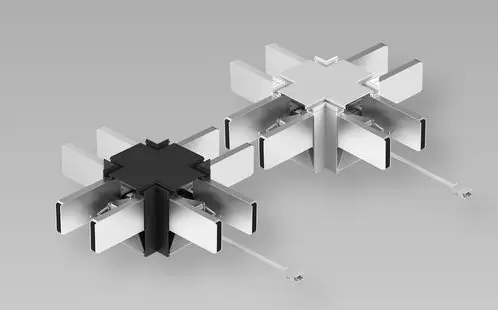

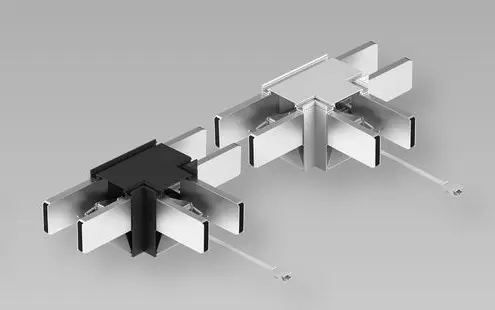

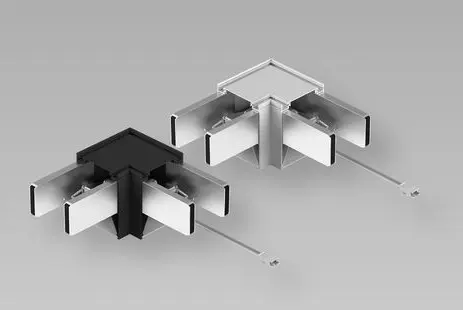

ANGULAR LUMINOUS CONNECTORS
Description
X-Connector (White)
X-Connector (Black)
Order #
R39425
R39437
Order #
R39427
R39439
Description
V-Connector (White)
V-Connector (Black)
Order #
R39426
R39438
Description
T-Connector (White)
T-Connector (Black)
Order #
R39424
R39436
Description

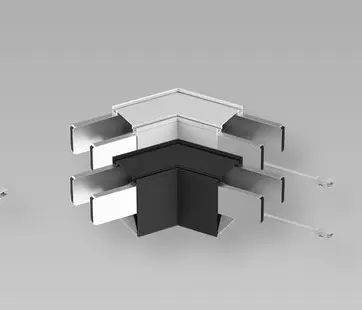

90° Connector (White)
90° Connector (Black)
ANGULAR LUMINOUS CONNECTORS

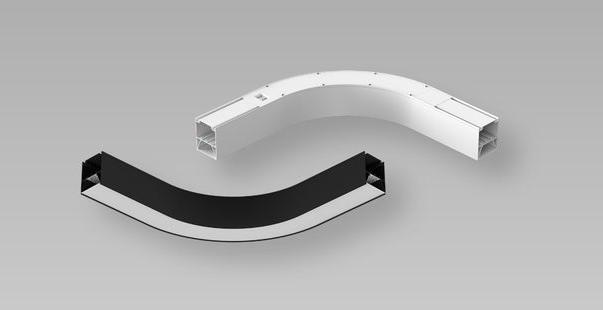

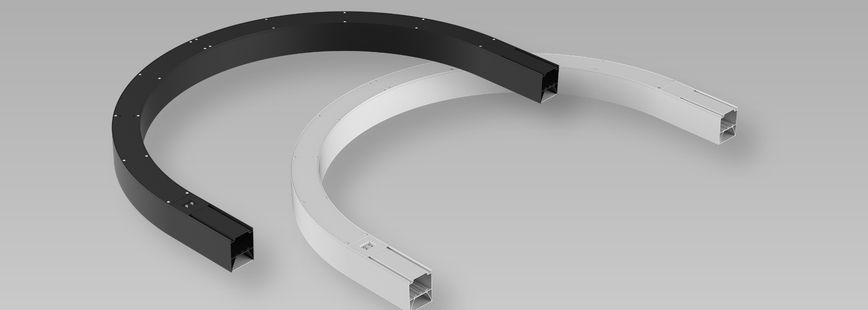

CURVED LUMINOUS CONNECTORS
Order #
R39441
R39442
Description
Half Arc Connector (White)
Half Arc Connector (Black)
Order #
R39443
R39444
Description
Quarter Arc Connector (White)
Quarter Arc Connector (Black)
CURVED LUMINOUS CONNECTORS

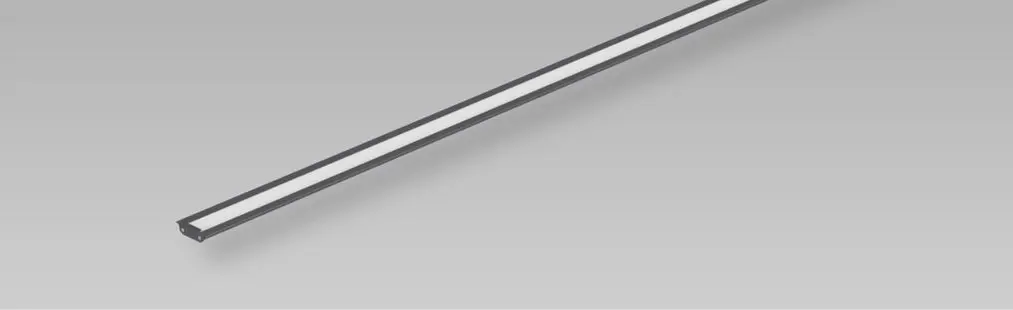

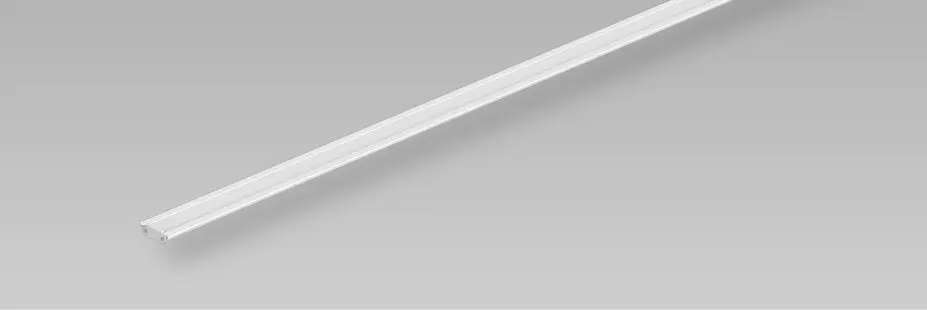

UPPER LUMINOUS CONNECTORS
Description
2 ft 7W Module (White)
2 ft 7W Module (Black)
Description
8 ft 15W Module (White)
8 ft 15W Module (Black)
Order #
R39403
R39415
Description
4 ft 12W Module (White)
4 ft 12W Module (Black)
Order #
R39402
R39414
Order #
R39401
R39413
UPPER LUMINOUS CONNECTORS
Description
Wall Mount Kit
Surface Mount Kit
Linear Connector Kit
Order #
R39410
R39411
R39408
Order #
R39407
R39412
R39419
Description
Suspension Kit
Canopy Kit (White)
Canopy Kit (Black)
Order #
R39440
Description

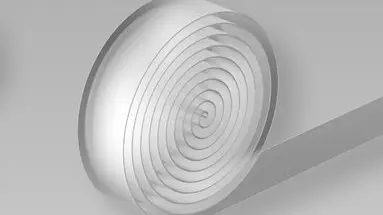

Seamless Connection Lens
(98ft/30m per roll)
Description
Mounting Kit
Order #
R39409
WALL / SURFACE

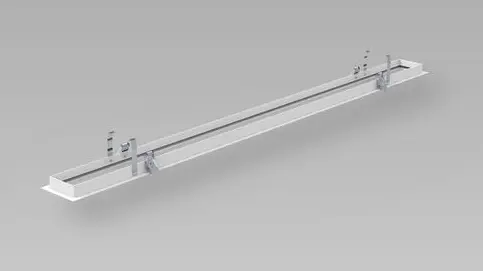

RECESSED
SUSPENSION & CANOPY
ACCESSORIES

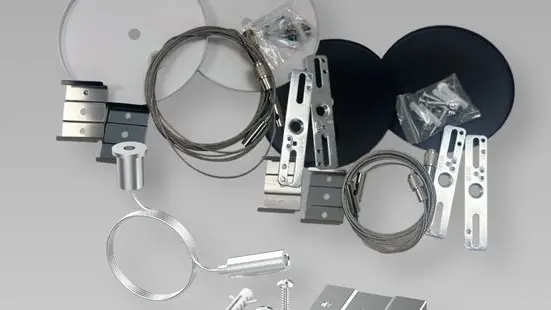

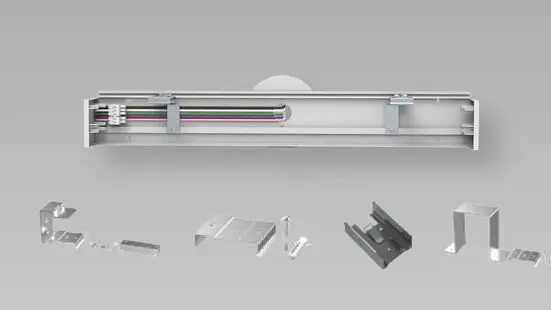

SUSPENSION & MOUNTING KITS
CONFIGURE YOUR CONCEPT
CONFIGURE YOUR CONCEPT
90º Connector
"X" Connector
"T" Connector
"V" Connector
Quarter Arc Connector
Half Arc Connector
Pendant Mounting Kit
Wall Mounting Kit
Recessed Mounting Kit
8 ft Linear Strip
STRIP SYSTEM LEGEND
4 ft Linear Strip
2 ft Linear Strip
STRIP LIGHTS
90º Connector
“X” Connector
"T" Connector
"V" Connector
Quarter Arc Connector
Half Arc Connector
Pendant Mounting Kit
Wall Mounting Kit
Recessed Mounting Kit
4 ft Linear Strip
2 ft Linear Strip
8 ft Linear Strip
STRIP SYSTEM LEGEND
STRIP LIGHTS
Learn More
Download our Sellsheet to easily reference the Architectural Strip Lighting System and help your clients select the configuration they require.
Learn More
Download our Sellsheet to easily reference the Architectural Strip Lighting System and help your clients select the configuration they require.
