ORDER NO # R36224
SERIES: ZETA SERIES

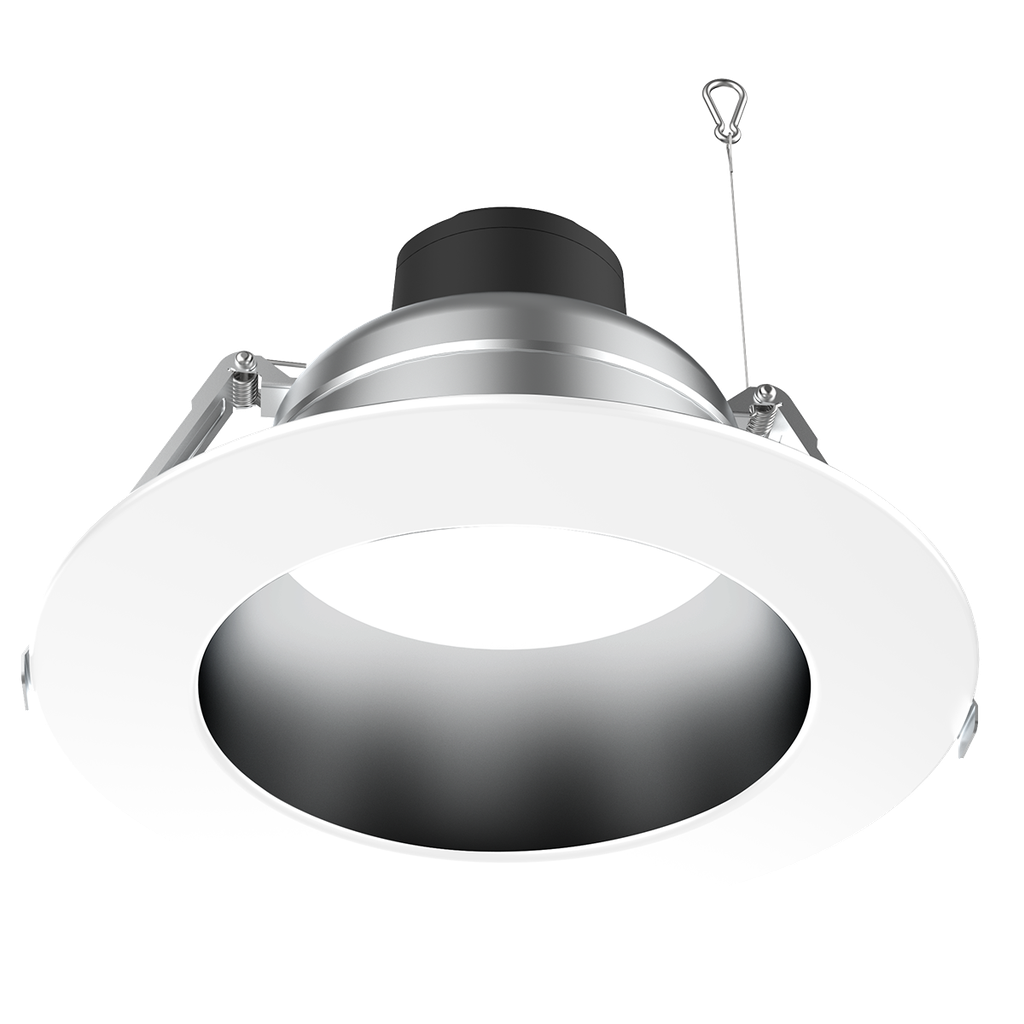

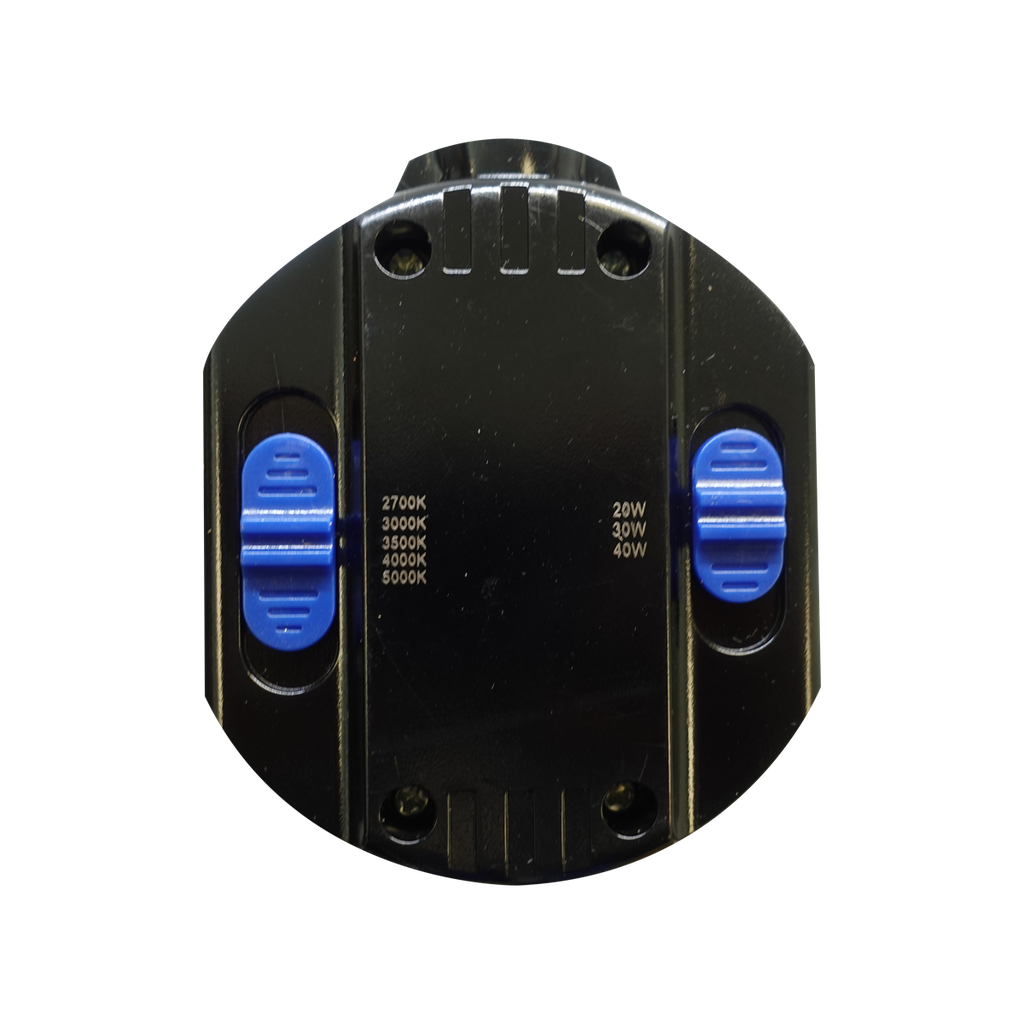

10" Multi Downlight AL | 20/30/40W Selectable Wattage | 120-347V | 27/30/35/40/50K Selectable CCT | 0-10V & TRIAC Dimming

$ 0.00

Not Available For Sale

  • Reno Collection
  • MOL
  • Power (W)
  • Lumens
  • Voltage (V)
  • CRI
  • Beam Angle (Degree)
  • Operating Temperature
  • Dimmable
  • Lifespan (Hours)
  • Finish
  • EnergyStar
  • EnergyStar ID
  • Box QTY
  • Shipping Dimensions

This combination does not exist.

$ 0.00

Not Available For Sale

FIND ALTERNATIVE
Lighting Layout COMPARABLE PRODUCT
BrandDual voltage LOGO.png
Brand5yr warranty.png
Specifications
Reno Collection
ARK
MOL
10"
Power (W)
20/30/40W
Lumens
1,860/2,790/3,720lm
Voltage (V)
120-347V
CRI
93
Beam Angle (Degree)
97°
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Dimmable
0-10V and TRIAC Dimming
Lifespan (Hours)
50,000hrs
Finish
White
EnergyStar
Yes
EnergyStar ID
3463030
Box QTY
4
Shipping Dimensions
23.5"x12.25"x15.75" - 13lbs
Documents
Spec Sheet Spec Sheet (FR)
Installation Manual IES Photometric Files
Specifications
Reno Collection
ARK
MOL
10"
Power (W)
20/30/40W
Lumens
1,860/2,790/3,720lm
Voltage (V)
120-347V
CRI
93
Beam Angle (Degree)
97°
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Dimmable
0-10V and TRIAC Dimming
Lifespan (Hours)
50,000hrs
Finish
White
EnergyStar
Yes
EnergyStar ID
3463030
Box QTY
4
Shipping Dimensions
23.5"x12.25"x15.75" - 13lbs
