SOL SERIES
SLIM SURFACE FIXTURES
A low profile surface mount fixture purpose-built to simplify the
installation process by easily mounting onto standard J-boxes.





SÉRIE SOL
LUMINAIRES EN
SAILLIE MINCES

Un luminaire encastré à profil bas conçu spécialement pour simplifier le processus d’installation en se montant facilement sur des boîtiers de jonction standards.

SLEEK STYLE
EFFORTLESS INSTALL

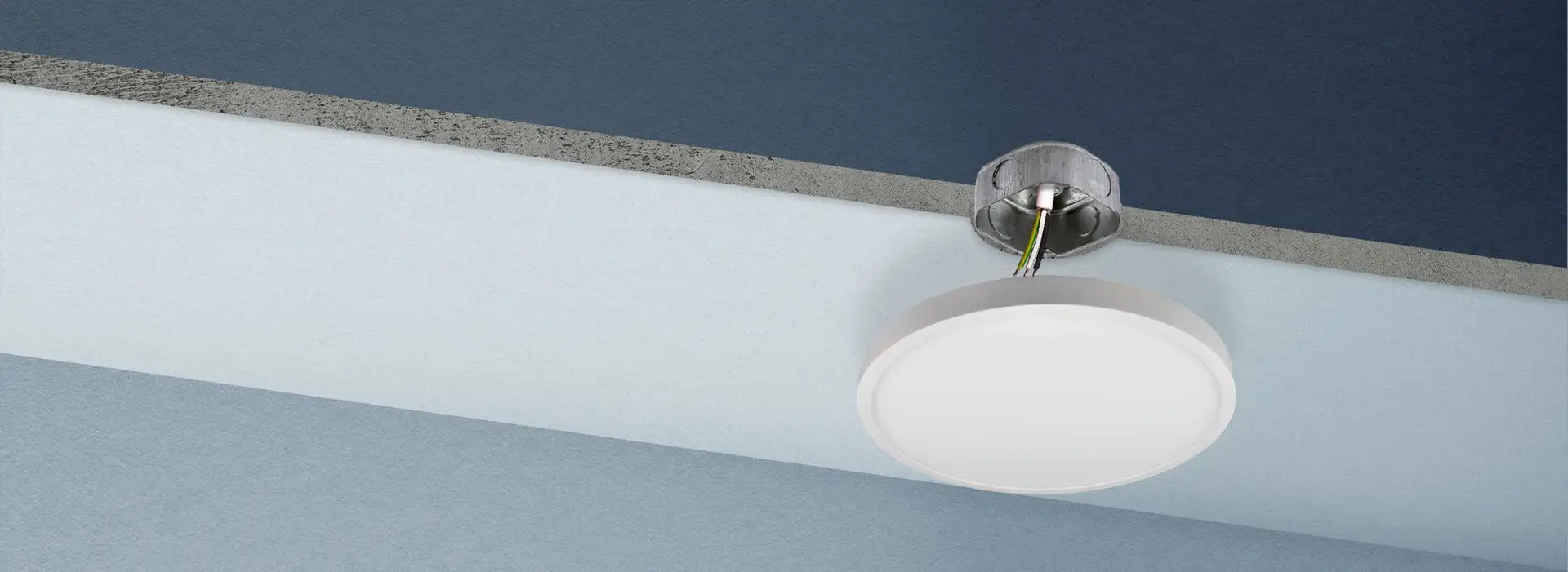

Invite warmth and illumination into any space with an ultra-slim solution designed for direct installation onto standard junction boxes.

STYLE ÉPURÉ ET INSTALLATION FACILE

Ajoutez chaleur et éclairage à n’importe quel espace au moyen d’une solution ultramince conçue pour une installation directe sur les boîtes de jonction standard.

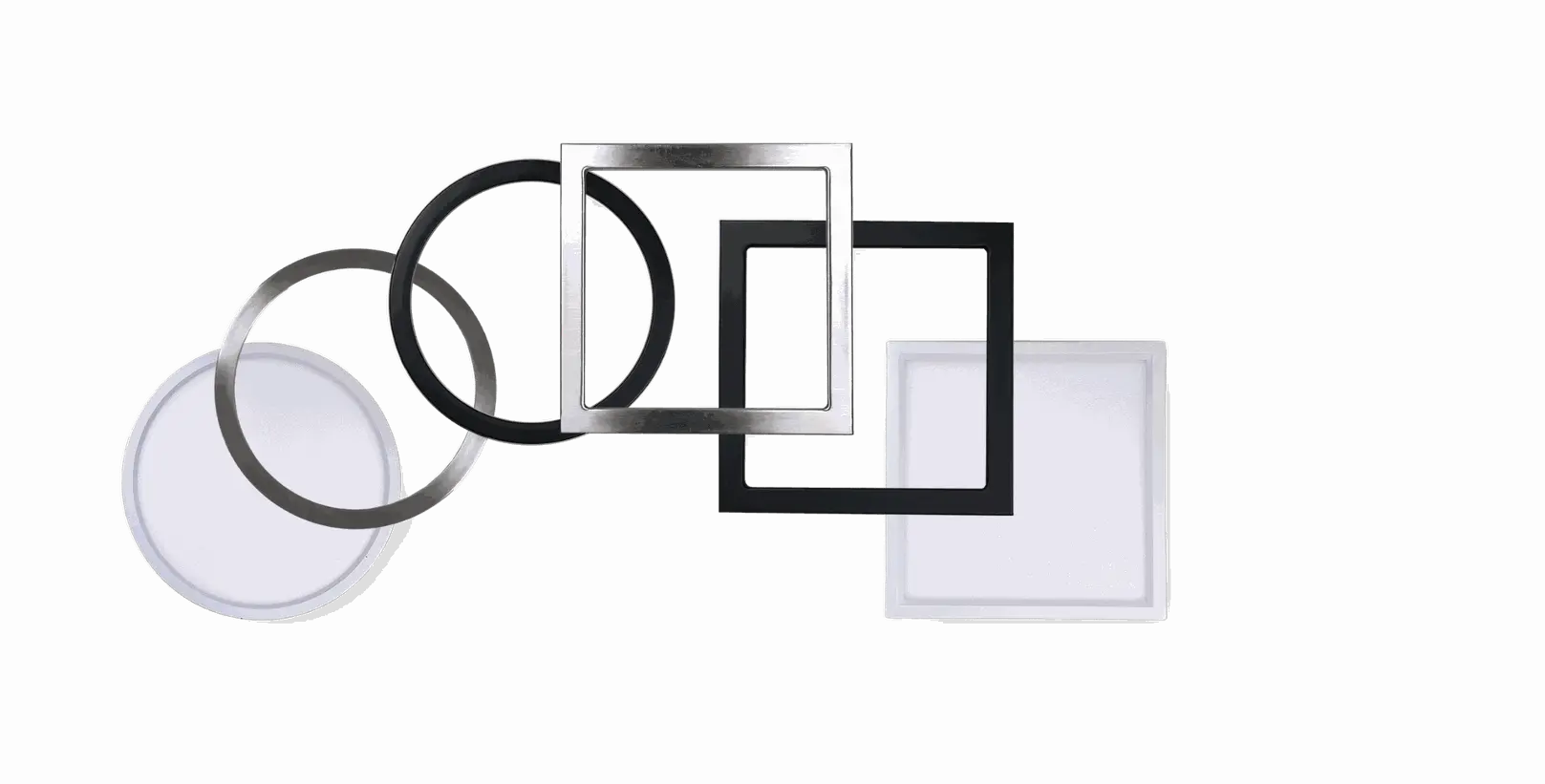

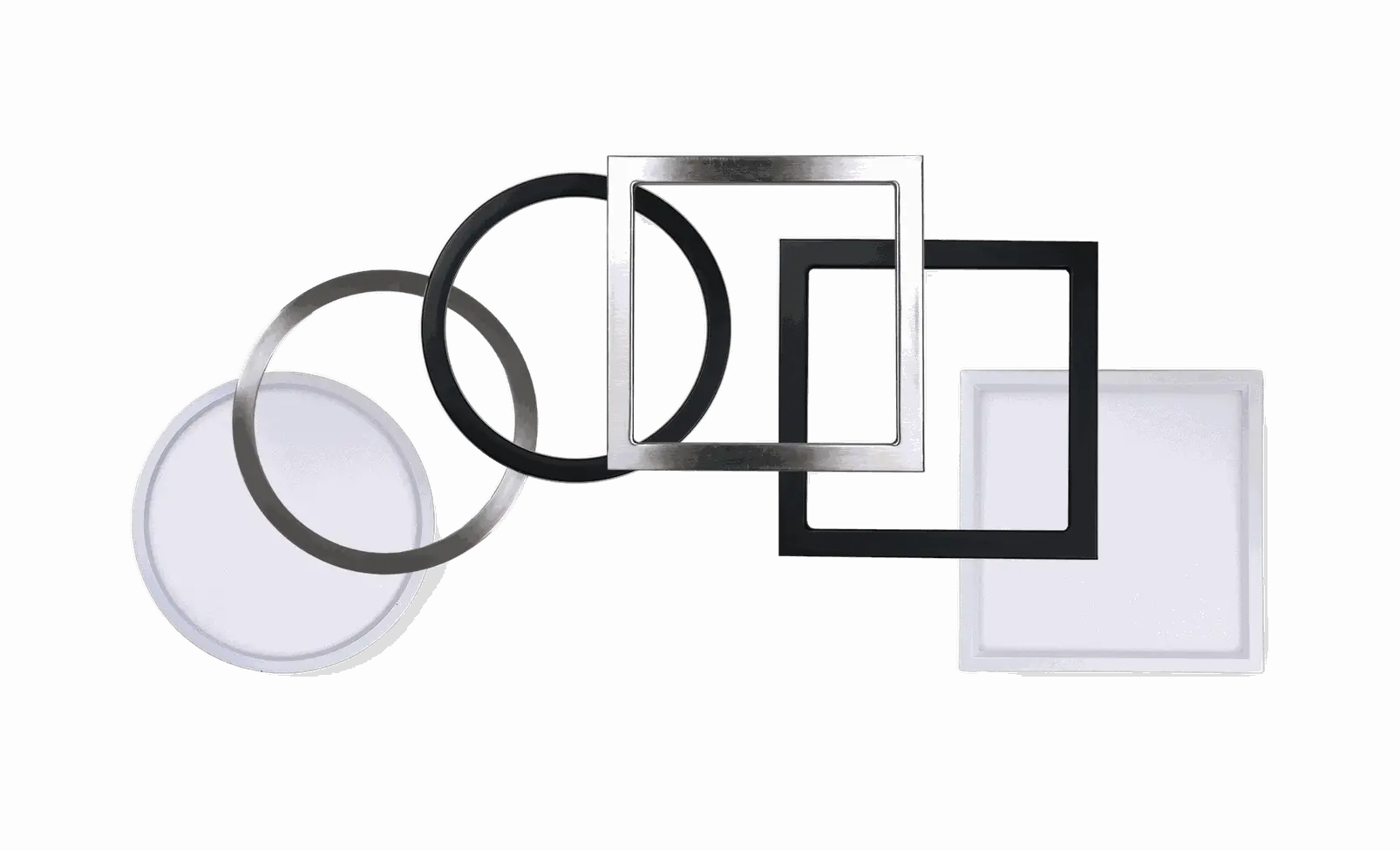

Swap, match, and refresh any space with interchangeable trims available in Matte Black or Brushed Nickel finishes.

STYLE ON DEMAND

Personnalisez le style de n’importe quel espace au moyen de garnitures interchangeables au fini noir mat ou nickel brossé.

STYLE À LA DEMANDE

STYLE ON DEMAND

Swap, match, and refresh any space with interchangeable trims available in Matte Black or Brushed Nickel finishes.

KEY FEATURES

Ultra-slim profile minimizes overhead obstructions and are suitable for low ceiling applications

Available in 5”, 7”, 9”, 12”, 15” 19”*

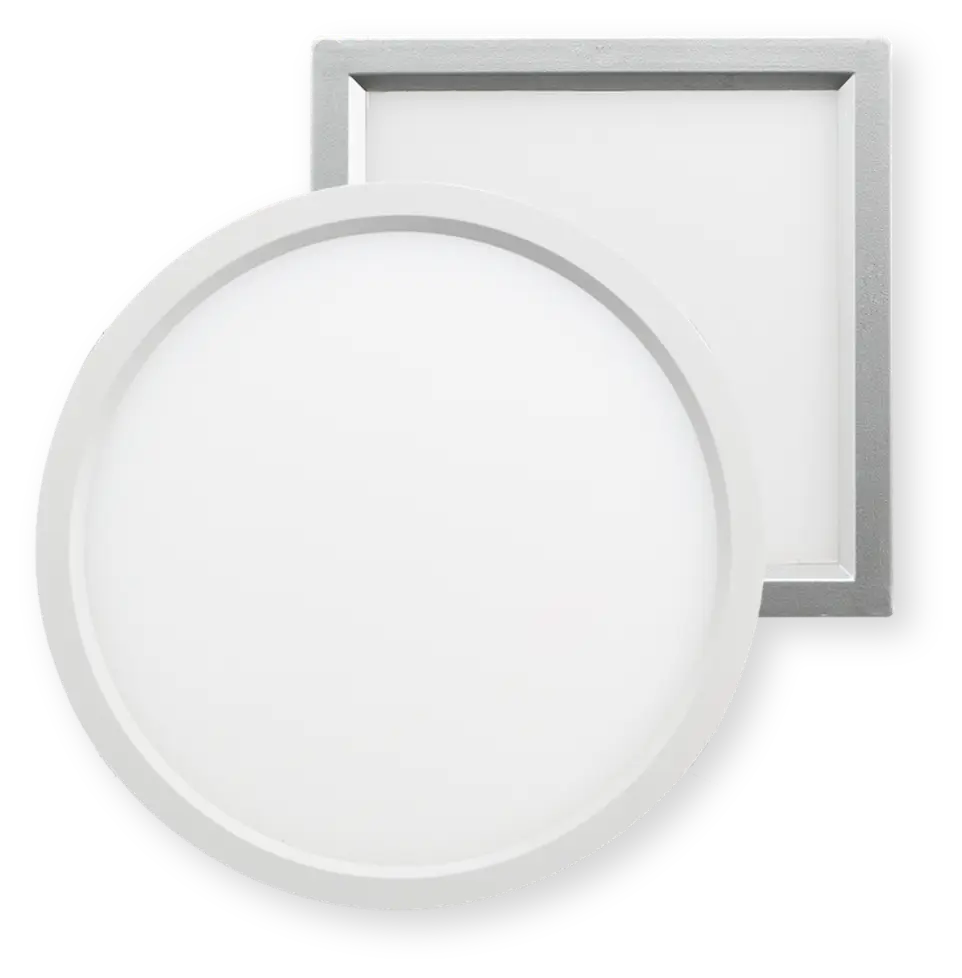

Round and Square** designs

Optional colored trim (Black or Brushed Nickel) accessories for design flexibility

Translucent, glare-free lens for soft, comfortable light



5 CCT Selectable built-in (27/30/35/40/5000K)
and >80 CRI

TRIAC Dimming for a wide range of dimmer compatibility

IC-rated direct contact with insulation

Wet location rated for use in bathrooms and
outdoor spaces

*    19” size only available in Brushed Nickel
**   Square design not available in 15”

PRINCIPALES CARACTÉRISTIQUES

Profil ultramince qui réduit au maximum les obstructions en hauteur et convient aux plafonds bas

Modèles de 12,7 cm (5 po), 17,78 cm (7 po), 22,86 cm (9 po), 30,48 cm (12 po), 38,1 cm (15 po) et 48,26 cm (19 po)* offerts

Conceptions rondes et carrées**

Accessoires de garniture colorés (noir ou nickel brossé) en option pour une plus grande souplesse lors de la conception

Lentille translucide sans éblouissement pour une lumière douce et agréable



5 TCP sélectionnables intégrées (2 700/3 000/3 500/4 000/5 000 K) et IRC > 80

Gradation à triac pour une compatibilité avec une vaste gamme de gradateurs

Produit homologué IC pouvant être en contact direct avec les isolants

Pour les emplacements mouillés (salles de bains et espaces extérieurs)

*   Modèle de 48,26 cm (19 po) uniquement offert avec fini nickel brossé
**   Conception carrée non offerte pour le modèle de 38,1 cm (15 po)

KEY FEATURES

Ultra-slim profile minimizes overhead obstructions and are suitable for low ceiling applications

Available in 5”, 7”, 9”, 12”, 15” 19”*

Round and Square** designs

Optional colored trim (Black or Brushed Nickel) accessories for design flexibility

Translucent, glare-free lens for soft, comfortable light

5 CCT Selectable built-in (27/30/35/40/5000K)
and >80 CRI

TRIAC Dimming for a wide range of dimmer compatibility

IC-rated direct contact with insulation

Wet location rated for use in bathrooms and outdoor spaces

*    19” size only available in Brushed Nickel
**   Square design not available in 15”

LOW PROFILE
HIGH IMPACT

Introducing the Sol Series Slim Surface Fixtures, a low profile surface mount fixture that brings a burst of illumination to any space. With a purpose-built design to simplify the installation process, they easily mount onto standard J-boxes, making them a perfect solution for retrofit and new build projects.

ALLURE DISCRÈTE ET
EFFET SAISISSANT

Voici les luminaires en saillie minces de série Sol, dont le profil bas permet d’illuminer n’importe quel espace. Conçus pour simplifier le processus d’installation, ils sont faciles à installer sur les boîtes de jonction standard, ce qui en fait une solution parfaite pour les projets de modernisation et de construction.

RECEPTION AREAS & LOBBIES


Elevate reception areas and lobbies with sleek, modern lighting that creates a welcoming and professional first impression. Their even, glare-free illumination ensures a comfortable atmosphere, enhancing visibility and setting a warm, inviting tone for visitors.

RESIDENTIAL / MULTI FAMILY SPACES


A modern, unobtrusive design complements a variety of interior styles while delivering bright, consistent lighting that enhances safety and accessibility in common areas and hallways.

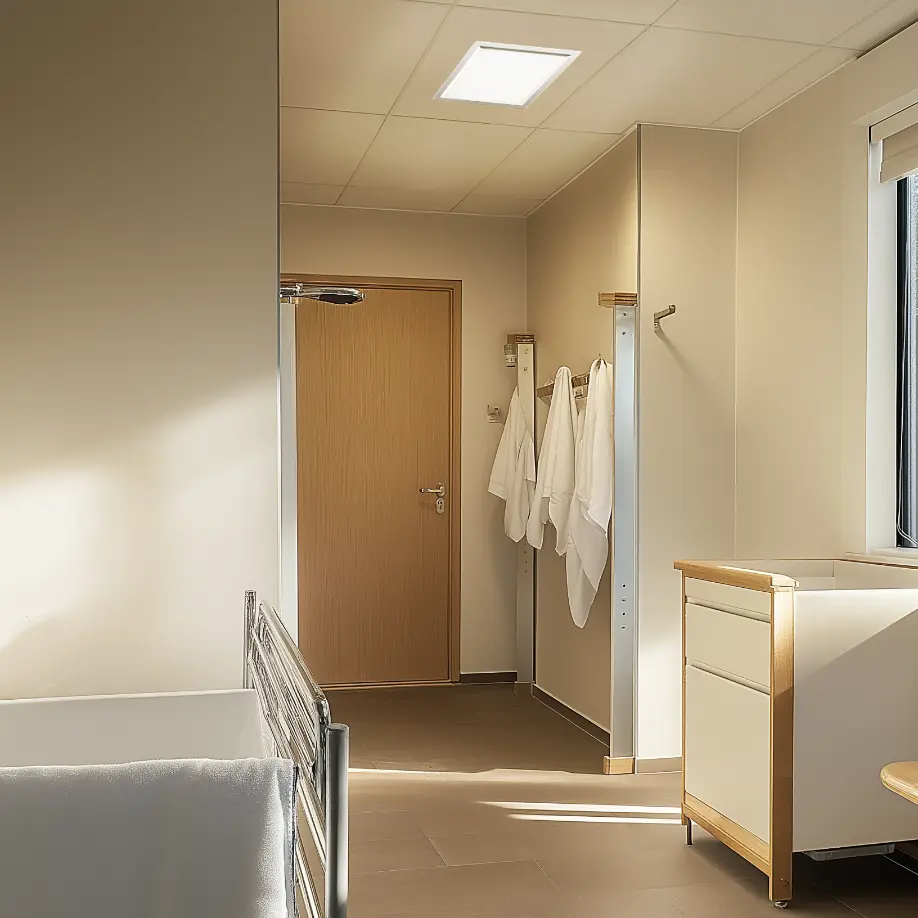

SENIOR LIVING COMMUNITIES


Provide soft, even lighting that reduces glare and enhances visibility, which is important for aging eyes. Combined with their sleek, low-profile design, ceiling clutter is minimized while offering reliable, energy-efficient illumination for safe and comfortable living spaces.

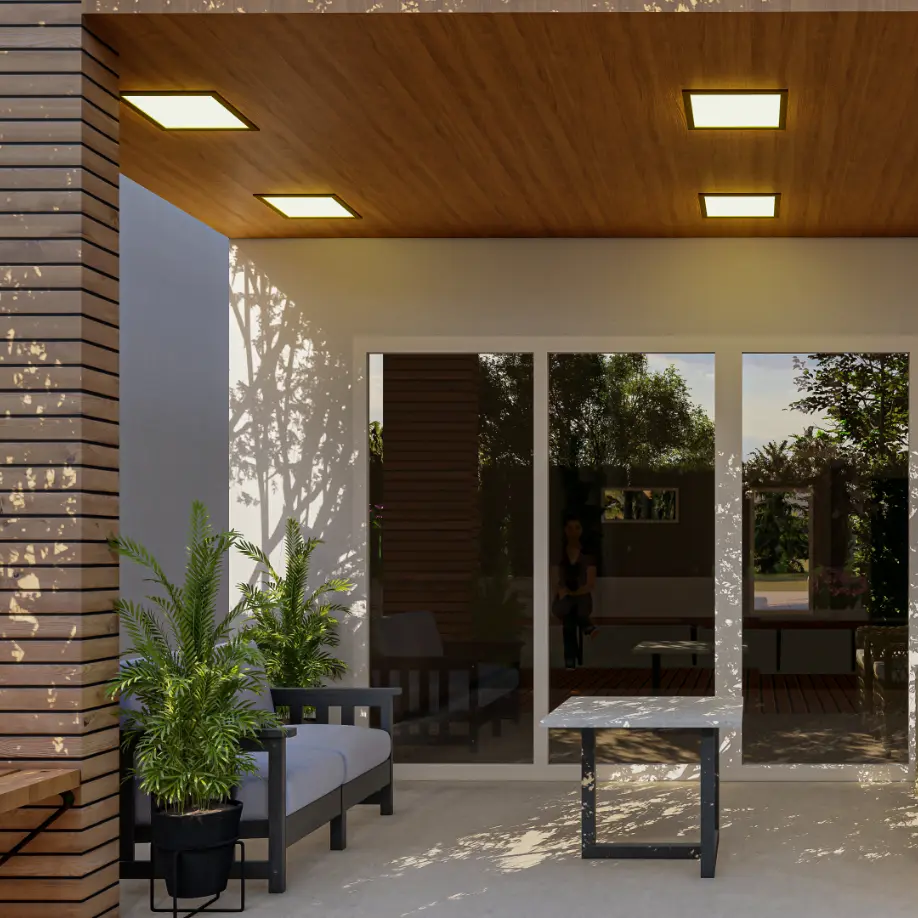

OUTDOOR & DAMP LOCATIONS


Bring reliable illumination to outdoor spaces such as covered patios and entryways with a low-profile design that minimizes obstructions and maintains a clean, streamlined look.

AIRES D’ACCUEIL ET HALLS D’ENTRÉE


Agrémentez les aires d’accueil et les halls d’entrée au moyen d’un éclairage élégant et moderne afin de leur conférer une apparence accueillante et professionnelle. Cet éclairage homogène sans éblouissement assure une atmosphère agréable, améliore la visibilité et donne une impression chaleureuse et accueillante aux visiteurs.

ESPACES RÉSIDENTIELS/ MULTIFAMILIAUX


La conception moderne et discrète convient à divers styles d’intérieur tout en offrant un éclairage lumineux et homogène permettant de rehausser la sécurité et l’accessibilité des aires communes et des couloirs.

COMMUNAUTÉS POUR PERSONNES ÂGÉES


Ces produits fournissent un éclairage doux et uniforme qui réduit l’éblouissement et améliore la visibilité, ce qui est important pour les personnes âgées. Grâce à leur conception élégante et discrète, ils sont très peu encombrants et offrent un éclairage fiable et écoénergétique en vue d’espaces de vie sécuritaires et agréables.

EMPLACEMENTS EXTÉRIEURS ET HUMIDES


Pour vos espaces extérieurs comme les terrasses couvertes et les entrées, optez pour cet éclairage fiable à conception discrète qui réduit au maximum les obstructions et permet de maintenir un aspect net et épuré.

RECEPTION AREAS & LOBBIES


Elevate reception areas and lobbies with sleek, modern lighting that creates a welcoming and professional first impression. Their even, glare-free illumination ensures a comfortable atmosphere, enhancing visibility and setting a warm, inviting tone for visitors.

RESIDENTIAL / MULTI FAMILY SPACES


A modern, unobtrusive design complements a variety of interior styles while delivering bright, consistent lighting that enhances safety and accessibility in common areas and hallways.

SENIOR LIVING COMMUNITIES


Provide soft, even lighting that reduces glare and enhances visibility, which is important for aging eyes. Combined with their sleek, low-profile design, ceiling clutter is minimized while offering reliable, energy-efficient illumination for safe and comfortable living spaces.

OUTDOOR & DAMP LOCATIONS


Bring reliable illumination to outdoor spaces such as covered patios and entryways with a low-profile design that minimizes obstructions and maintains a clean, streamlined look.

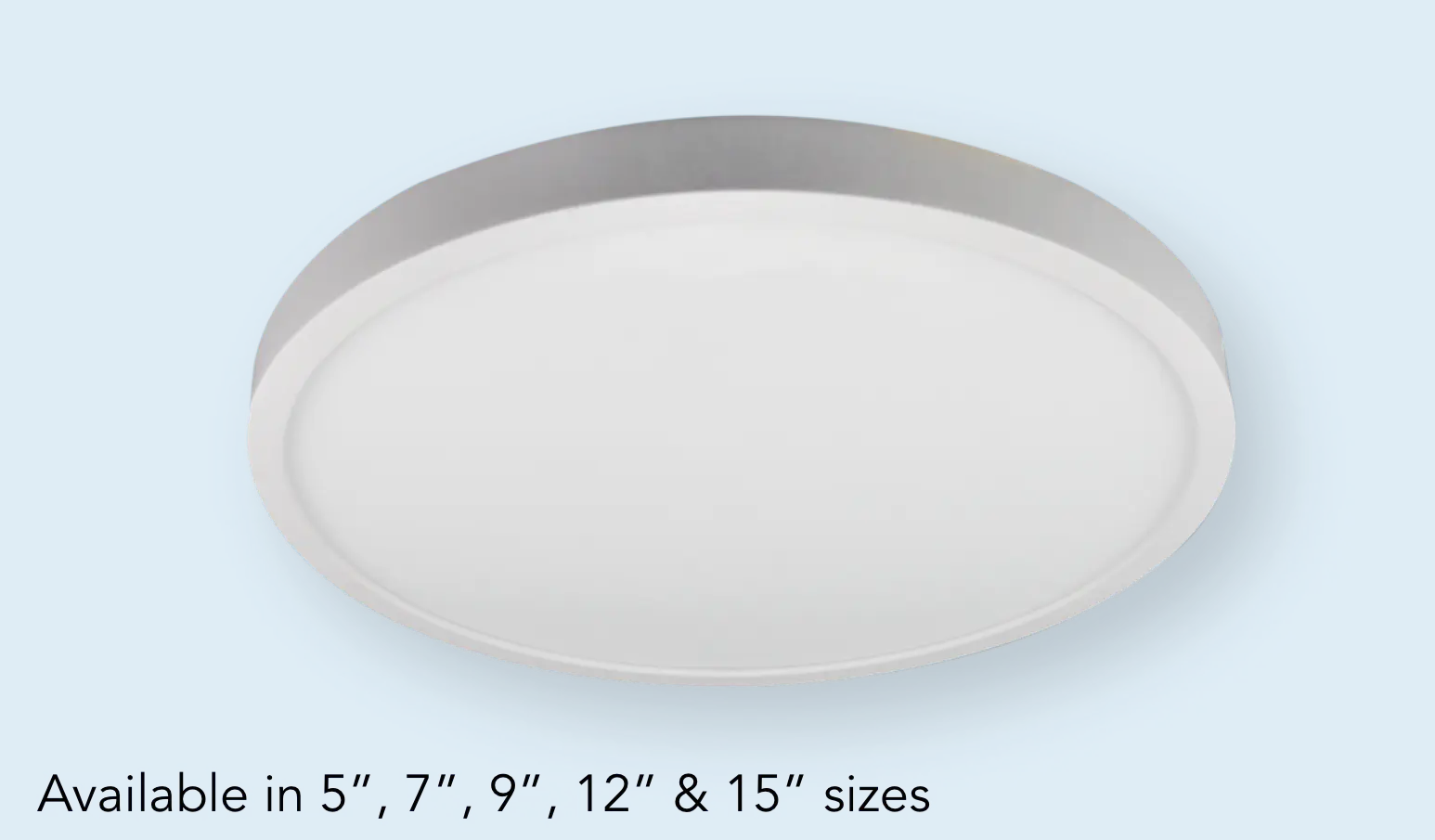

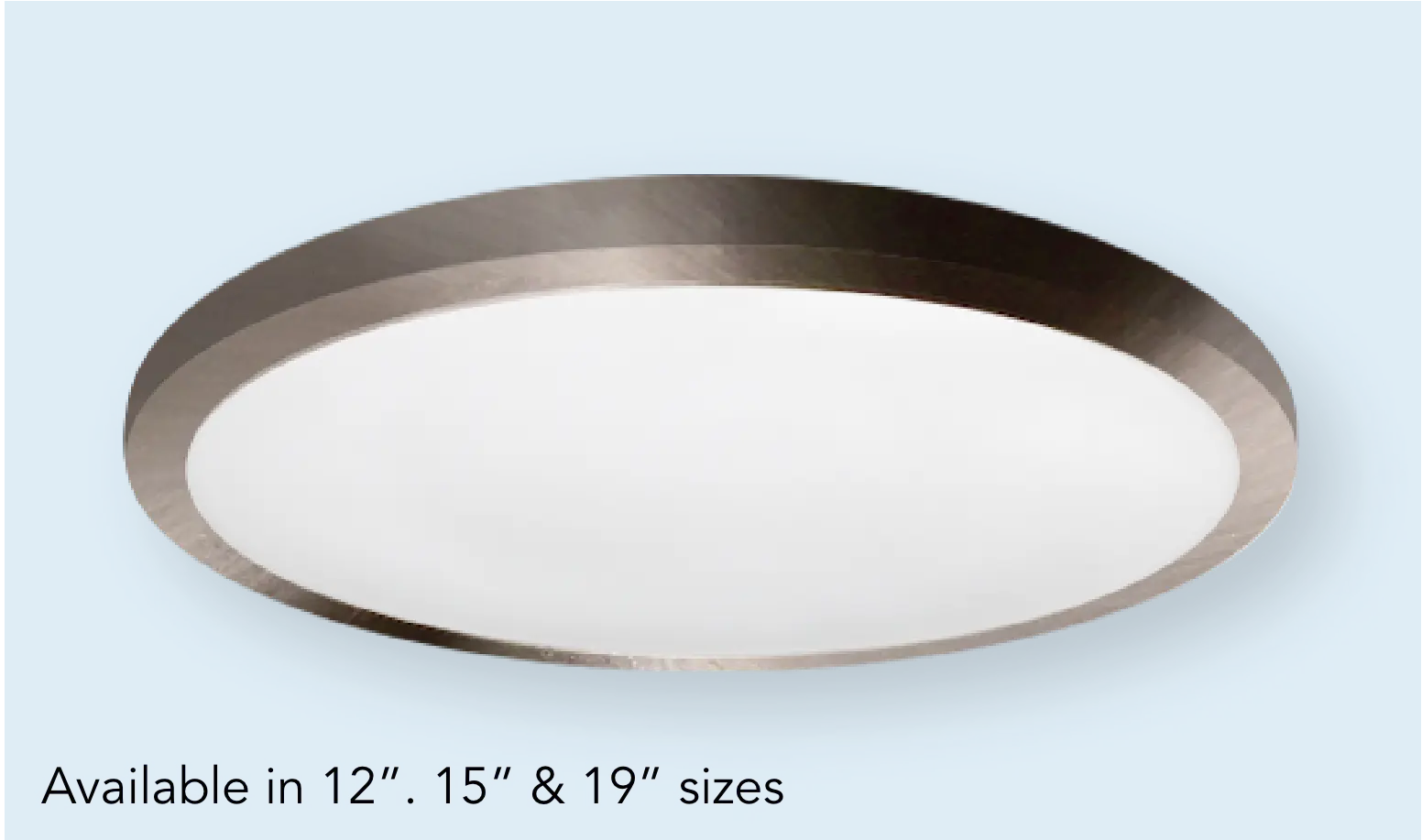

ROUND SLIM SURFACE FIXTURES

LUMINAIRES EN SAILLIE MINCES RONDS


ROUND SLIM SURFACE FIXTURES

Order #

Model Number

Finish

White
White
White
White
Brushed Nickel
White
Brushed Nickel
Brushed Nickel

Diameter

5.0”
7.0”
9.0”
12.0”
12.0”
15.0”
15.0”
19.0”


Wattage

10W
15W
18W
22W
22W
30W
30W
35W

Voltage

120V
120V
120V
120V
120V
120V
120V
120V

CCT

27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K

Lumens

600 lm
900 lm
1,150 lm
1,450 lm
1,450 lm
2,000 lm
2,000 lm
2,000 lm


>80
>80
>80
>80
>80
>80
>80
>80

CRI



Dimming

TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC


Modèle

Fini

Blanc
Blanc
Blanc
Blanc
Nickel brossé
Blanc
Nickel brossé
Nickel brossé

Dimensions

5 po
7 po
9 po
12 po
12 po
15 po
15 po
19 po


Puissance

10 W
15 W
18 W
22 W
22 W
30 W
30 W
35 W

Tension

120 V
120 V
120 V
120 V
120 V
120 V
120 V
120 V

TCP

27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K

Lumens

600 lm
900 lm
1 150 lm
1 450 lm
1 450 lm
2 000 lm
2 000 lm
2 000 lm


>80
>80
>80
>80
>80
>80
>80
>80

IRC



À intensité variable

TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC

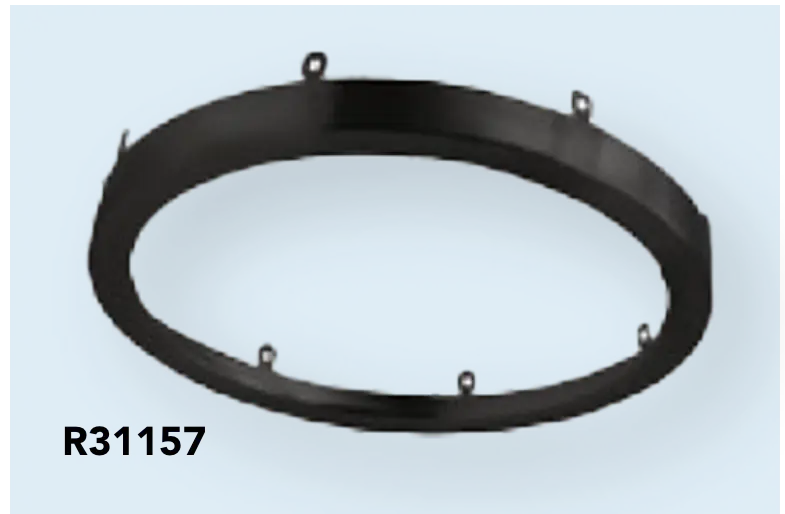

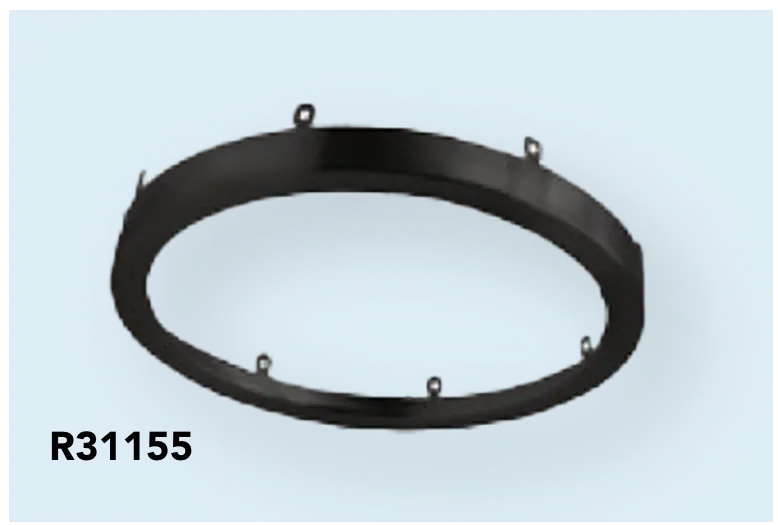

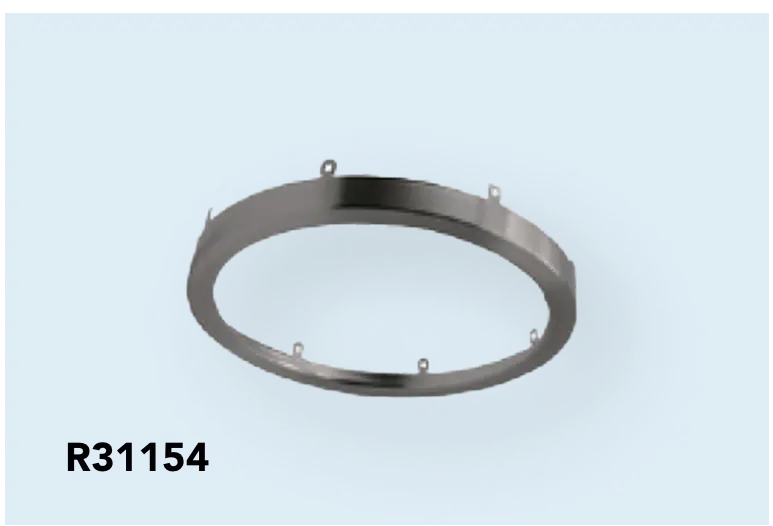

ACCESSORIES

ACCESSOIRES

ACCESSORIES

Order #

Model Number

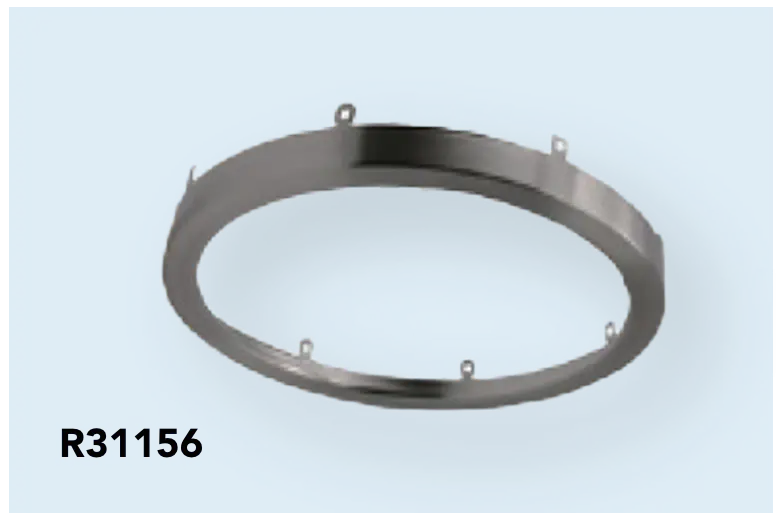

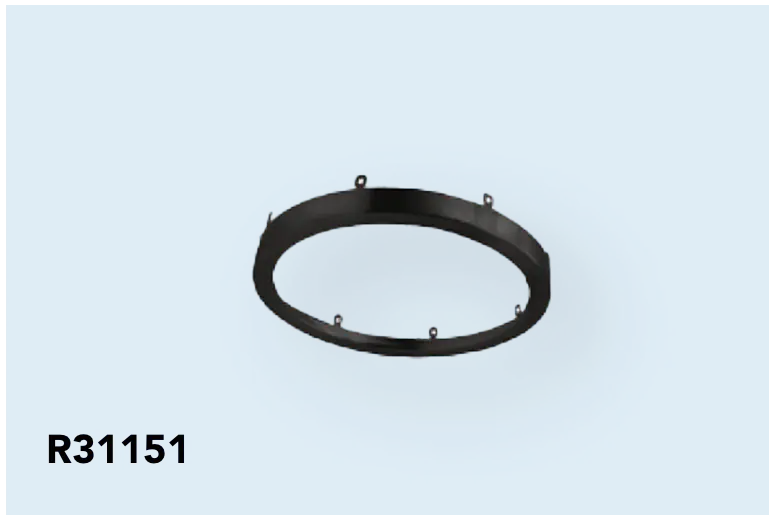

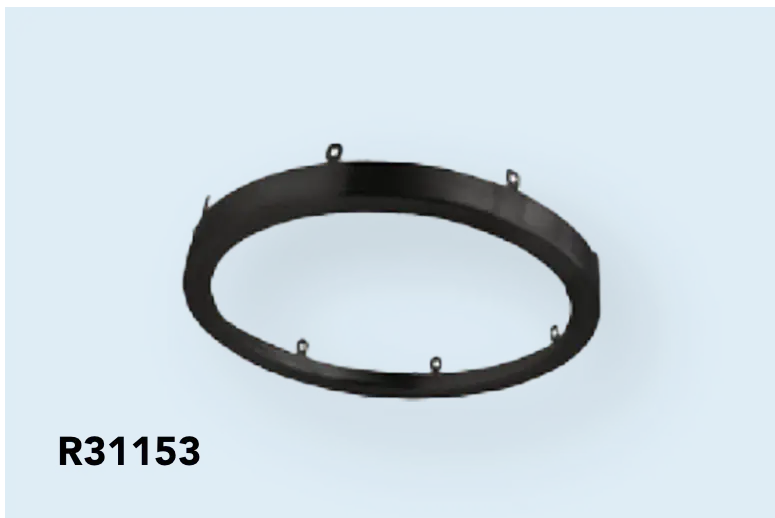

Black 5” round trim

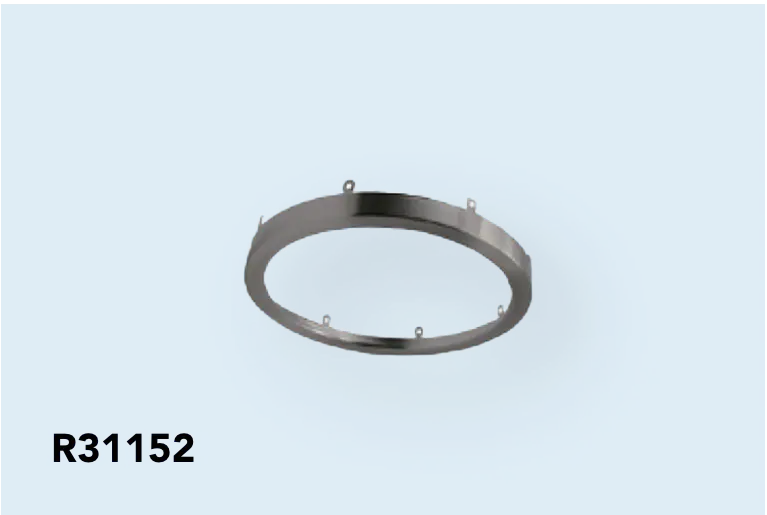

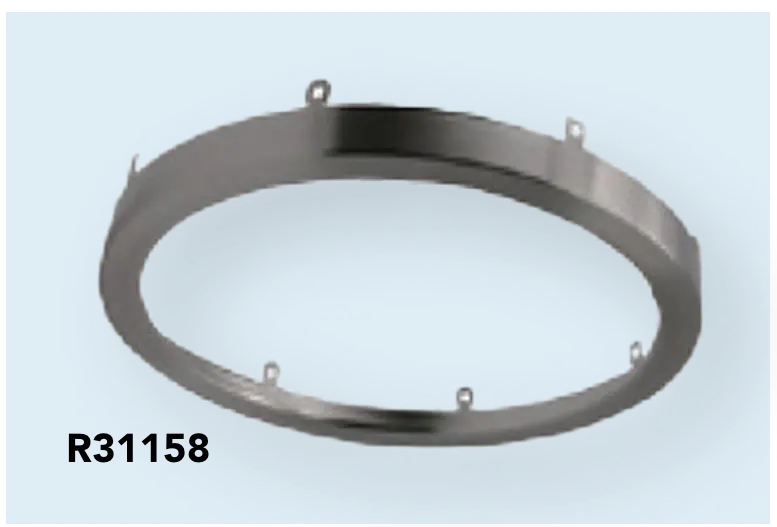

Brushed Nickel 5” round trim
Black 7” round trim
Brushed Nickel 7” round trim
Black 9” round trim
Brushed Nickel 9” round trim
Black 12” round trim
Brushed Nickel 12” round trim

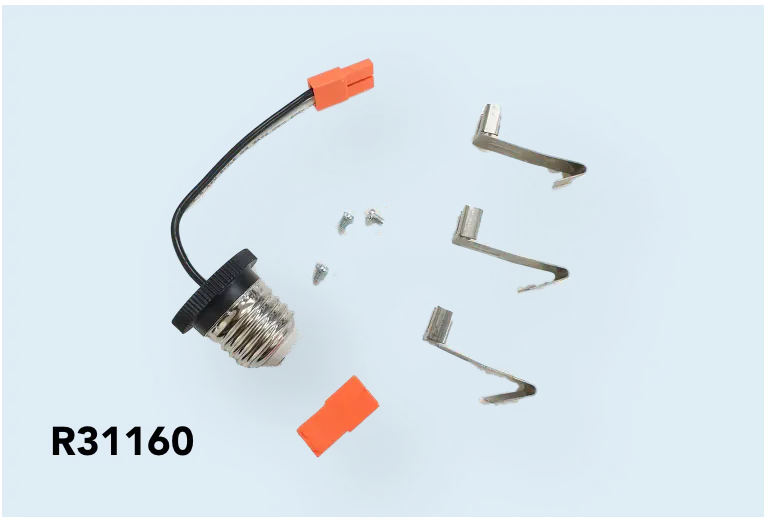

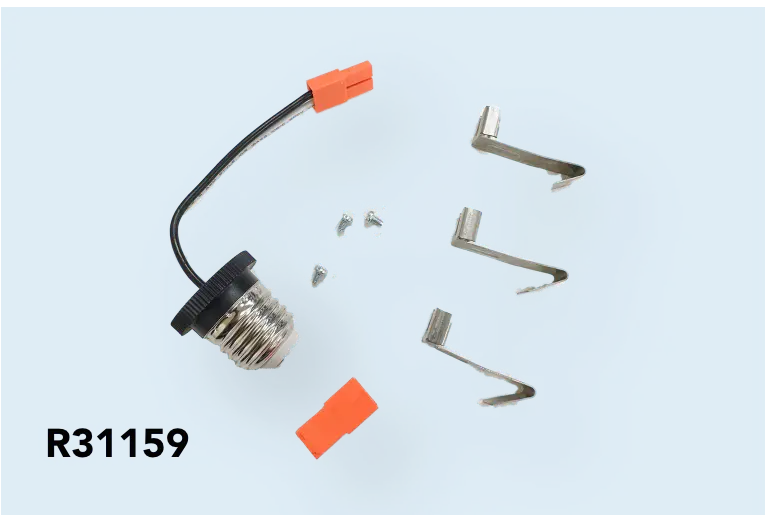

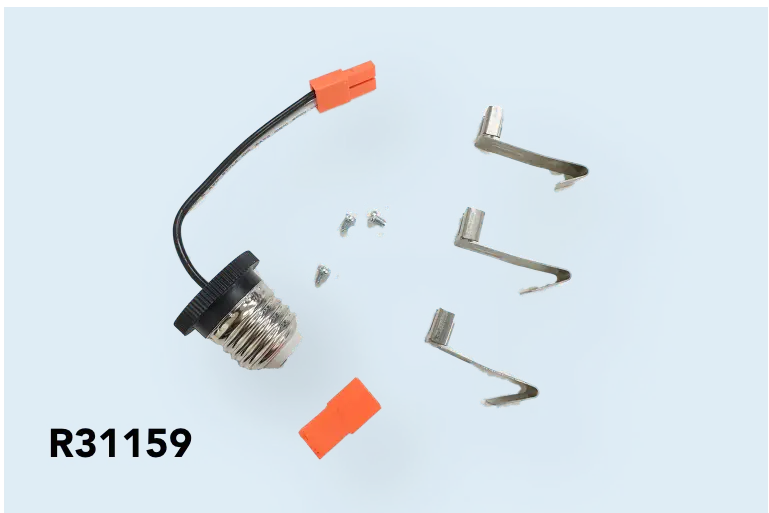

Components for 4” New Construction & Remodel Housing with E26 base converter
Components for 5”/6” New Construction & Remodel Housing with E26 base converter

Description


Modèle



Garniture ronde de 12,7 cm (5 po) au fini noir
Garniture ronde de 12,7 cm (5 po) au fini nickel brossé
Garniture ronde de 17,78 cm (7 po) au fini noir
Garniture ronde de 17,78 cm (7 po) au fini nickel brossé

Garniture ronde de 22,86 cm (9 po) au fini noir

Garniture ronde de 22,86 cm (9 po) au fini nickel brossé

Garniture ronde de 30,48 cm (12 po) au fini noir

Garniture ronde de 30,48 cm (12 po) au fini nickel brossé

Composants pour boîtier de 10,16 cm (4 po) pour construction et remaniement avec convertisseur de base E26

Composants pour boîtier de 12,7 cm (5 po)/15,24 cm (6 po) pour construction et remaniement avec convertisseur de base E26


Description

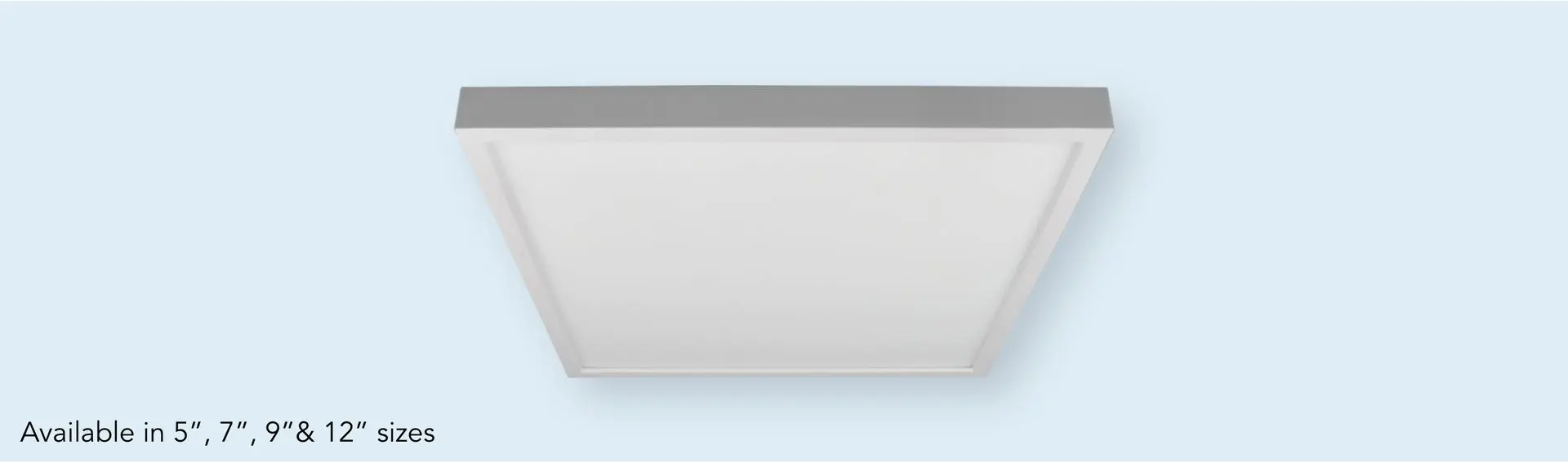

SQUARE SLIM SURFACE FIXTURES

LUMINAIRES EN SAILLIE MINCES CARRÉS


SQUARE SLIM SURFACE FIXTURES


Modèle

Finish

White
White
White
White

Diameter

5.0"
7.0"
9.0"
12.0"


Wattage

10W
15W
18W
22W​

Voltage

120V
120V
120V
120V​

CCT

27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K
27/30/35/40/5000K

Lumens

600 lm
900 lm
1,150 lm
1,450 lm


>80
>80
>80
>80

CRI



Dimming

TRIAC
TRIAC
TRIAC
TRIAC


Modèle

Fini

Blanc
Blanc
Blanc
Blanc

Dimensions

5 po
7 po
9 po
12 po


Puissance

10 W
15 W
18 W
22 W​

Tension

120 V
120 V
120 V
120 V​

TCP

27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000 K
27 / 30 / 35 / 40 / 5 000.K
27 / 30 / 35 / 40 / 5 000 K

Lumens

600 lm
900 lm
1 150 lm
1 450 lm


>80
>80
>80
>80

IRC



À intensité variable

TRIAC
TRIAC
TRIAC
TRIAC

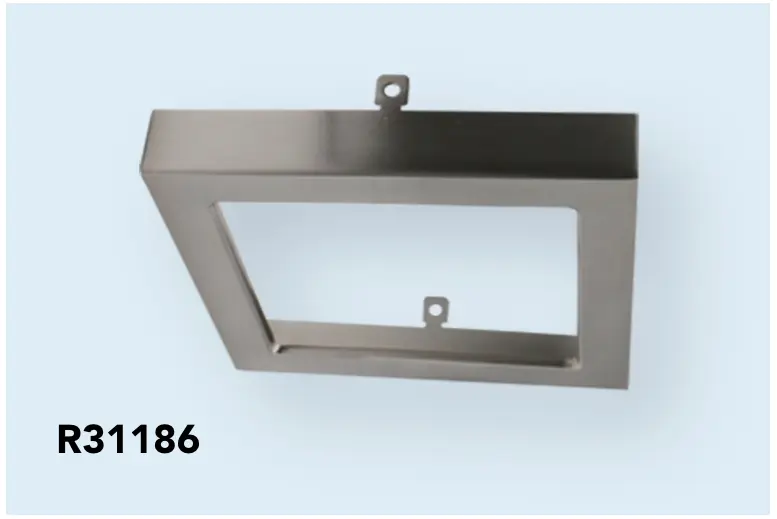

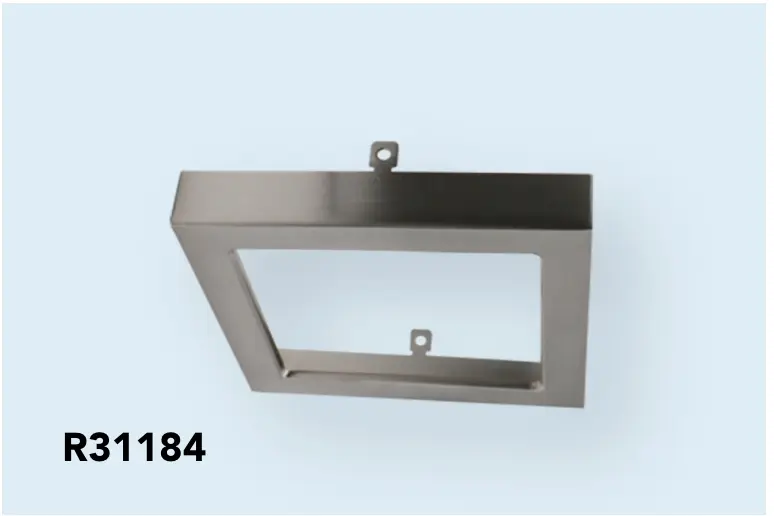

ACCESSORIES

ACCESSOIRES

ACCESSORIES

Order #

Model Number

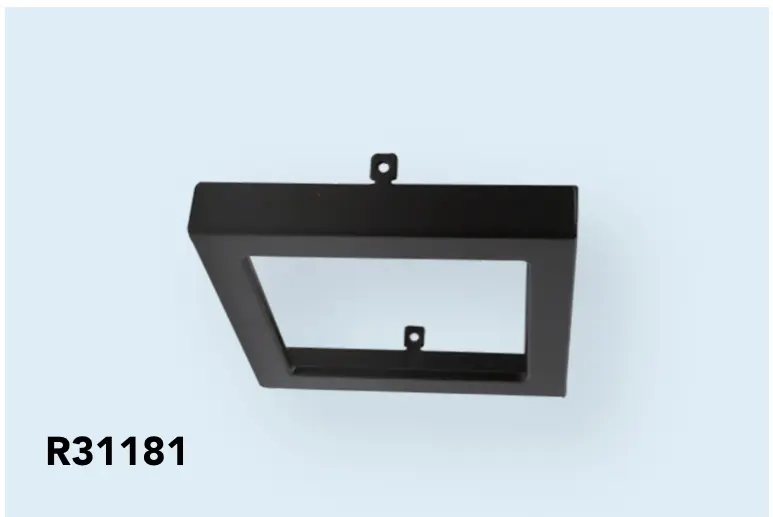

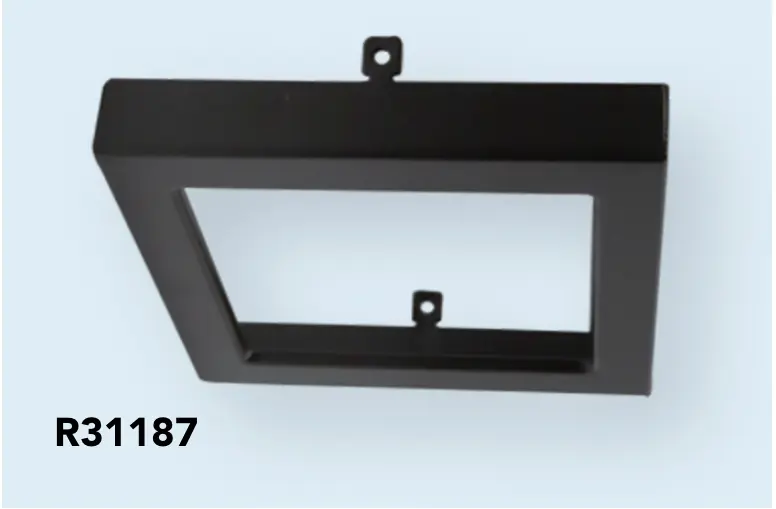

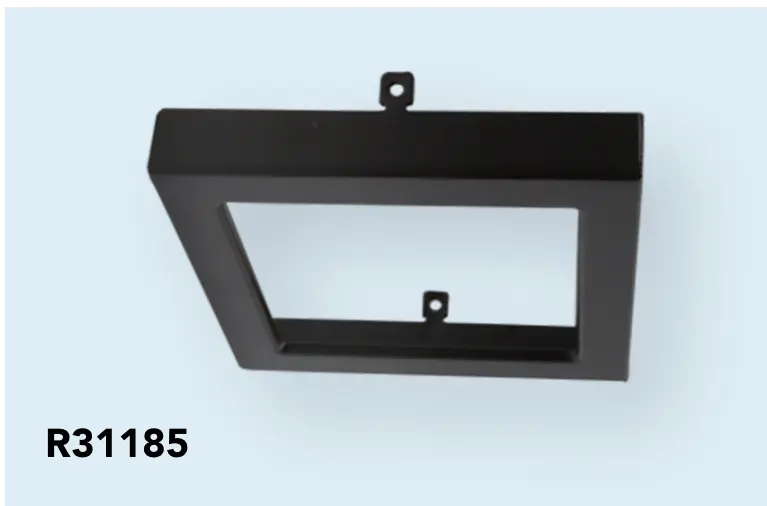

Black 5” square trim

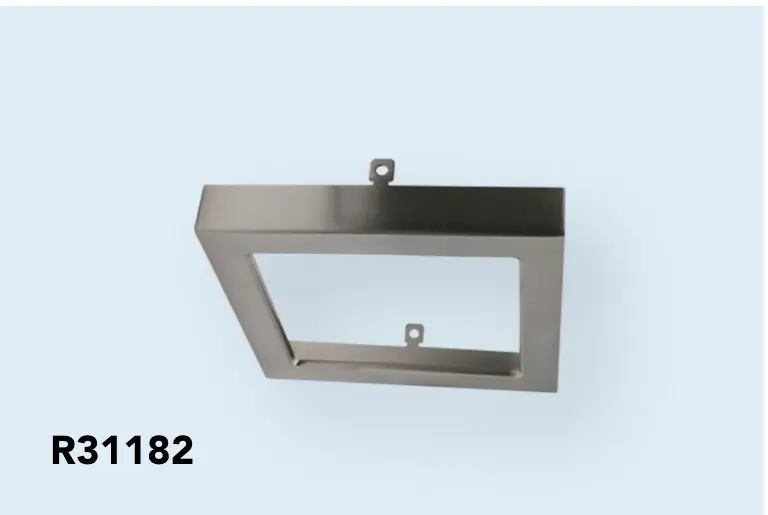

Brushed Nickel 5” square trim

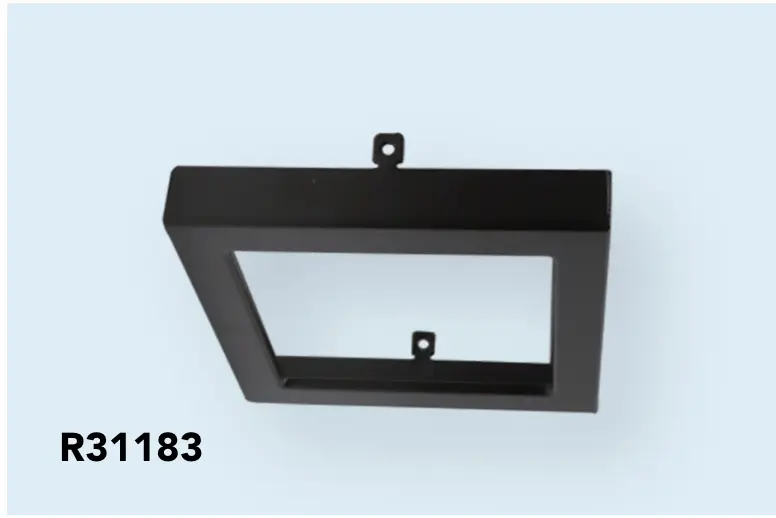

Black 7” square trim
Brushed Nickel 7” square trim
Black 9” square trim
Brushed Nickel 9” square trim
Black 12” square trim
Brushed Nickel 12” square trim
Components for 4” New Construction & Remodel Housing with E26 base converter
Components for 5”/6” New Construction & Remodel Housing with E26 base converter

Description


Modèle

Garniture carrée de 12,7 cm (5 po) au fini noir
Garniture carrée de 12,7 cm (5 po) au fini nickel brossé
Garniture carrée de 17,78 cm (7 po) au fini noir
Garniture carrée de 17,78 cm (7 po) au fini nickel brossé
Garniture carrée de 22,86 cm (9 po) au fini noir
Garniture carrée de 22,86 cm (9 po) au fini nickel brossé
Garniture carrée de 30,48 cm (12 po) au fini noir
Garniture carrée de 30,48 cm (12 po) au fini nickel brossé
Composants pour boîtier de 10,16 cm (4 po) pour construction et remaniement avec convertisseur de base E26 Composants pour boîtier de 12,7 cm (5 po)/15,24 cm (6 po) pour construction et remaniement avec convertisseur de base E26

Description
