RENO-WHWR4-DV-MW-MCCT
RENO-WHWR4-DV-MW-MCCT
ORDER NO #
R38021
SERIES:
HELIOS SERIES

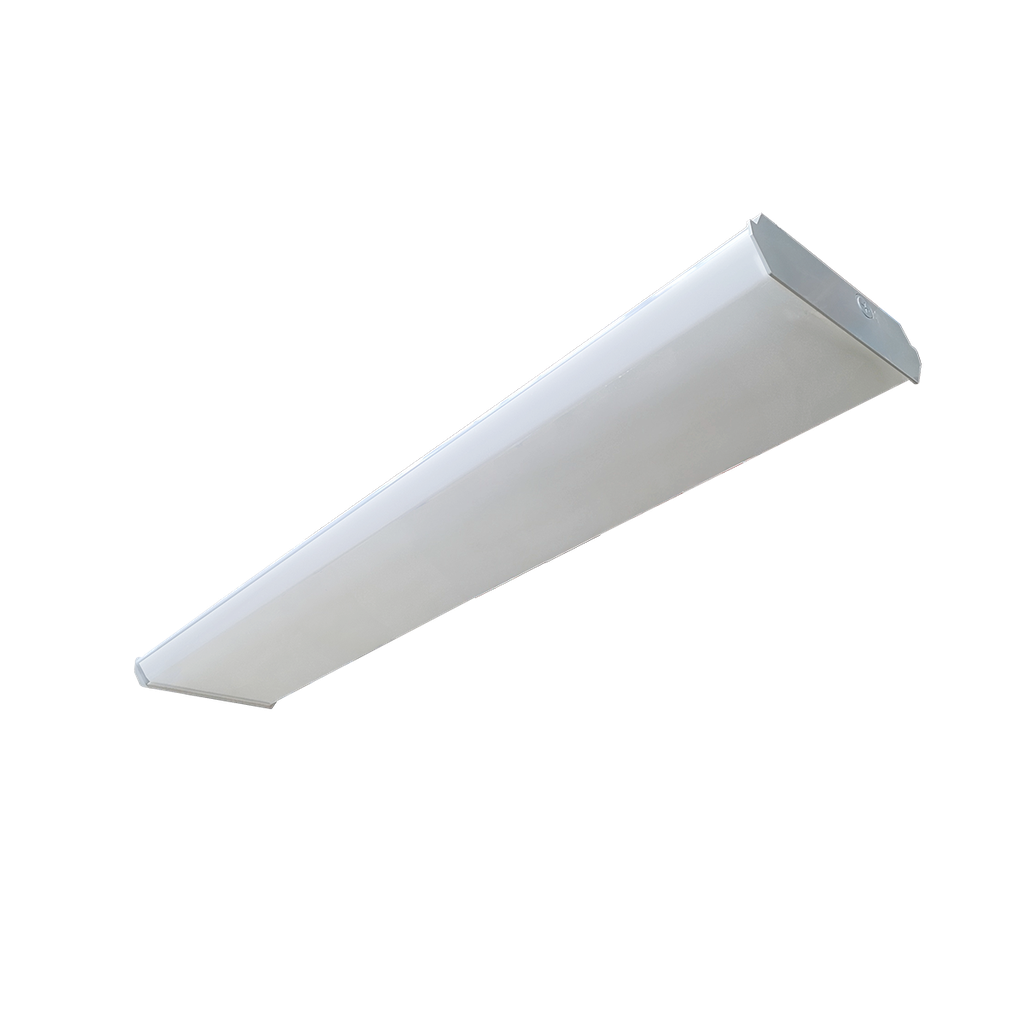

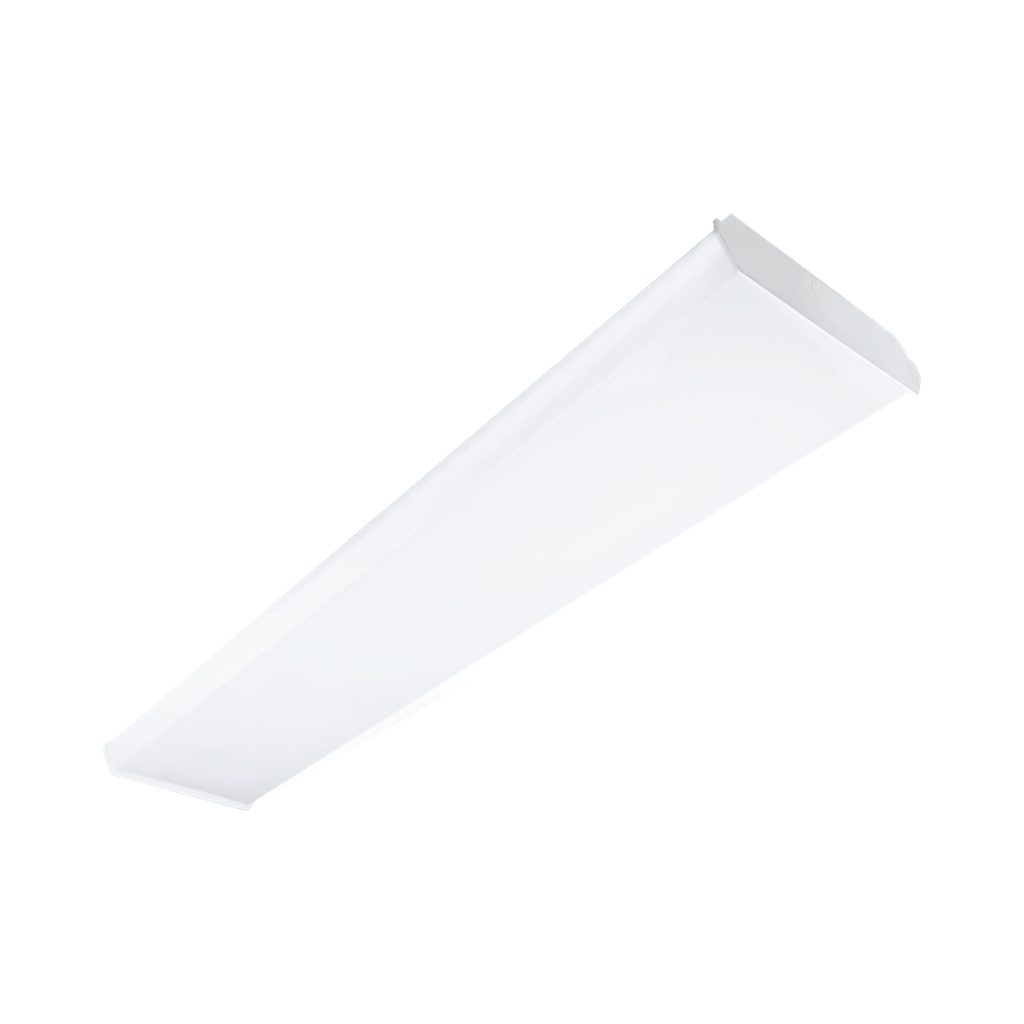

WIDE BODY WRAP AROUND FIXTURE | 4FT | 3500/4000/5000K Selectable CCT | 30/40/50/60W Selectable Wattage | 120-347V | 0-10V Dimming | 143lms/W |
REBATE
Specifications
| Reno Collection |
PRIME
|
| MOL |
4ft
|
| Power (W) |
30/40/50/60W
|
| Efficacy |
Up to 143lms/W
|
| Lumens |
4290/5680/7050/8400lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
70,000hrs
|
| Finish |
White
|

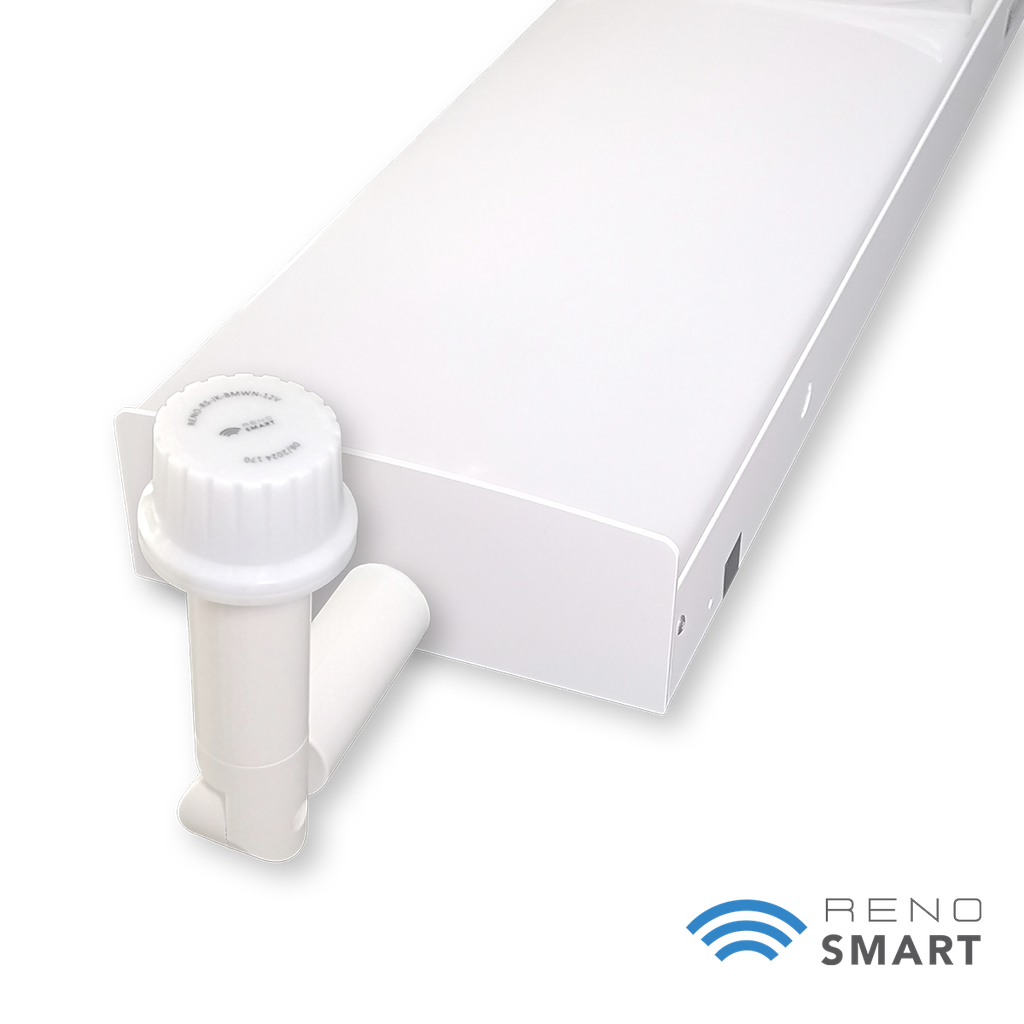

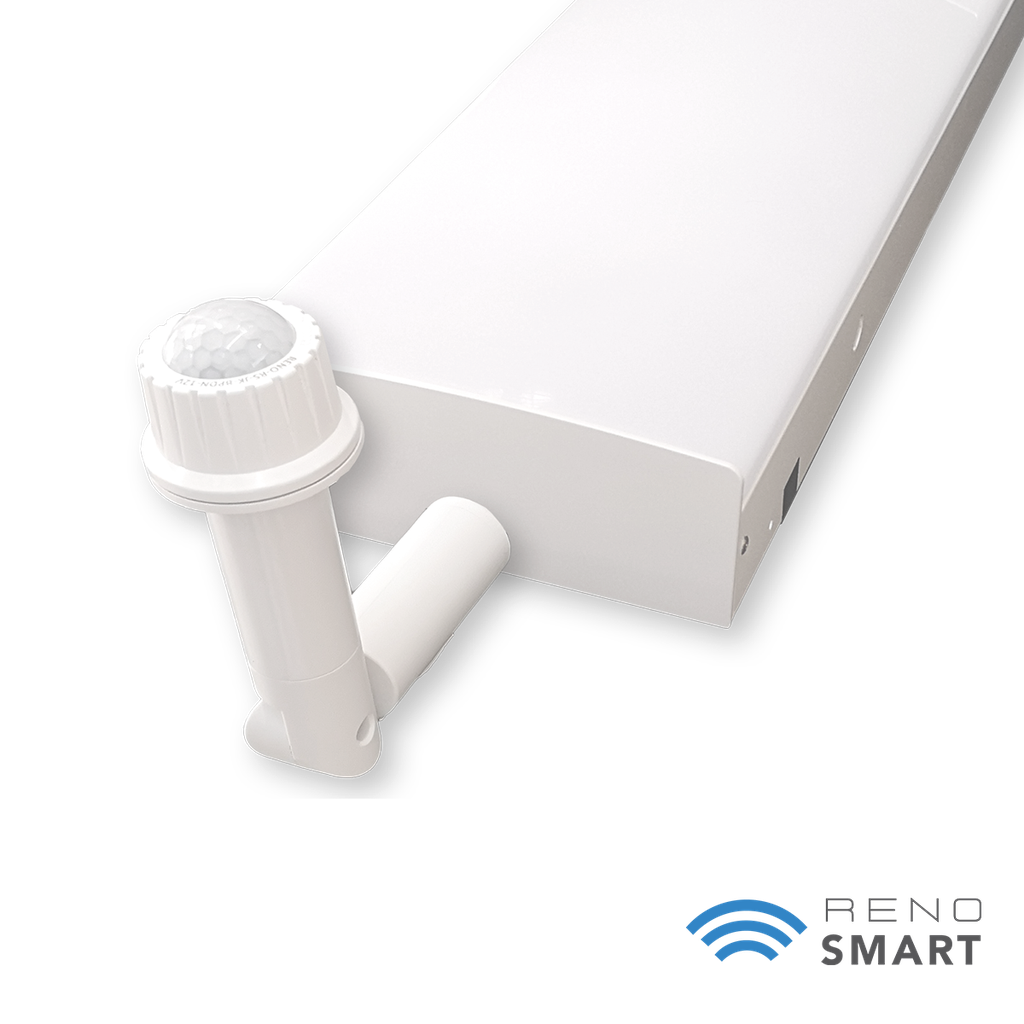

| RENO Smart Compatible |
Yes
|
| DLC Standard: Direct Linear Ambient Luminaires |
S-MTRPBQ
|
| DLC Premium: Low-Bay Luminaires |
S-NWTSGP
|
| DLC Premium: Stairwell and Passageway |
S-17P43M
|
| Box QTY |
1
|
| Shipping Dimensions |
50"x12"x3.5" - 8lbs
|
Specifications
| Reno Collection |
PRIME
|
| MOL |
4ft
|
| Power (W) |
30/40/50/60W
|
| Efficacy |
Up to 143lms/W
|
| Lumens |
4290/5680/7050/8400lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
70,000hrs
|
| Finish |
White
|
| RENO Smart Compatible |
Yes
|
| DLC Standard: Direct Linear Ambient Luminaires |
S-MTRPBQ
|
| DLC Premium: Low-Bay Luminaires |
S-NWTSGP
|
| DLC Premium: Stairwell and Passageway |
S-17P43M
|
| Box QTY |
1
|
| Shipping Dimensions |
50"x12"x3.5" - 8lbs
|
