RENO-HWR2-DV-MW-MCCT-MS-ECO(2FT)
RENO-HWR2-DV-MW-MCCT-MS-ECO(2FT)
ORDER NO #
R38006
SERIES:
HELIOS SERIES

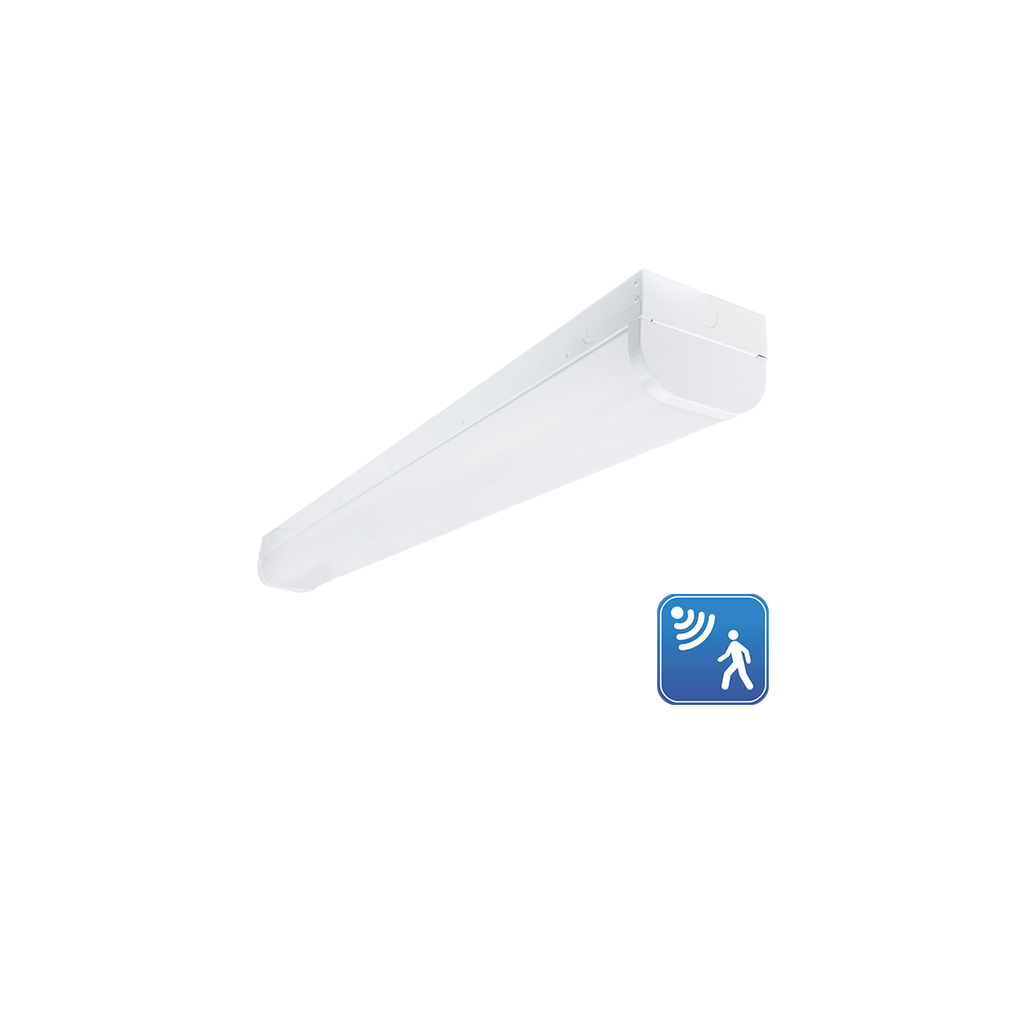

ECO WRAP AROUND FIXTURE with Integrated Microwave Sensor | 2FT | 3500/4000/5000K Selectable CCT | 15/20/25W Selectable Wattage | 120-347V | 0-10V Dimming | **Must purchase a remote to configure sensor settings**
Specifications
Reno Collection |
ECO
|
Size |
2ft
|
Power (W) |
15/20/25W
|
Efficacy |
Up to 148.4 lm/W
|
Lumens |
1950/2600/ 3250 lm
|
Color Temperature (K) |
35/40/5000K
|
Voltage (V) |
120-347V
|
CRI |
>80
|
Beam Angle (Degree) |
120°
|
Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
Dimmable |
0-10V
|
Lifespan (Hours) |
70,000hrs
|
Finish |
White
|
DLC Standard: Direct Linear Ambient Luminaires |
S-KGQD97
|
DLC Premium: Stairwell and Passageway |
S-CSQ3M9
|
Box QTY |
4
|
Shipping Dimensions |
Master Case: 25.5"x12"x9.5" - 12lbs Single Box: 24.5"x5.5"x4" - 3lbs
|
Specifications
Reno Collection |
ECO
|
Size |
2ft
|
Power (W) |
15/20/25W
|
Efficacy |
Up to 148.4 lm/W
|
Lumens |
1950/2600/ 3250 lm
|
Color Temperature (K) |
35/40/5000K
|
Voltage (V) |
120-347V
|
CRI |
>80
|
Beam Angle (Degree) |
120°
|
Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
Dimmable |
0-10V
|
Lifespan (Hours) |
70,000hrs
|
Finish |
White
|
DLC Standard: Direct Linear Ambient Luminaires |
S-KGQD97
|
DLC Premium: Stairwell and Passageway |
S-CSQ3M9
|
Box QTY |
4
|
Shipping Dimensions |
Master Case: 25.5"x12"x9.5" - 12lbs Single Box: 24.5"x5.5"x4" - 3lbs
|
