RENO-14BLPL-UNV/347-MWMCCT-ECO
RENO-14BLPL-UNV/347-MWMCCT-ECO
ORDER NO #
R35301
SERIES:
AIM SERIES

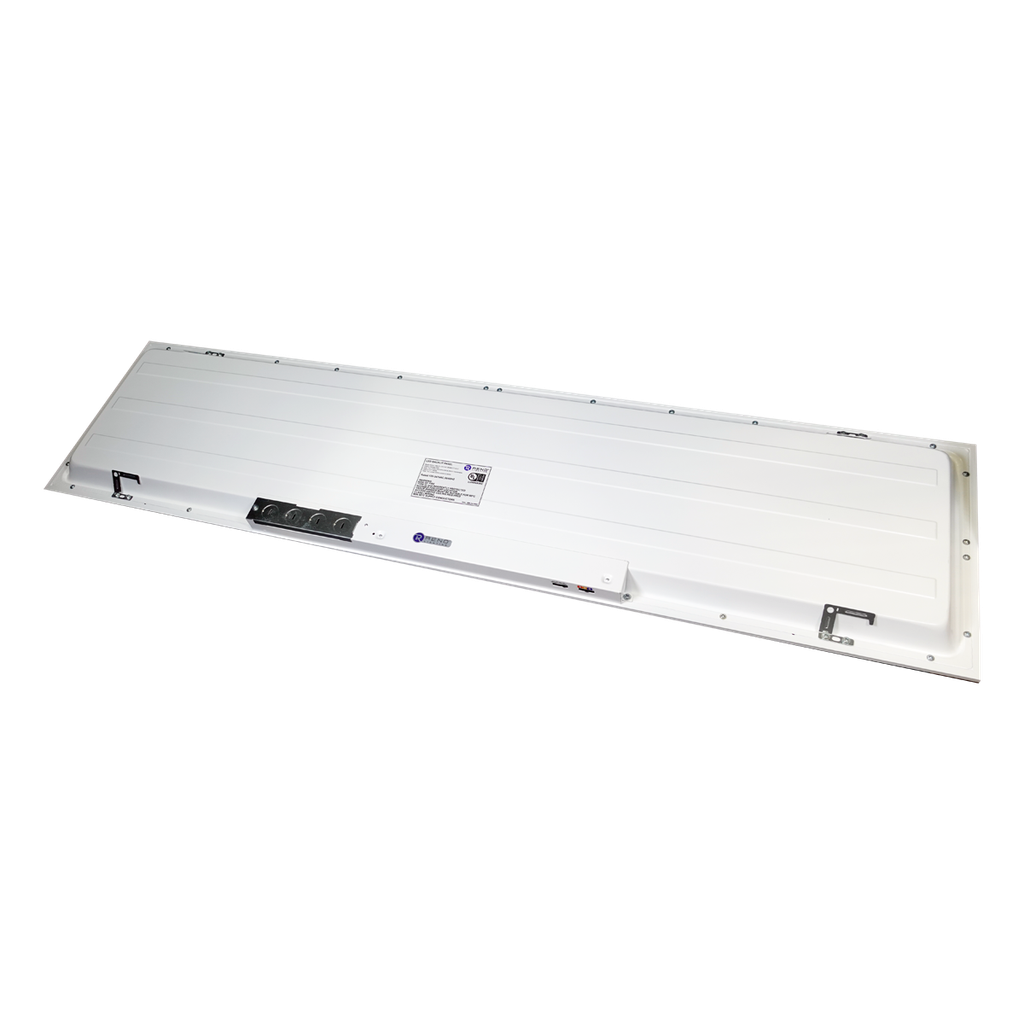

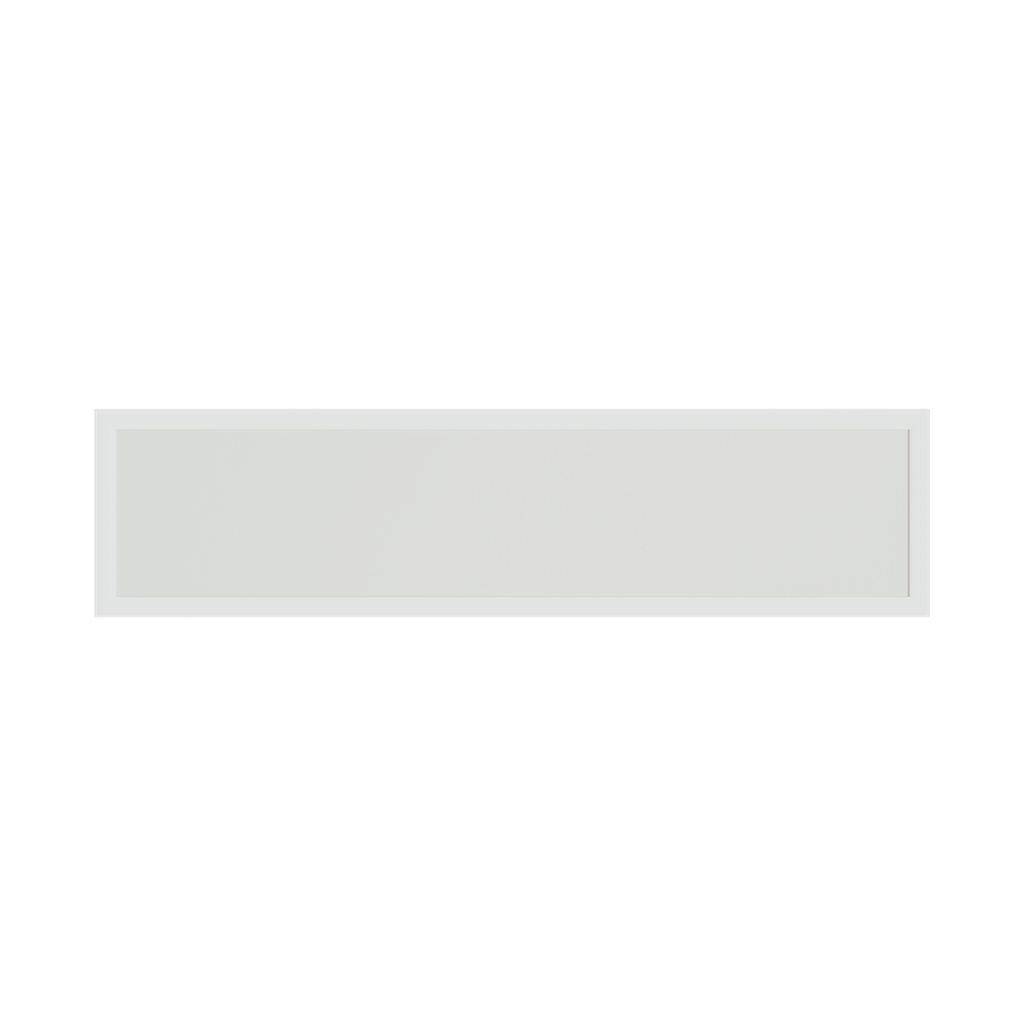

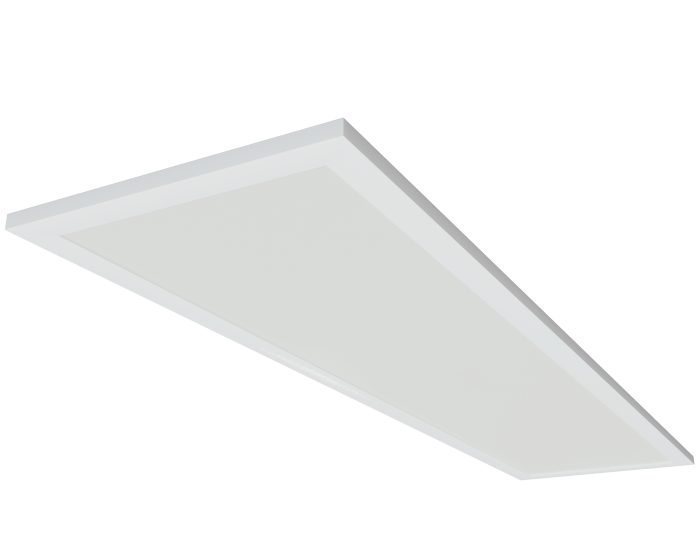

LED PANEL 1X4 Back-Lit Panel | 20/25/30/35W Selectable Wattage | 3500/4000/5000K Selectable CCT | Up to 131 Lm/W | 120-347V |
Specifications
| Reno Collection |
ECO
|
| MOL |
1x4
|
| Power (W) |
20/25/30/35W
|
| Efficacy |
up to 131lm/W
|
| Lumens |
2620/3275/3930/4585 lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
125°
|
| Operating Temperature |
-4°F to +122°F (-20°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
50,000hrs
|
| Finish |
White
|
| DLC Premium: Luminaires for Ambient Lighting |
S-82HGSN
|
| DLC Premium: Low-Bay Luminaires |
S-Q2DM0Y
|
| Box QTY |
2
|
| Shipping Dimensions |
49" x 12.5" x 3" - 7lbs
|
Specifications
| Reno Collection |
ECO
|
| MOL |
1x4
|
| Power (W) |
20/25/30/35W
|
| Efficacy |
up to 131lm/W
|
| Lumens |
2620/3275/3930/4585 lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
125°
|
| Operating Temperature |
-4°F to +122°F (-20°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
50,000hrs
|
| Finish |
White
|
| DLC Premium: Luminaires for Ambient Lighting |
S-82HGSN
|
| DLC Premium: Low-Bay Luminaires |
S-Q2DM0Y
|
| Box QTY |
2
|
| Shipping Dimensions |
49" x 12.5" x 3" - 7lbs
|
