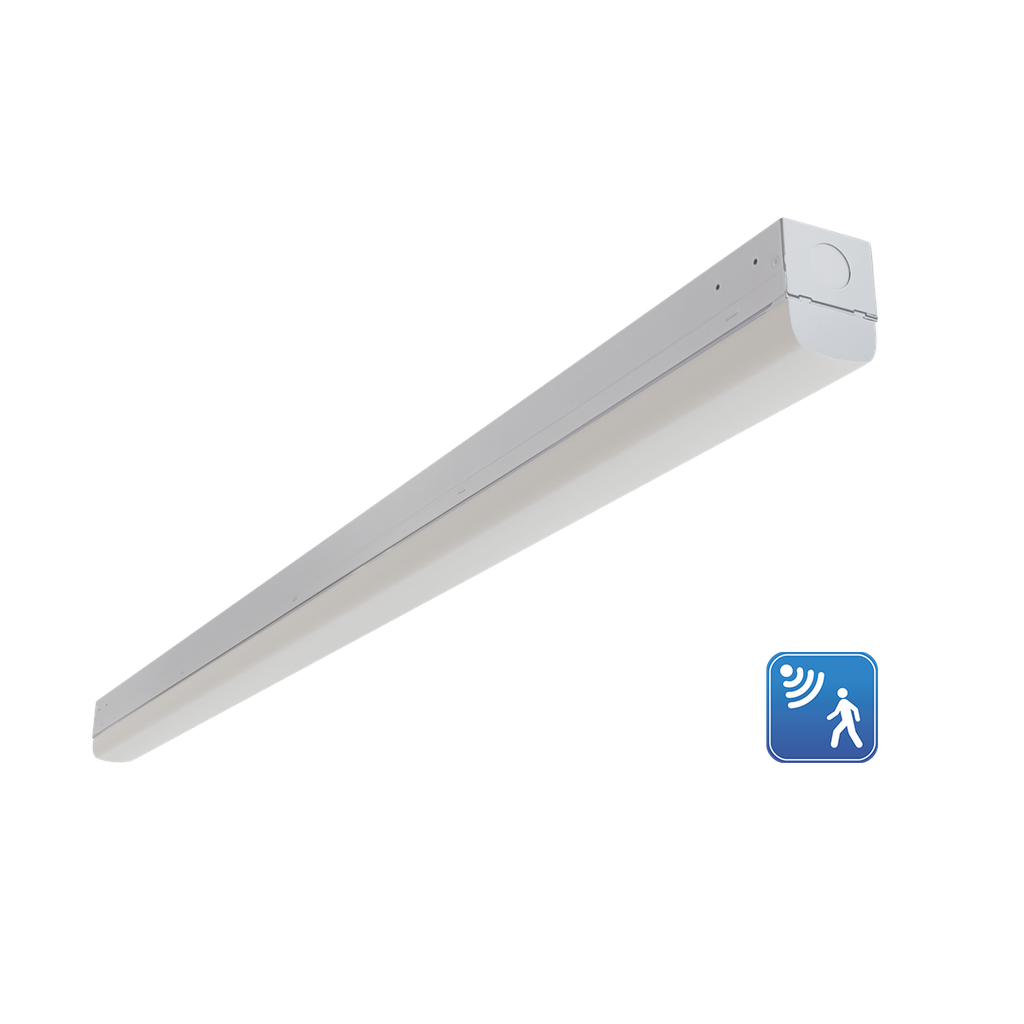

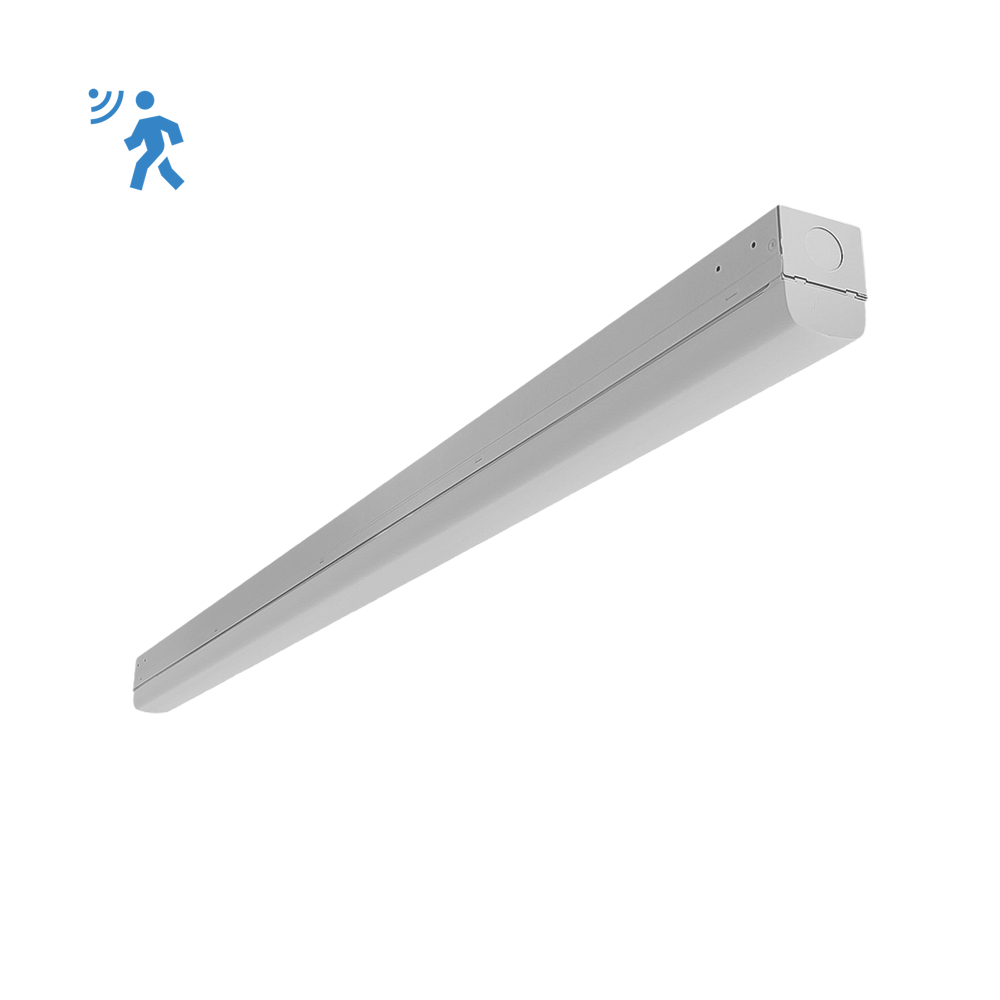

RENO-LSN4-DV-MW-MCCT-ECO-MS
RENO-LSN4-DV-MW-MCCT-ECO-MS
ORDER NO #
R33024
SERIES:
SABRE SERIES
Linear LED Strip ECO with Integrated Microwave Sensor | 4FT | 3500/4000/5000K Selectable CCT | 120-347V | 20/30/40W Selectable Wattage | 0-10V Dimming | Up to 136lm/W | Factory Default Setting: Dim to 30% after 5 minutes **Must purchase a remote to configure sensor settings**
REBATE
Specifications
| Reno Collection |
ECO
|
| Size |
4ft
|
| Power (W) |
20/30/40W
|
| Efficacy |
Up to 136lm/W
|
| Lumens |
2,720/4,050/5,360lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
70,000hrs
|
| Finish |
White
|
| DLC Standard: Direct Linear Ambient Luminaires |
P08KVTQ4
|
| DLC Standard: Low-Bay Luminaires |
P7PE6VBL
|
| DLC Premium: Stairwell and Passageway |
S-M9R7UG
|
| Box QTY |
9
|
| Shipping Dimensions |
Master Case: 49" x 8" x 9" - 20lbs Single box: 48.5" x 2.5" x 3" - 2lbs
|
Specifications
| Reno Collection |
ECO
|
| Size |
4ft
|
| Power (W) |
20/30/40W
|
| Efficacy |
Up to 136lm/W
|
| Lumens |
2,720/4,050/5,360lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
70,000hrs
|
| Finish |
White
|
| DLC Standard: Direct Linear Ambient Luminaires |
P08KVTQ4
|
| DLC Standard: Low-Bay Luminaires |
P7PE6VBL
|
| DLC Premium: Stairwell and Passageway |
S-M9R7UG
|
| Box QTY |
9
|
| Shipping Dimensions |
Master Case: 49" x 8" x 9" - 20lbs Single box: 48.5" x 2.5" x 3" - 2lbs
|
