RENO-LSN4-DV-MW-MCCT-MS
RENO-LSN4-DV-MW-MCCT-MS
ORDER NO #
R33020
SERIES:
SABRE SERIES

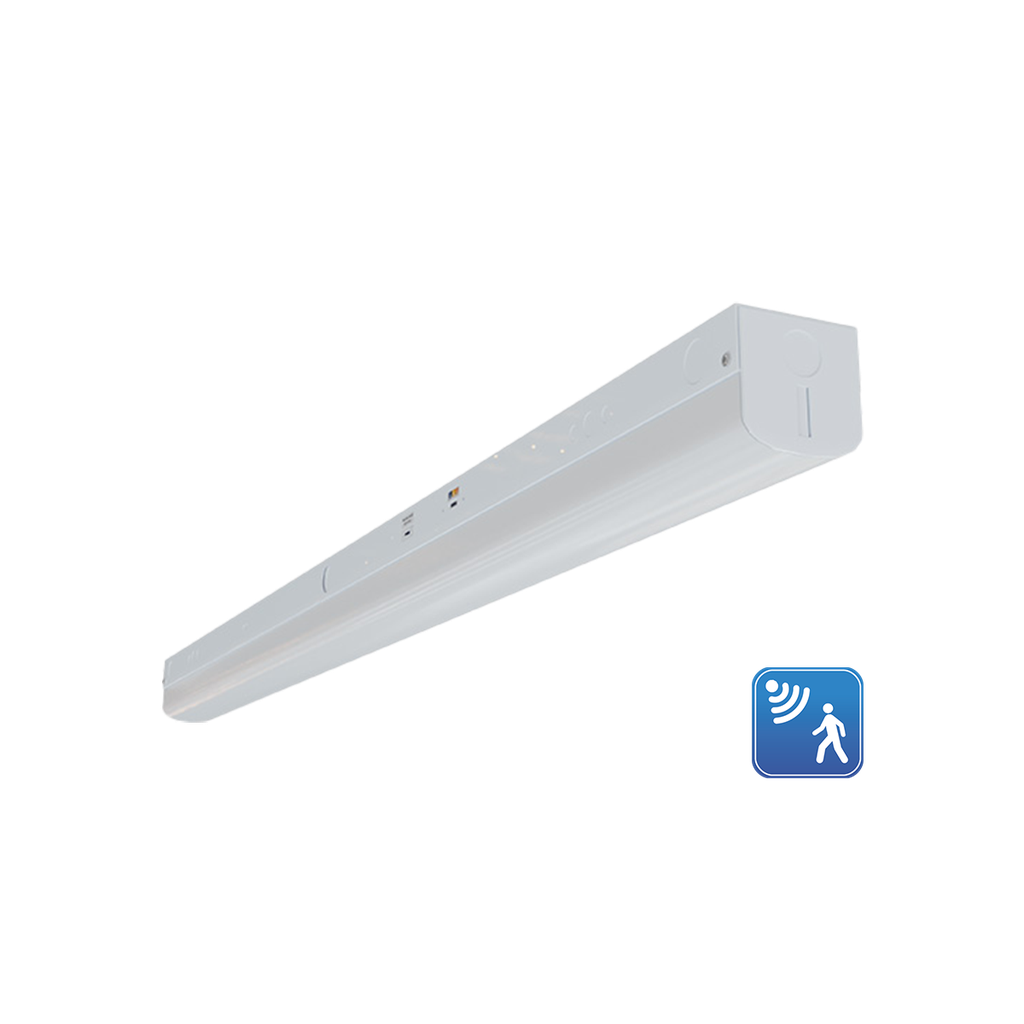

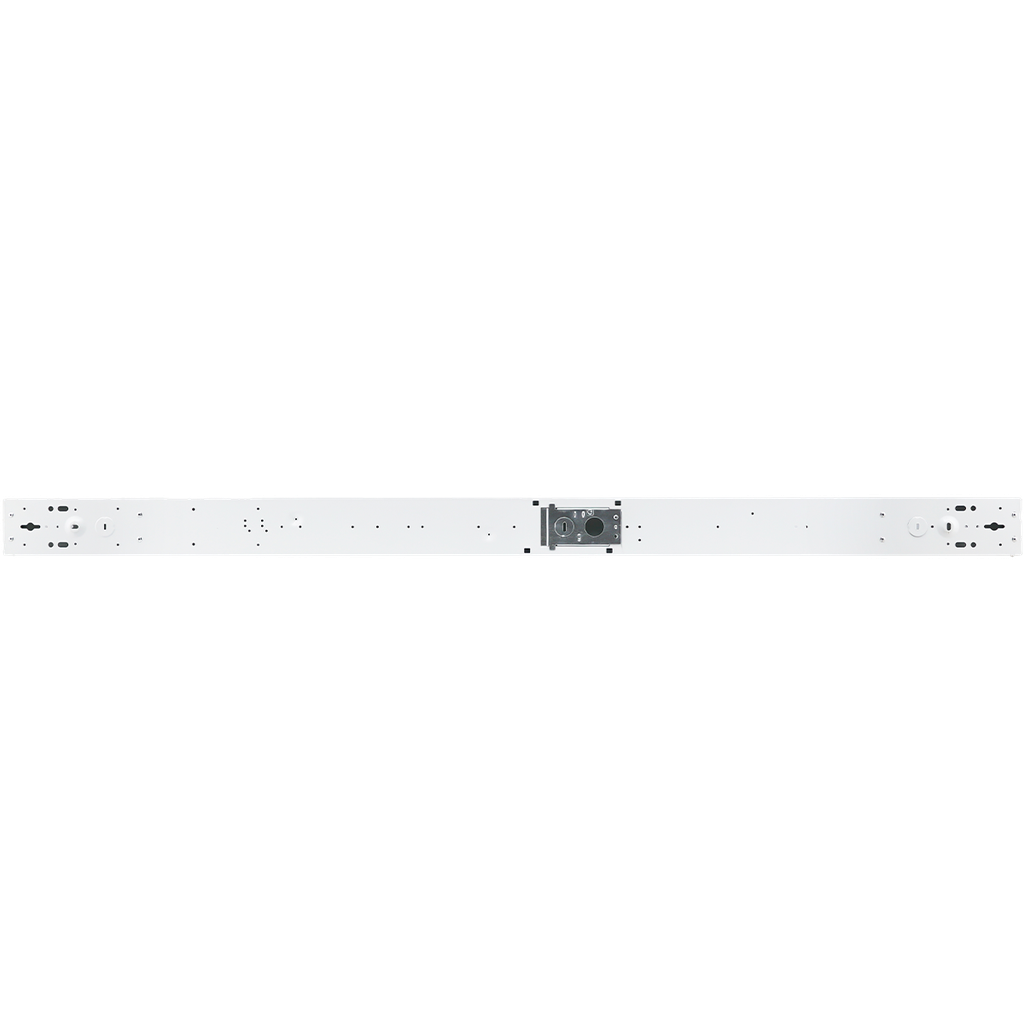

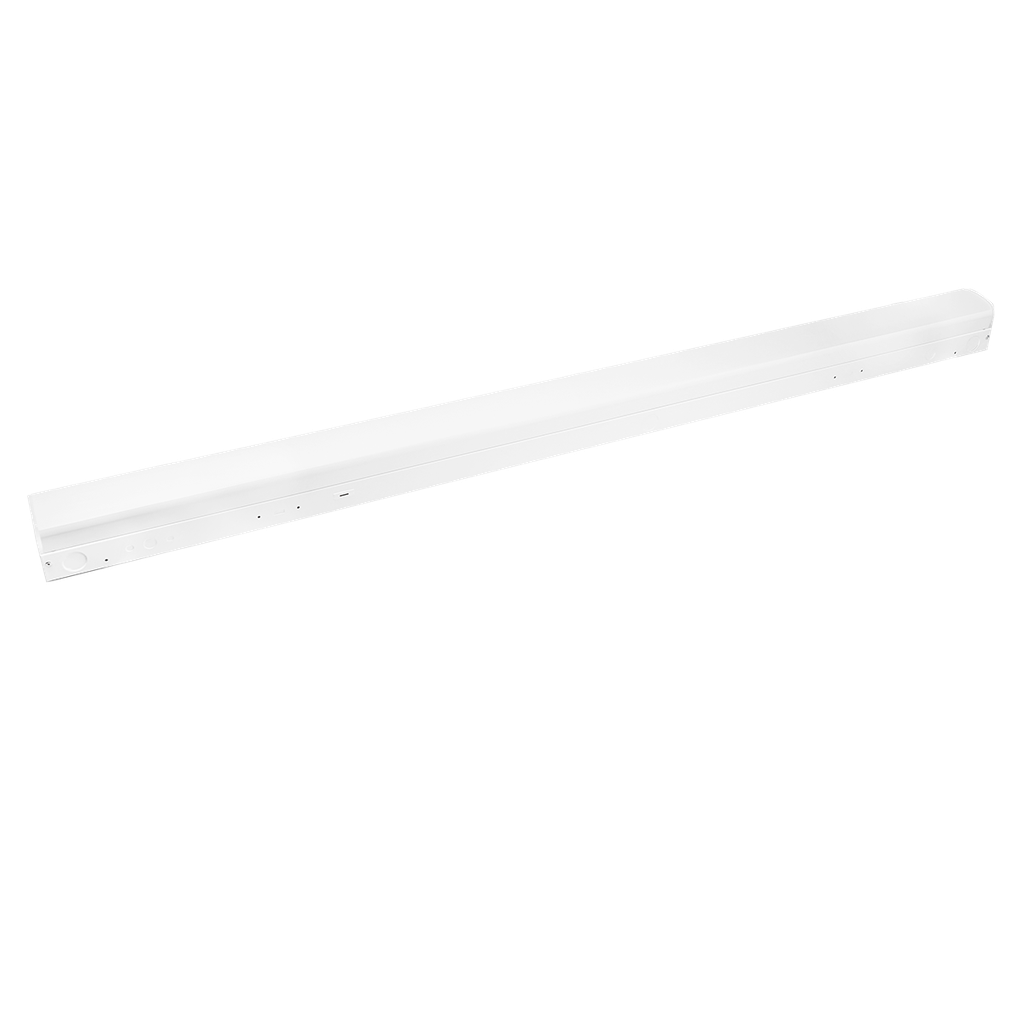

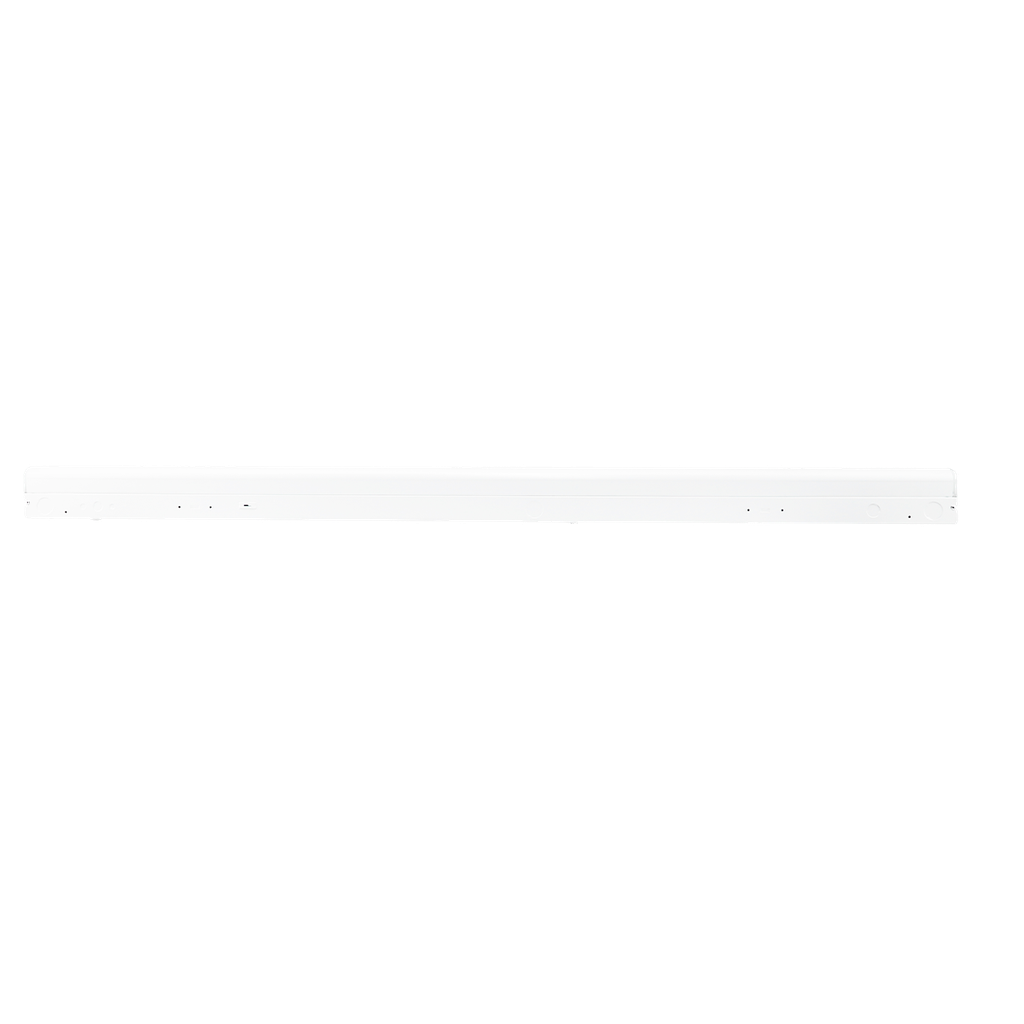

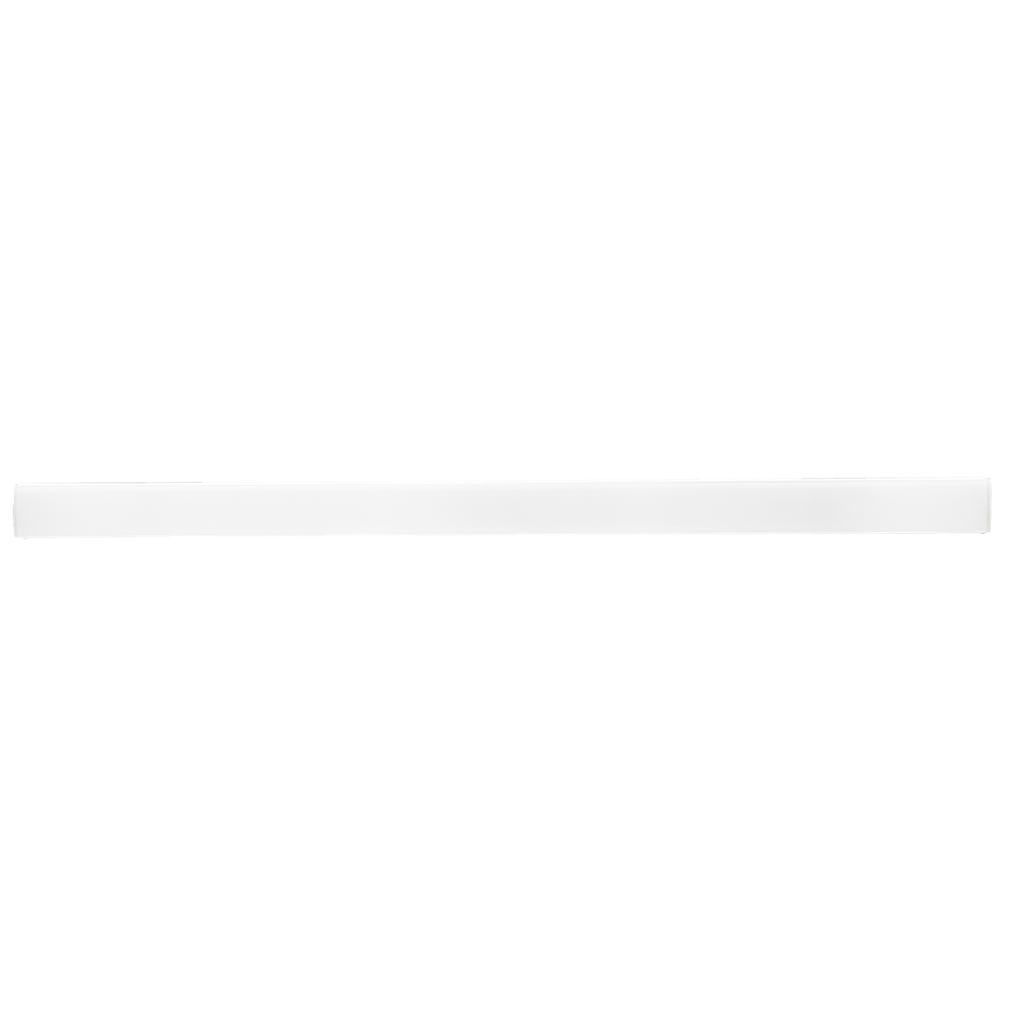

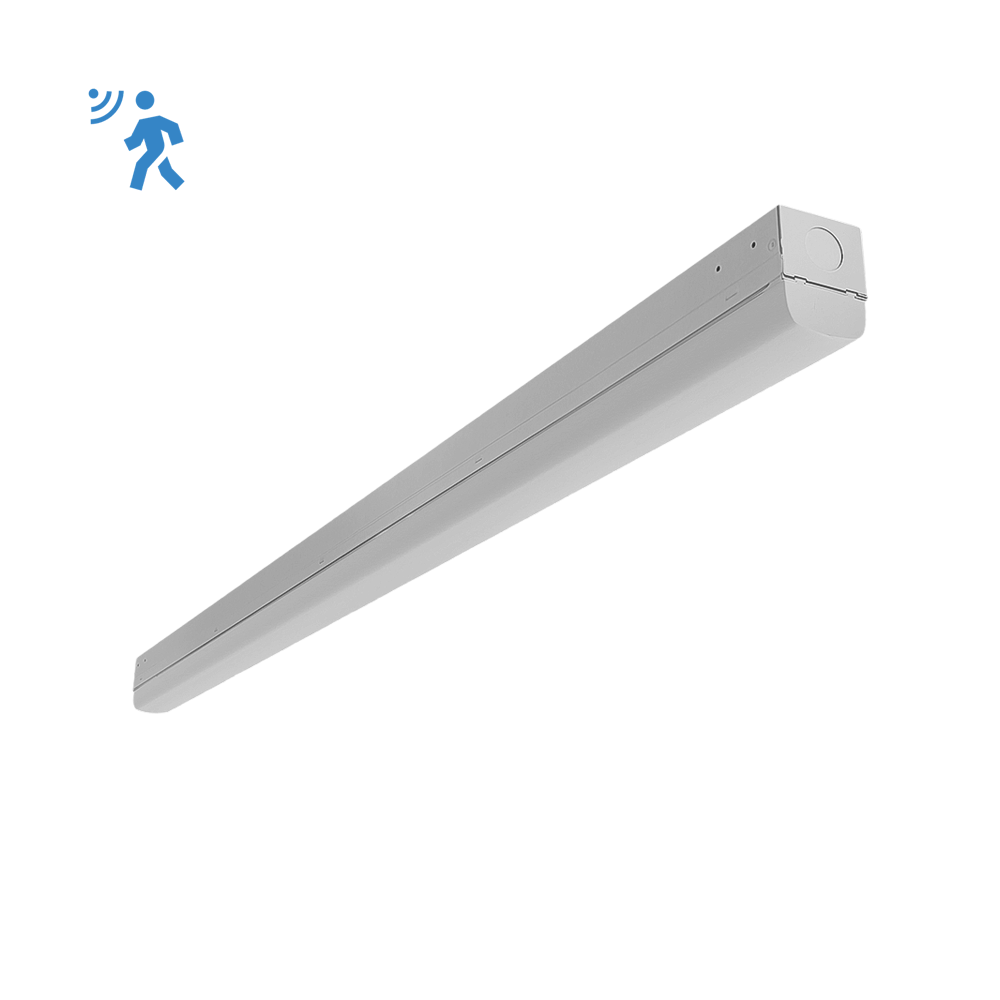

Linear LED Strip With Integrated Microwave Sensor | 4FT | 3500/4000/5000K Selectable CCT | 120-347V | 22/28/36/44W Selectable Wattage | 0-10V Dimming | Up to 173lm/W | Factory Default Setting: Dim to 30% after 5 minutes **Must purchase a remote to configure sensor settings**
REBATE
Specifications
| Reno Collection |
PRIME
|
| Size |
4ft
|
| Power (W) |
22/28/36/44W
|
| Efficacy |
Up to 173lm/W
|
| Lumens |
3,806/4,816/6,156/7,480 lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
100,000hrs
|
| Finish |
White
|
| DLC Standard: Direct Linear Ambient Luminaires |
S-XJ5NO7
|
| DLC Standard: Low-Bay Luminaires |
S-CEJ1VP
|
| DLC Premium: Stairwell and Passageway |
S-SHT7R4
|
| Box QTY |
4
|
| Shipping Dimensions |
Master Case: 48.5" x 6.5" x 7" - 13lbs Single Box: 47.5" x 3" x 3" - 3lbs
|
Specifications
| Reno Collection |
PRIME
|
| Size |
4ft
|
| Power (W) |
22/28/36/44W
|
| Efficacy |
Up to 173lm/W
|
| Lumens |
3,806/4,816/6,156/7,480 lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
100,000hrs
|
| Finish |
White
|
| DLC Standard: Direct Linear Ambient Luminaires |
S-XJ5NO7
|
| DLC Standard: Low-Bay Luminaires |
S-CEJ1VP
|
| DLC Premium: Stairwell and Passageway |
S-SHT7R4
|
| Box QTY |
4
|
| Shipping Dimensions |
Master Case: 48.5" x 6.5" x 7" - 13lbs Single Box: 47.5" x 3" x 3" - 3lbs
|
