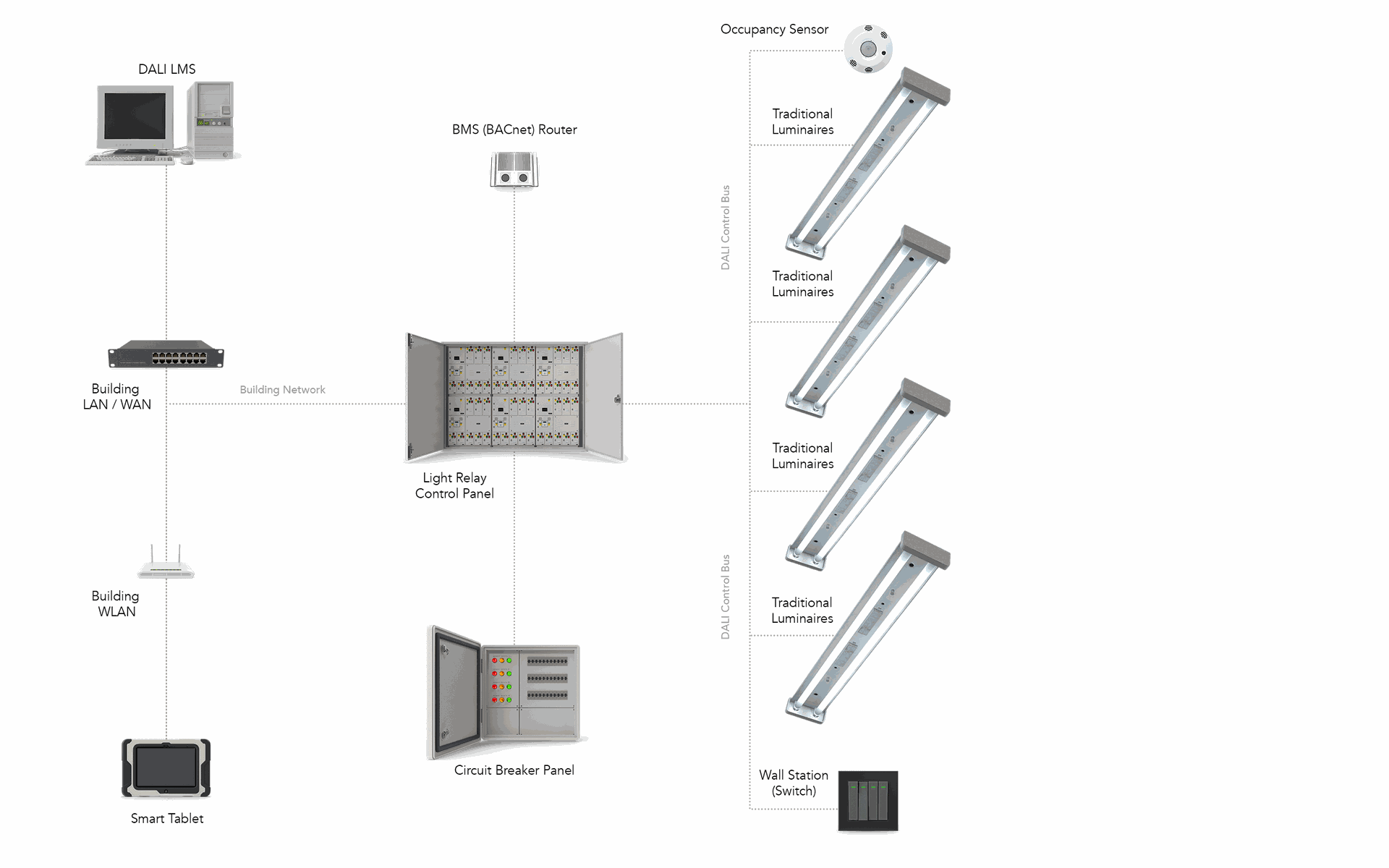

With the phasing out of fluorescent lamps in North America, many building operators are looking to convert existing Digital Addressable Lighting Interface (DALI) system-controlled fluorescent installations to LED technology.
The challenge is to find a cost-effective way to accomplish such a retrofit without having to upgrade the Lighting Management System, change the fixture housing, and be forced to pay the high costs of a brand-specific solution.
Avoid waste by keeping the existing luminaire
Changes to existing LMS installation not required
Recycle and reduce electronic and plastic waste
Switching to modern LED Technology
Energy savings through dimmability
Optimized savings with a DALI LMS
Your customers have invested tens of thousands into their DALI LMS. Help them retrofit to LED technology by replacing only what's necessary.
Avoid waste by keeping the existing luminaire
Changes to existing LMS installation not required
Recycle and reduce electronic and plastic waste
Switching to modern LED Technology
Energy savings through dimmability
Optimized savings with a DALI LMS
Your customers have invested tens of thousands into their DALI LMS. Help them retrofit to LED technology by replacing only what's necessary
ONE DRIVER FOR ALL
DALI DIMMABLE TYPE C LAMPS
Our DALI LED DRIVER is designed with adjustable output currents controlled by dipswitch to work with 1, 2, 3, and 4-lamp fixture configurations (350-1200 mA), making it the only driver you need to retrofit T5 & T8 Type C LED lamps with a DALI LIGHTING MANAGEMENT SYSTEM (LMS).
Don’t have existing Type C LED lamps? Complete the solution with RENO Type C lamps, designed to work effortlessly with our DALI LED DRIVER.
ONE DRIVER FOR ALL
DALI DIMMABLE TYPE C LAMPS
Our DALI LED DRIVER is designed with adjustable output currents controlled by dipswitch to work with 1, 2, 3, and 4-lamp fixture configurations (350-1200 mA), making it the only driver you need to retrofit T5 & T8 Type C LED lamps with a DALI LIGHTING MANAGEMENT SYSTEM (LMS).
Don’t have existing Type C LED lamps? Complete the solution with RENO Type C lamps, designed to work effortlessly with our DALI LED DRIVER.

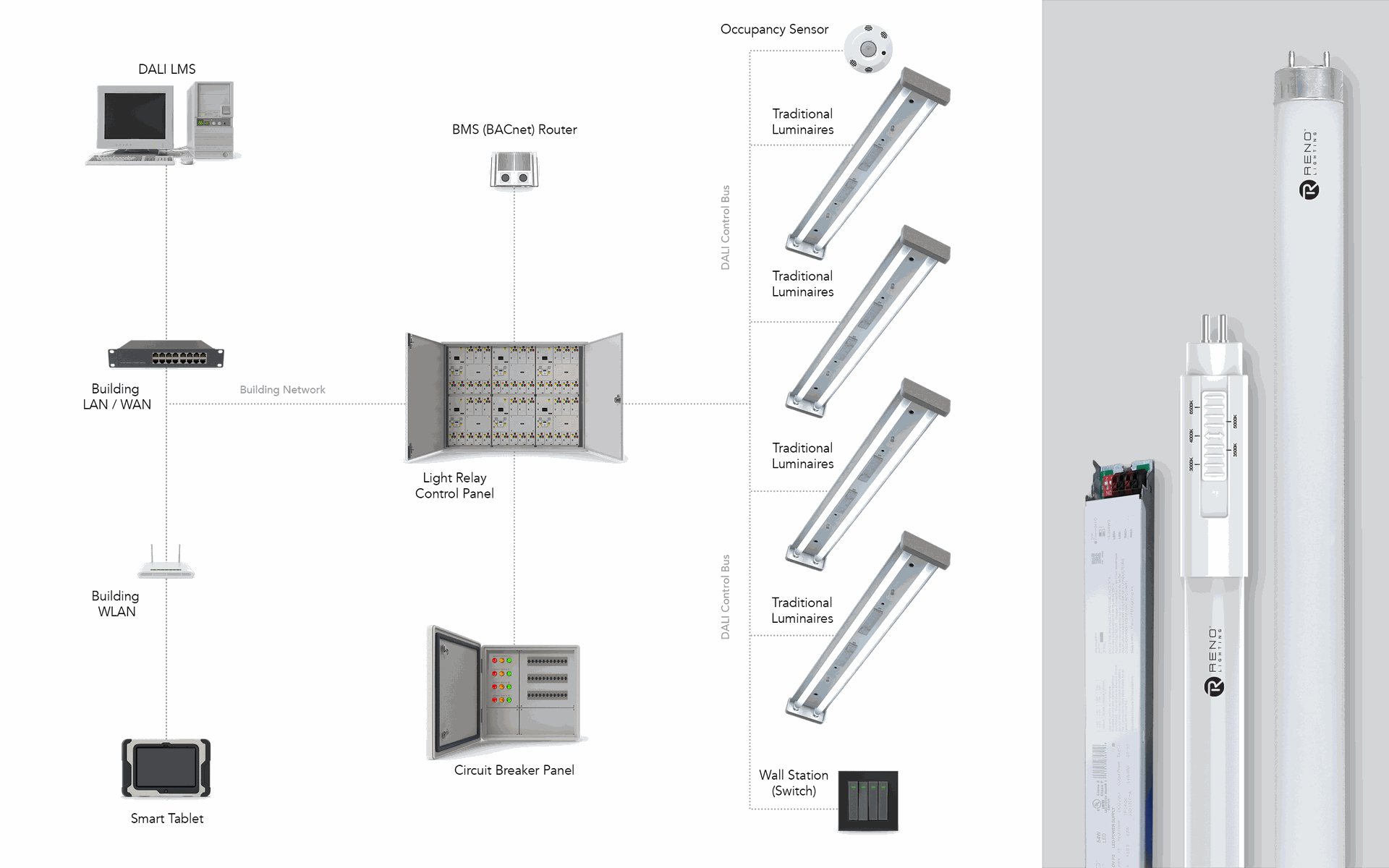

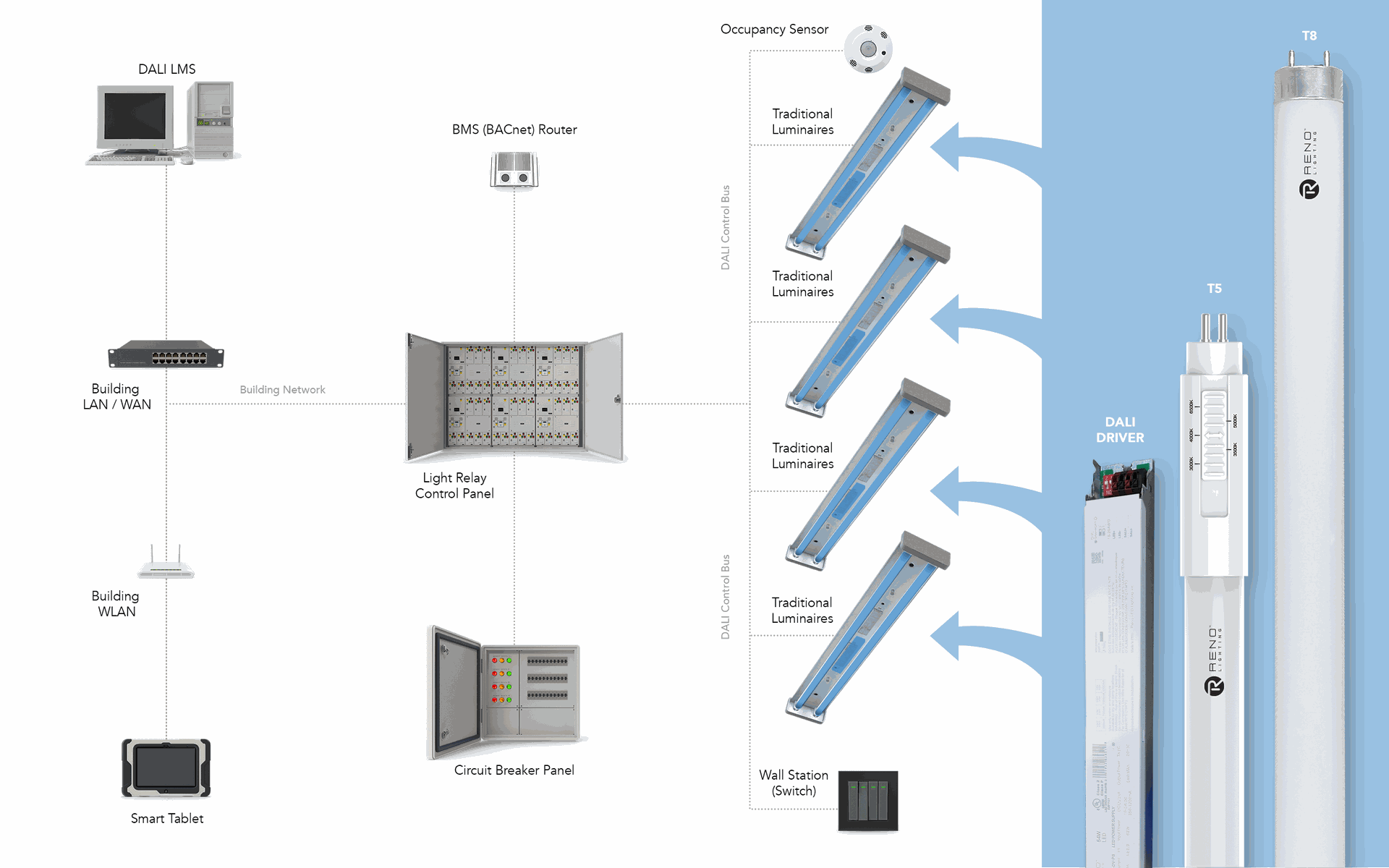

A SIMPLE DALI RETROFIT SOLUTION

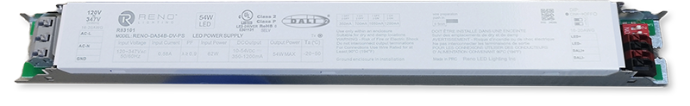

DALI DIMMABLE
LED DRIVER
DALI-1 & DALI-2 interface for dimming and sensors operations

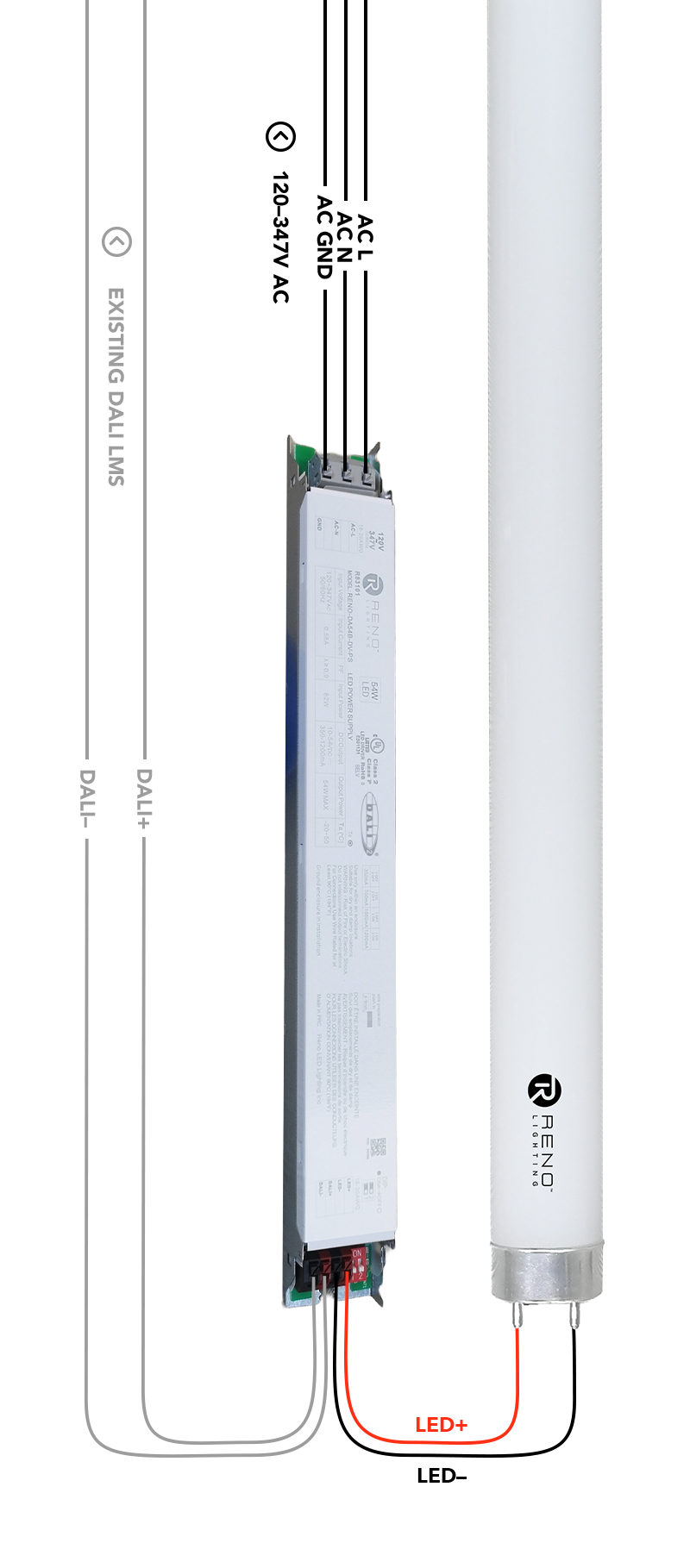

Multi-watt constant current SELV Driver directly replaces the fixture’s existing ballast

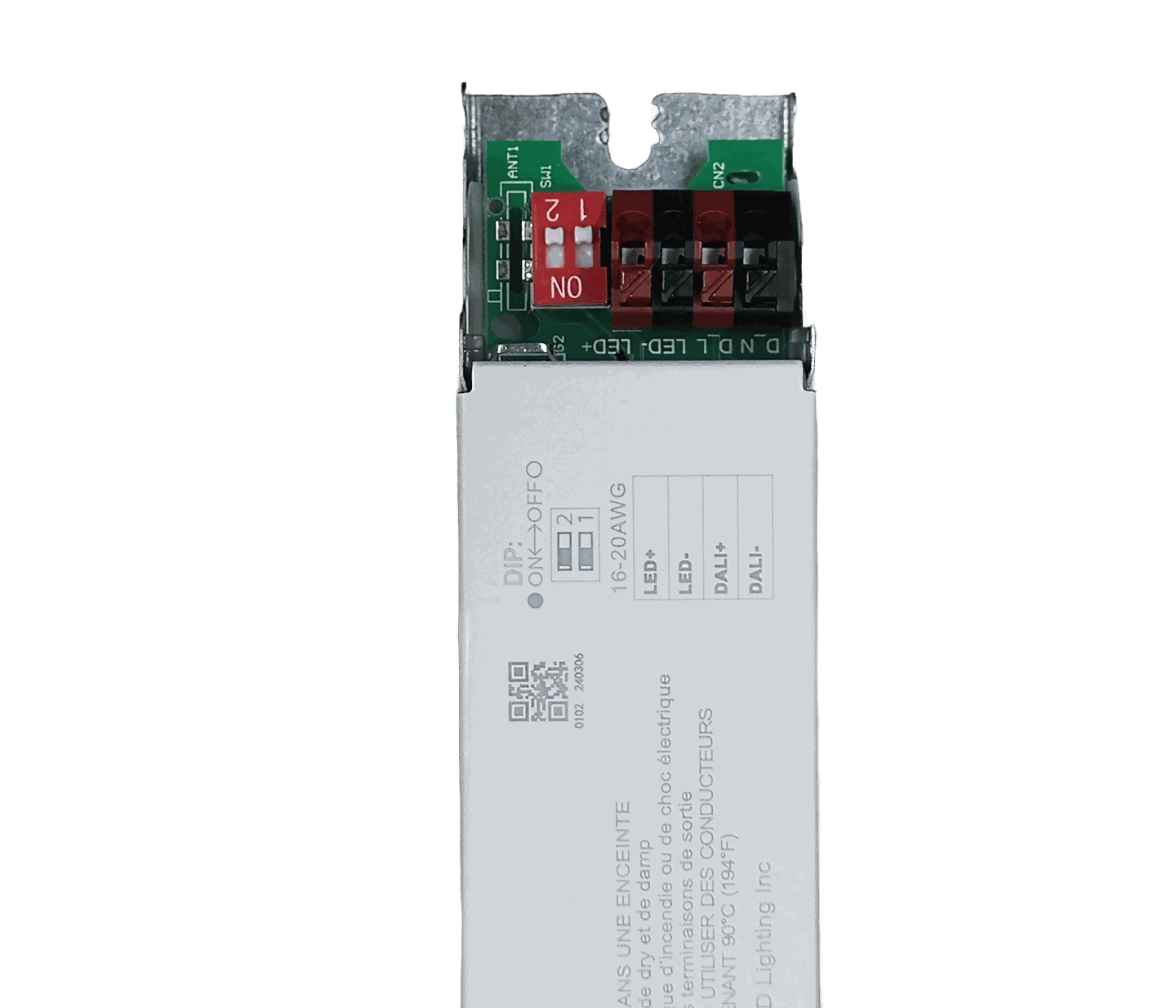

Designed with adjustable output currents controlled by dipswitch to work with 1, 2, 3, and 4-lamp fixture configurations (350-1200 mA)
120-347V input voltage (no step-down transformer required)
Dimming Range from 1 - 100%
Ambient Temperature ranges from -40°F - +185°F (-40°C - 85°C)
5 Year Warranty

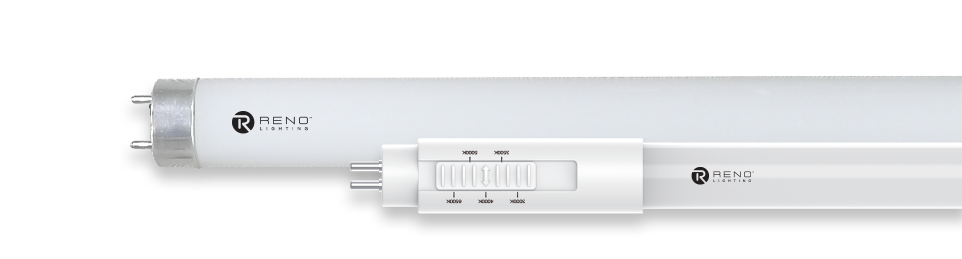

DALI DIMMABLE
TYPE C LED LAMPS
Available in T5 (4ft) and T8 (4ft)
Available in T5 (4ft) and T8 (4ft)

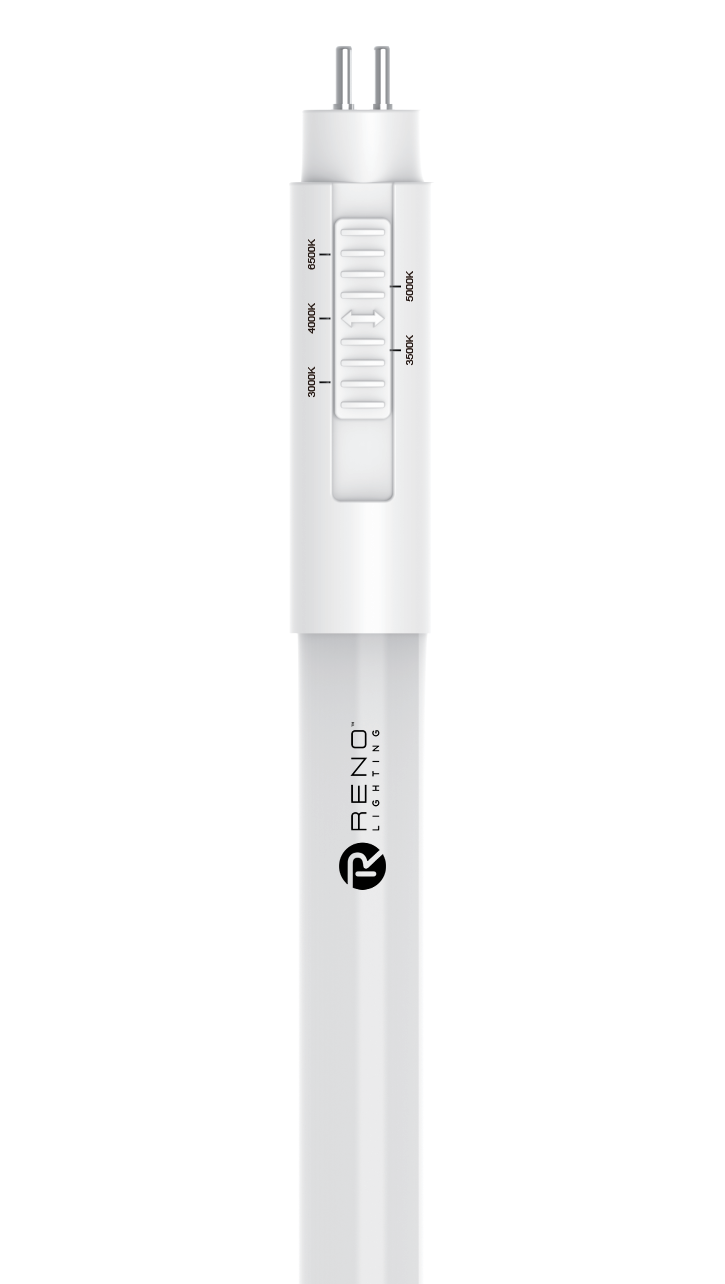

T5 models offered with CCT Select (30/35/40/50/6500K)
T8 models available in static CCT (3000K, 3500K, 4000K, 5000K, or 6500K)
Up to 3,400 lm (T5) and 2,200 lm (T8)
138 lm/W (T5) and 147 lm/W (T8)
Glass tube with shatterproof PET coating
5 Year Warranty
5 Year Warranty

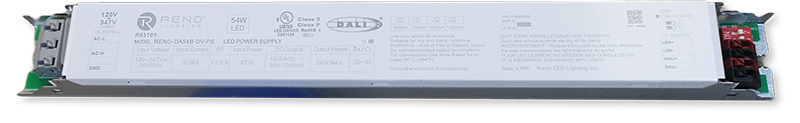

DALI DIMMABLE
LED DRIVER
DALI-1 & DALI-2 interface for dimming and sensors operations
Multi-watt constant current SELV Driver directly replaces the fixture’s existing ballast
Designed with adjustable output currents controlled by dipswitch to work with 1, 2, 3, and 4-lamp fixture configurations (350-1200 mA)
120-347V input voltage (no step-down transformer required)
Dimming Range from 1 - 100%
Ambient Temperature ranges from -40°F - +185°F (-40°C - 85°C)
5 Year Warranty

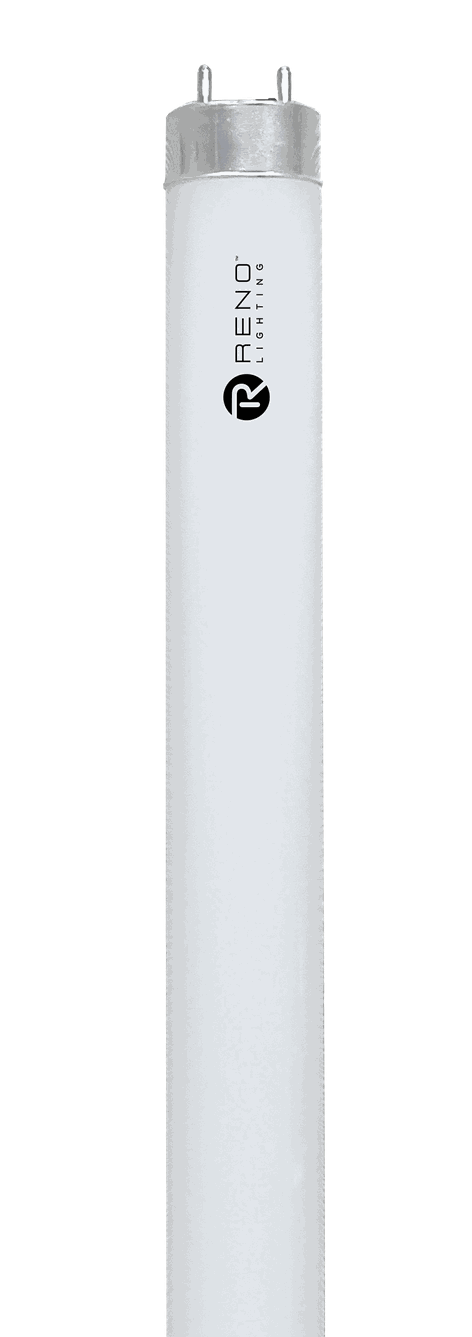

DALI DIMMABLE
TYPE C LED LAMPS
Available in T5 (4ft) and T8 (4ft)
T5 models offered with CCT Select (30/35/40/50/6500K)
T8 models available in static CCT (3000K, 3500K, 4000K, 5000K, or 6500K)
Up to 3,400 lm (T5) and 2,200 lm (T8)
138 lm/W (T5) and 147 lm/W (T8)
Glass tube with shatterproof PET coating
5 Year Warranty
POPULAR DALI LMS APPLICATIONS
POPULAR DALI LMS APPLICATIONS

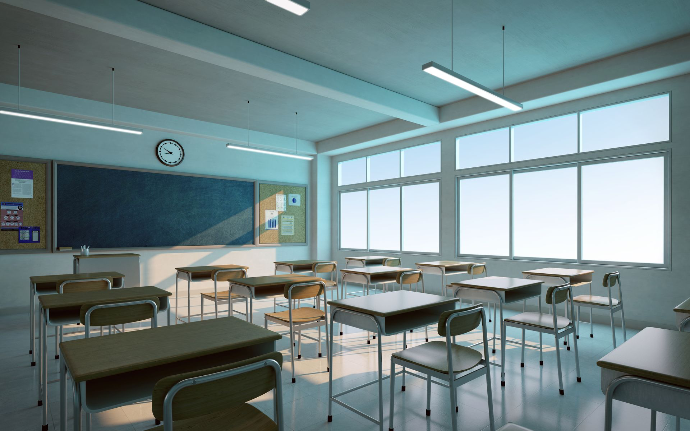

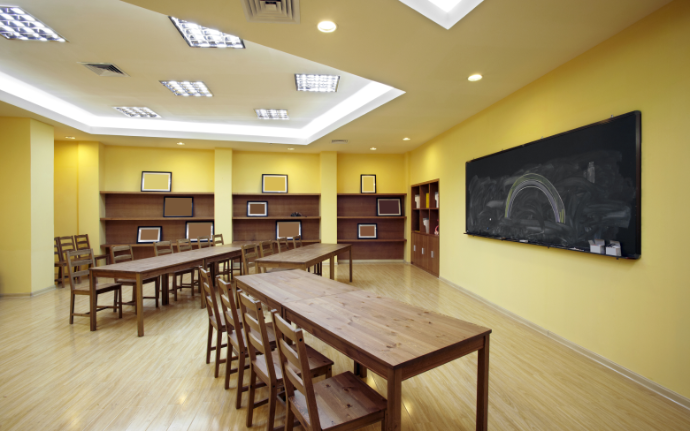

SCHOOLS

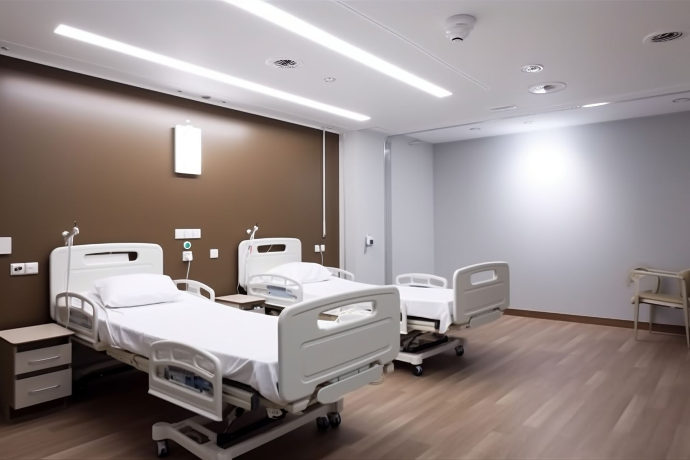

HOSPITALS

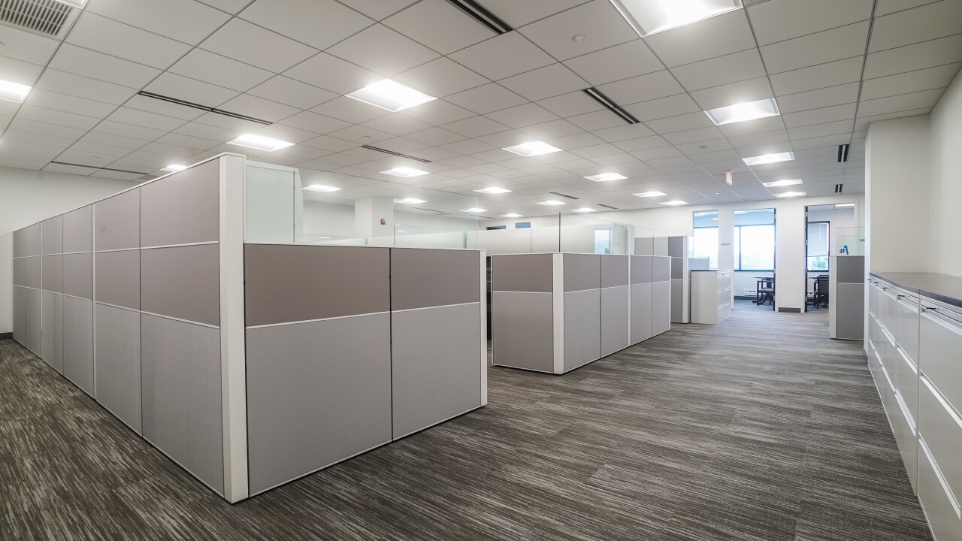

OFFICES
INSTITUTIONS
SCHOOLS
HOSPITALS
OFFICES
INSTITUTIONS
