HALO SERIES
ARCHITECTURAL
POST TOP FIXTURES
Post Top architectural lighting to shape your
vision for outdoor lighting.
A BEACON TO
SCULPT YOUR VISION
Frame a grand boulevard or accentuate the architecture of a modern plaza with tall beacons of light that shape and illuminate your vision for outdoor design.
URBAN A-SHAPE STYLE
Inspired by the classic silhouette of an A-shaped bulb, it combines timeless elegance with contemporary functionality. The rounded shape facilitates a uniform, 360-degree light distribution across all directions, while its familiar form blends classic charm with modern sophistication.
DOUBLE-ARM
STYLE
A distinctive design, featuring two outwardly extending arms that support the light source. The double-arm configuration allows for a wider and more uniform spread of light and its symmetry creates a statement piece that blends seamlessly with modern landscapes.
A BEACON TO
SCULPT YOUR VISION
Frame a grand boulevard or accentuate the architecture of a modern plaza with tall beacons of light that shape and illuminate your vision for outdoor design.
URBAN A-SHAPE STYLE
Inspired by the classic silhouette of an A-shaped bulb, it combines timeless elegance with contemporary functionality. The rounded shape facilitates a uniform, 360-degree light distribution across all directions, while its familiar form blends classic charm with modern sophistication.
DOUBLE-ARM
STYLE
A distinctive design, featuring two outwardly extending arms that support the light source. The double-arm configuration allows for a wider and more uniform spread of light and its symmetry creates a statement piece that blends seamlessly with modern landscapes.
AN ARCHITECTURAL STATEMENT FOR BOTH DAY & NIGHT
The Halo Series redefines outdoor lighting, blending modern elegance with functional brilliance to meet the needs of specifiers seeking versatile area and walkway solutions. Featuring two distinctive styles —Double-Arm and Urban A-Shape — this collection elevates the visual appeal of any space, serving as both an architectural feature by day and a beacon of illumination by night.
AN ARCHITECTURAL STATEMENT FOR BOTH DAY & NIGHT
The Halo Series redefines outdoor lighting, blending modern elegance with functional brilliance to meet the needs of specifiers seeking versatile area and walkway solutions. Featuring two distinctive styles —Double-Arm and Urban A-Shape — this collection elevates the visual appeal of any space, serving as both an architectural feature by day and a beacon of illumination by night.

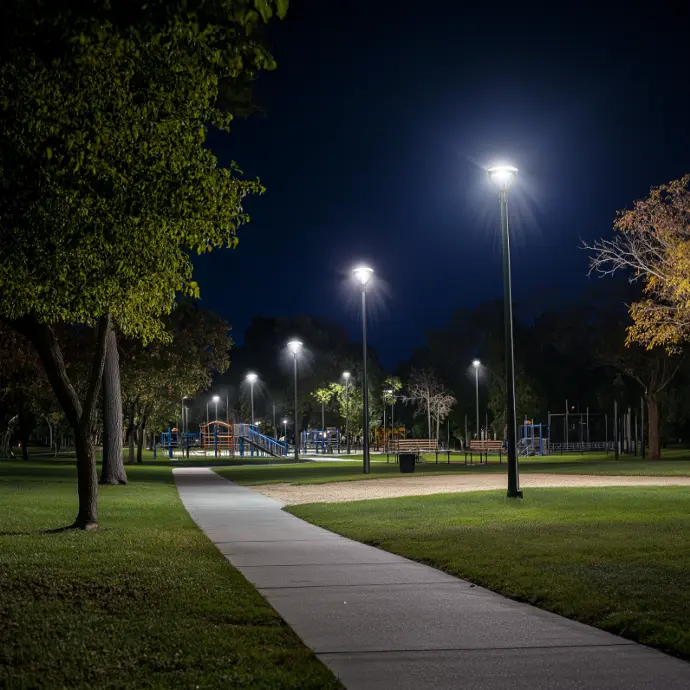

URBAN PARKS & RECREATION AREAS
Offer safety and visibility for evening activities while minimizing light pollution.

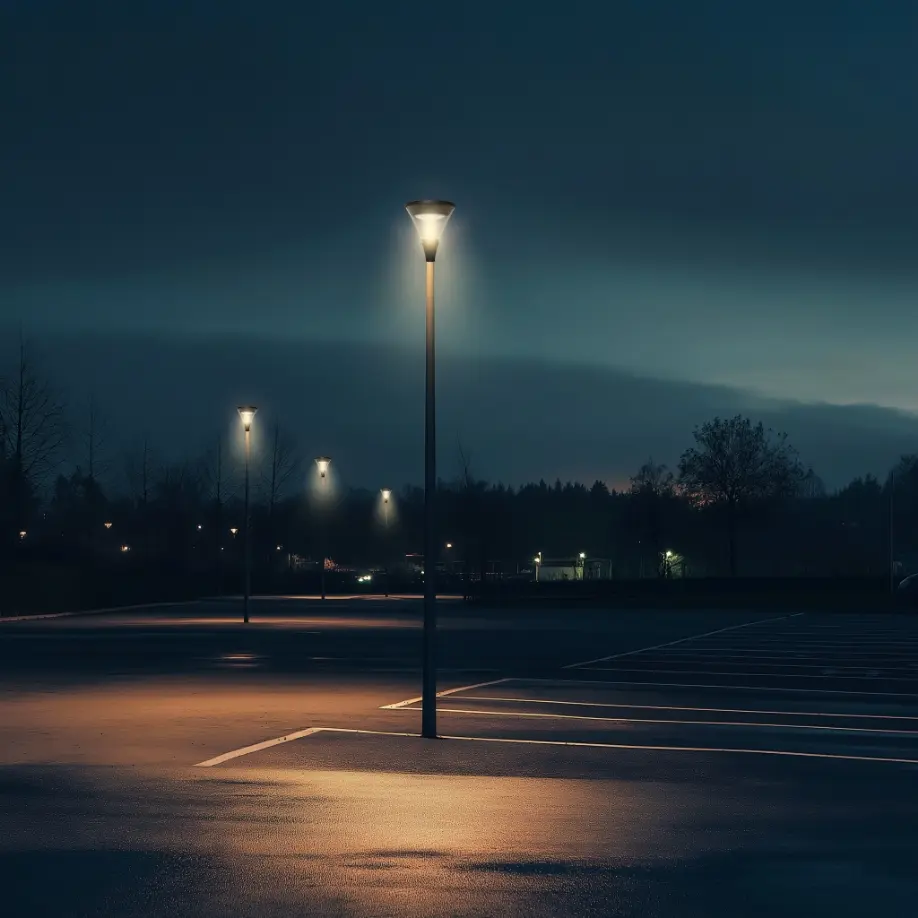

PARKING
AREAS
Ensure safety in parking areas such as those for retail outlets or apartment complexes.

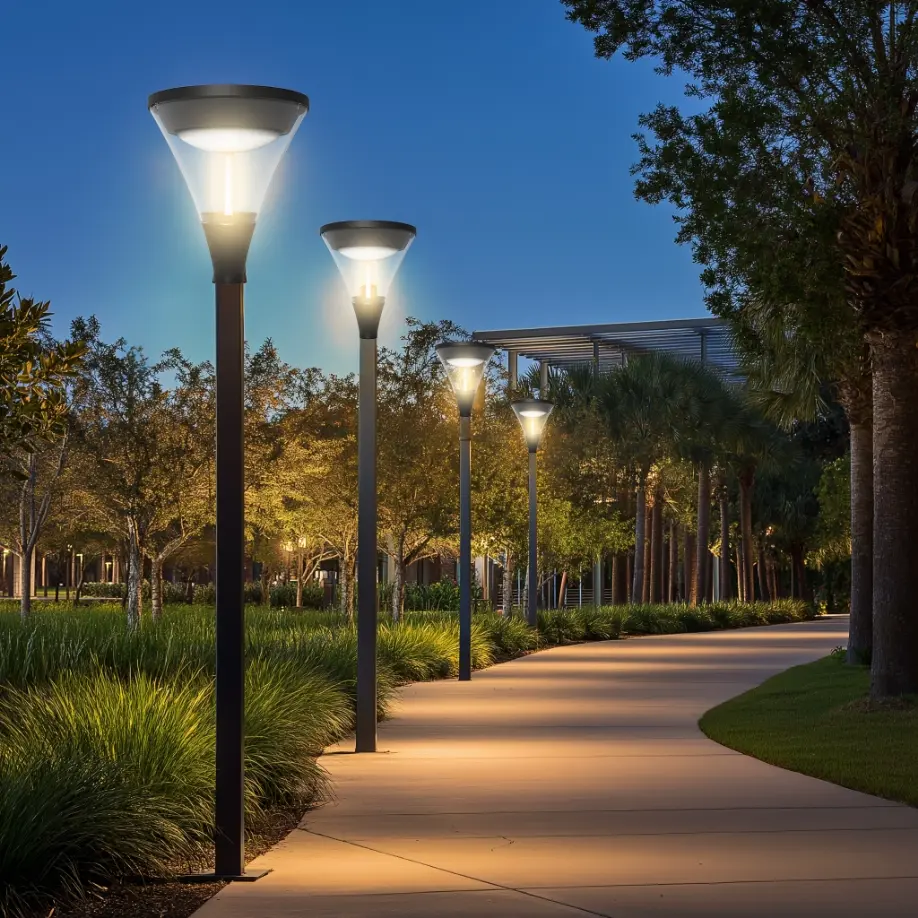

PATHWAY
LIGHTING
Illuminate walking paths, trails, and sidewalks in both residential and commercial areas.
INDUSTRIAL & COMMERICAL CAMPUSES
Illuminate walkways and shared spaces while maintaining a modern, aesthetic look.
URBAN PARKS & RECREATION AREAS
Offer safety and visibility for evening activities while minimizing light pollution.
PARKING
AREAS
Ensure safety in parking areas such as those for retail outlets or apartment complexes.
PATHWAY
LIGHTING
Illuminate walking paths, trails, and sidewalks in both residential and commercial areas.
INDUSTRIAL & COMMERICAL CAMPUSES
Illuminate walkways and shared spaces while maintaining a modern, aesthetic look.
KEY FEATURES
Contemporary, architectural design
Rugged aluminum alloy housing
Dual Voltage 120-347V for a wide range of applications
Multi Power and Multi CCT features
Designed for -22°F to +122°F (-30°C to +50°C) operation
IP66 Rated, IK09 (Urban A-Shape models)
DarkSky Approved (Double-Arm models)
For post top installations using a Ø 2” 3/8 tenon
Available in Modern Black or White finish
Tenon adaptors available (custom colors also available)
KEY FEATURES
Contemporary, architectural design
Rugged aluminum alloy housing
Dual Voltage 120-347V for a wide range of applications
Multi Power and Multi CCT features
Designed for -22°F to +122°F (-30°C to +50°C) operation
IP66 Rated, IK09 (Urban A-Shape models)
DarkSky Approved (Double-Arm models)
For post top installations using a Ø 2” 3/8 tenon
Available in Modern Black or White finish
Tenon adaptors available (custom colors also available)
DOUBLE-ARM POST TOPS
Order #
Model Number
RENO-PT-DV-MW-MCCT-R1
RENO-PT-DV-MW-MCCT-R1-WH
RENO-PT-DV-MW-MCCT-R2
RENO-PT-DV-MW-MCCT-R2-WH
RENO-PT-DV-MW-MCCT-R3
Voltage
120-347V
120-347V
120-347V
120-347V
120-347V
Wattage
40/50/60W
40/50/60W
60/80/100W
60/80/100W
120/135/150W
Lumens
CCT
30/40/5000K
30/40/5000K
30/40/5000K
30/40/5000K
30/40/5000K
up to 7,800 lm
up to 7,800 lm
up to 13,000 lm
up to 13,000 lm
up to 19,500 lm
Finish
Black
White
Black
White
Black
DOUBLE-ARM POST TOPS
Order #
Model Number
Voltage
Wattage
Lumens
CCT
Finish
120-347V
120-347V
18/30/45/60W 18/30/45/60W
up to 8,700 lm
up to 8,700 lm
30/40/5000K
30/40/5000K
Black
White
DOUBLE-ARM POST TOPS
Order #
Model Number
RENO-PT-DV-MW-MCCT-R1
RENO-PT-DV-MW-MCCT-R1-WH
RENO-PT-DV-MW-MCCT-R2
RENO-PT-DV-MW-MCCT-R2-WH
RENO-PT-DV-MW-MCCT-R3
Voltage
120-347V
120-347V
120-347V
120-347V
120-347V
Wattage
40/50/60W
40/50/60W
60/80/100W
60/80/100W
120/135/150W
Lumens
CCT
30/40/5000K
30/40/5000K
30/40/5000K
30/40/5000K
30/40/5000K
up to 7,800 lm
up to 7,800 lm
up to 13,000 lm
up to 13,000 lm
up to 19,500 lm
Finish
Black
White
Black
White
Black
DOUBLE-ARM POST TOPS
Order #
Model Number
Voltage
Wattage
Lumens
CCT
Finish
120-347V
120-347V
18/30/45/60W 18/30/45/60W
up to 8,700 lm
up to 8,700 lm
30/40/5000K
30/40/5000K
Black
White
MOUNTING ACCESSORIES
Order #
Model Number
Description
Double-Arm
Urban A-Shape
Compatible
Compatible
Compatible
Compatible
Compatible
Compatible
Tenon Adapter for 3 inch Round Poles
Tenon Adapter for 4 inch Round Poles
Tenon Adapter for 5 inch Round Poles
STANDALONE SENSORS
Order #
Model Number
Description
Photocell Sensor, 3.5mm Jack
Dimming Microwave Sensor, 3.5mm Jack
Photocell Sensor, NEMA 3-Pin Twist Lock
Double-Arm
Compatible
Compatible
-
Urban A-Shape
-
-
Compatible
RENO SMART NLC SYSTEM ACCESSORIES
Order #
Model Number
Description
Bluetooth 3.5mm Jack PIR Sensor (RENO SMART)
Bluetooth 3.5mm Jack Microwave Sensor (RENO SMART)
Ceiling Mounted Gateway (RENO SMART)
5-Key Reset Remote
Double-Arm
Compatible
Compatible
Compatible
Compatible
-
-
-
-
Urban A-Shape
MOUNTING ACCESSORIES
Order #
Model Number
Description
Double-Arm
Urban A-Shape
Compatible
Compatible
Compatible
Compatible
Compatible
Compatible
Tenon Adapter for 3 inch Round Poles
Tenon Adapter for 4 inch Round Poles
Tenon Adapter for 5 inch Round Poles
STANDALONE SENSORS
Order #
Model Number
Description
Photocell Sensor, 3.5mm Jack
Dimming Microwave Sensor, 3.5mm Jack
Photocell Sensor, NEMA 3-Pin Twist Lock
Double-Arm
Compatible
Compatible
-
Urban A-Shape
-
-
Compatible
RENO SMART NLC SYSTEM ACCESSORIES
Order #
Model Number
Description
Bluetooth 3.5mm Jack PIR Sensor (RENO SMART)
Bluetooth 3.5mm Jack Microwave Sensor (RENO SMART)
Ceiling Mounted Gateway (RENO SMART)
5-Key Reset Remote
Double-Arm
Compatible
Compatible
Compatible
Compatible
-
-
-
-
Urban A-Shape
