RENO-14BLPL-DV-MW-MCCT-MS
RENO-14BLPL-DV-MW-MCCT-MS
ORDER NO #
R35321
SERIES:
AIM

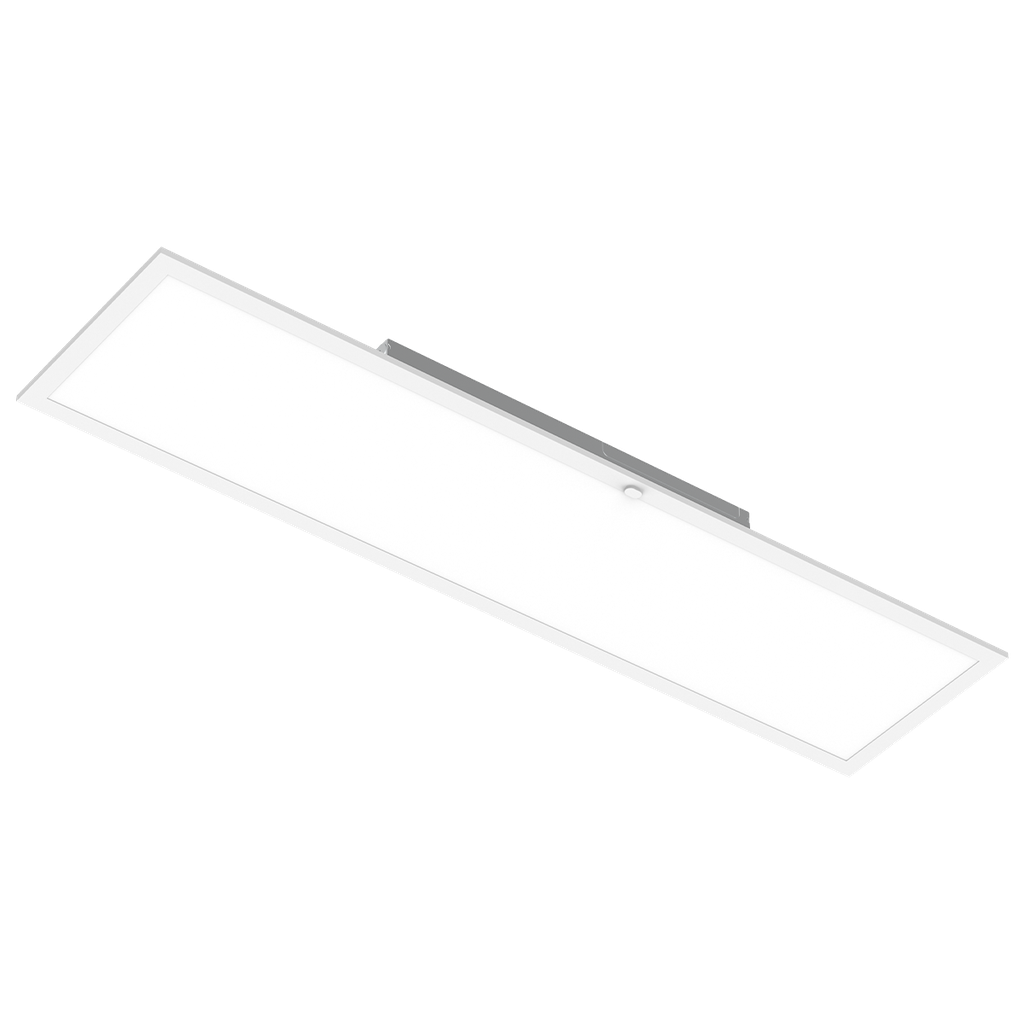

Sensor-Ready 1X4 Back-Lit Panel | **DOES NOT INCLUDE SENSOR** | Selectable Wattage 20/25/30/40W | Selectable CCT 3500/4000/5000K | Up to 133 lm/W | 120-347V |
TrueSpecifications
| Reno Collection |
PRIME
|
| Size |
1x4
|
| Power (W) |
20/25/30/40W
|
| Efficacy |
Up to 133lm/W
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
110°
|
| Operating Temperature |
-4°F to +122°F (-20°C to +50°C)
|
| Dimmable |
0-10V
|
| RENO Smart Compatible |
Yes
|
| Lifespan (Hours) |
100,000hrs
|
| Finish |
White
|
| DLC Premium: Direct Linear Ambient Luminaires |
S-SSP5BM
|
| DLC Premium: Low-Bay Luminaires |
S-THV8ND
|
| Box QTY |
2
|
| Shipping Dimensions |
49" x 12.5" x 3" - 8lbs
|
Specifications
| Reno Collection |
PRIME
|
| Size |
1x4
|
| Power (W) |
20/25/30/40W
|
| Efficacy |
Up to 133lm/W
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
110°
|
| Operating Temperature |
-4°F to +122°F (-20°C to +50°C)
|
| Dimmable |
0-10V
|
| RENO Smart Compatible |
Yes
|
| Lifespan (Hours) |
100,000hrs
|
| Finish |
White
|
| DLC Premium: Direct Linear Ambient Luminaires |
S-SSP5BM
|
| DLC Premium: Low-Bay Luminaires |
S-THV8ND
|
| Box QTY |
2
|
| Shipping Dimensions |
49" x 12.5" x 3" - 8lbs
|
